Specs at a glance
Max. measurement error: Mass flow (liquid): ±0.10 %
Volume flow (liquid): ±0.10 %
Density (liquid): ±0.0005 g/cm
Measuring range: 0 to 70 000 kg/h (0 to 2570 lb/min)
Medium temperature range: Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +205 °C (–58 to +401 °F)
Max. process pressure: PN 40, Class 150, 20K
Wetted materials: Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)
—————————————-
Field of application
Endress Hauser’s

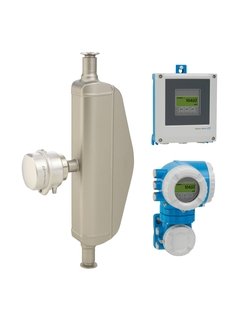

Promass P is the specialist for sterile processes in the life sciences industry. It is dedicated to biotech applications requiring highest compliance with guidelines and regulations. With its innovative remote transmitter Promass P 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables compliance and process safety at all times.
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications under sterile conditions in the life sciences industry
• ASME BPE, 3-A and EHEDG conform & low delta ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
