Specs at a glance
Accuracy: +/- 5 mm (0,2″)
Process temperature: -40…+60°C
(-40…+140°F)
Process pressure / max. overpressure limit: -1…3 bar (-14,50…43 psi)
Max. measurement distance: Standard: 8 m (26.2 ft)
With flooding protection tube: 12 m (39.4 ft)
Main wetted parts: PVDF, PBT
—————————————-
Field of application
Endress Hauser’s

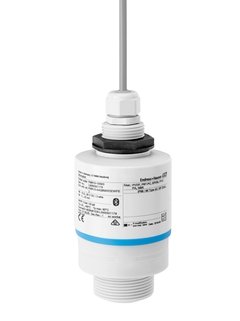

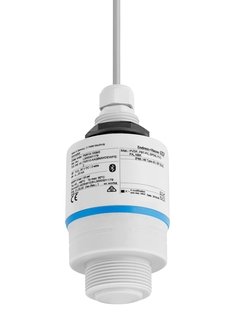

Micropilot FMR10 offers continuous non-contact level measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. FMR10 belongs to the first radars with Bluetooth® commissioning, operation and maintenance app. Signal curves can be shown via app on every Bluetooth®-enabled smartphone or tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.
• Process connections: Threads
• Process temperature: -40 to +60°C (-40 to +140°F)
• Process pressure: -1 to +3bar (-14.5 to +43psi)
• Maximum measuring range: up to 12m (39ft) with mounted flooding tube protection
• Accuracy: ±5mm (0.2″)
• Measuring frequency: 26GHz
