Specs at a glance
Accuracy: +/- 2 mm (0.08 in)
Process temperature: -40…+130 °C
(-40…+266 °F)
Process pressure / max. overpressure limit: Vacuum…3 bar
(Vacuum…43.5 psi)
Max. measurement distance: Standard: 30 m (98 ft)
With advanced dynamics: 40 m (131 ft)
Main wetted parts: PVDF, Viton, PP, PBT
—————————————-
Field of application
Endress Hauser’s

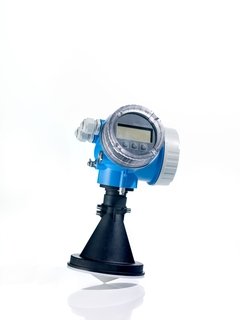

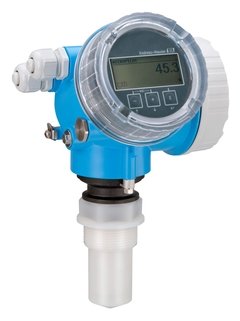

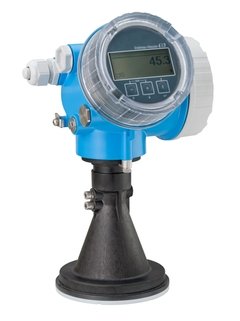

Micropilot FMR50 is the best choice in simple reservoir and storage applications as well as in utility processes. The FMR50 free space radar is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. Remote access with SmartBlue app via Bluetooth module is available.
• Process connections: Thread, mounting bracket or slip-on flange
• Temperature: -40 to +130°C (-40 to +266°F)
• Pressure: -1 to +3bar (-14.5 to +43.5psi)
• Maximum measuring range: 30m (98ft), 40m (131ft) for enhanced dynamics
• Accuracy: ±2mm
• K-band: 26GHz
• International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol
