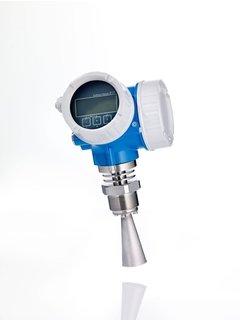

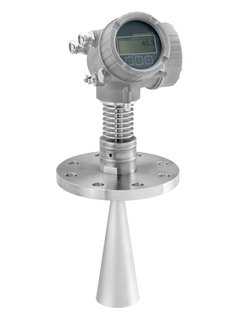

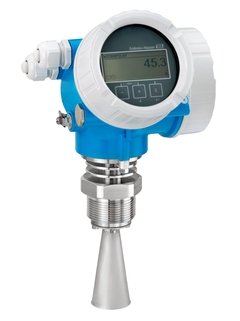

Radar measurement Time-of-Flight Micropilot FMR51

Specs at a glance

Accuracy: +/- 2 mm (0.08 in)
Process temperature: XT: -196…+280 °C
(-321…+536 °F)
HT: -196…+450 °C
(-321…+842 °F)
Process pressure / max. overpressure limit: Vacuum…160 bar
(Vacuum…2320 psi)
Max. measurement distance: Standard: 40 m (131 ft)
With “Advanced dynamics”: 70 m (230 ft)
Main wetted parts: 316L, Alloy C, PTFE, ceramic

—————————————-

Field of application

Micropilot FMR51 for level measurement even under extreme process conditions like high temperature and high pressure in the oil & gas and chemical industry. The FMR51 free space radar offers maximum reliability due to an innovative and patented sensor-design. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. Remote access via SmartBlue app is available.

• Process connections: Thread, Tri-Clamp or flange
• Temperature: -196 to +450°C (-321 to + 842°F)
• Pressure: -1 to +160bar (-14.5 to +2,320psi)
• Maximum measuring range: 40m (131ft), 70m (230ft) for enhanced dynamics
• Accuracy: ±2mm
• K-band: 26GHz
• International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol
• Remote access with SmartBlue App via Bluetooth® is available
