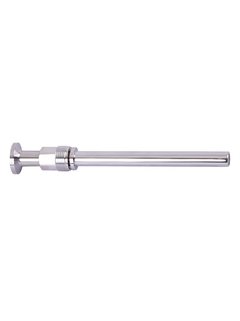

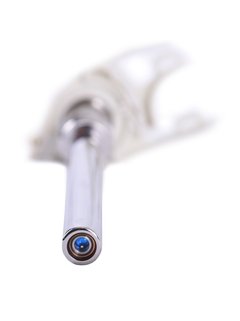

Raman bio sleeve

Specs at a glance

Wetted materials: Body: 316L stainless steel
Window: Proprietary material, optimized for bioprocesses
Surface finish: Ra 15 with Electropolish to ASME BPE SF4 finish
Adhesive: USP Class VI and ISO 10993 compatible
Immersible length: 120 or 220 mm
4.73 or 8.67 inch
Sterilization method: Autoclave, gamma irradiation

—————————————-

Field of application

The bio sleeve is a critical consumable part for easy, real-time bioprocess measurements with maximum sterility and efficiency. It connects to a reusable, automatically aligned multi optic which pairs with an Rxn-10 probe. The system reduces maintenance and cross-contamination risk for reusable or single-use benchtop bioreactor setups.

• Benchtop bioreactors to measure glucose, lactate, amino acids, cell density, titer and more
• Benchtop fermenters to measure glycerol, methanol, ethanol, sorbitol, biomass, and more
• Use with flow assembly CYA680 for select downstream bioprocessing applications

Benchtop bioreactors

Benchtop fermenters

downstream bioprocessing applications
