Raman Rxn-10 probe

Specs at a glance

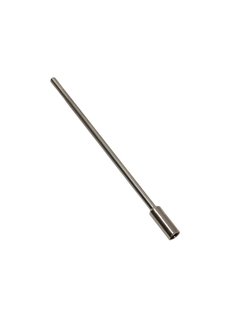

Laser wavelength: With immersion optic:
532 nm, 785 nm, 1000 nm
With bIO-Optic or Raman optic system for single use:
785 nm, 1000 nm
With bio multi optic and bio sleeve or Raman flow assembly:
785 nm
Body and window materials: Rxn-10 probe body: 6061 aluminum, 316L stainless steel, and 303 stainless steel

—————————————-

Field of application

Designed for product and process development, the Rxn-10 probe is the workhorse of the Raman probe portfolio. It is trusted to deliver high performance Raman measurements across a wide spectral range. It is also compact, lightweight, and flexible, offering multi-purpose convenience for solids and liquids analysis in the laboratory environment. The Rxn-10 probe accepts a variety of interchangeable optics, making it a highly versatile and easily adaptable instrument in your laboratory toolbox.

• Chemical: reaction monitoring, blending, catalysis, hydrocarbon speciation, process unit optimization
• Polymer: polymerization reaction monitoring, extrusion monitoring, polymer blending
• Pharmaceutical: API reaction monitoring, crystallization
• Biopharmaceutical: monitoring, optimization, and control of cell culture, fermentation, and downstream applications
• Food & Beverage: zonal heterogeneity mapping of meats and fish
