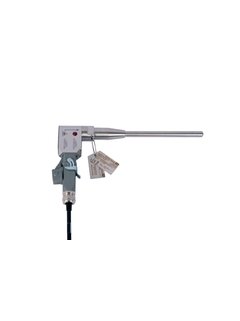

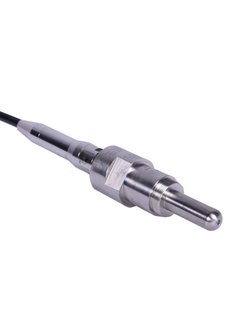

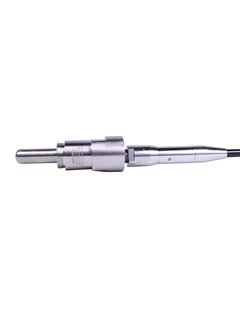

Raman Rxn-40 probe

Specs at a glance

Laser wavelength: 532 nm, 785 nm, 1000 nm
Wetted materials: Metal: C276 alloy, 316L stainless steel, or Grade 2 titanium
Window: High-purity sapphire
Hazardous area certifications: ATEX, CSA, IECEx

—————————————-

Field of application

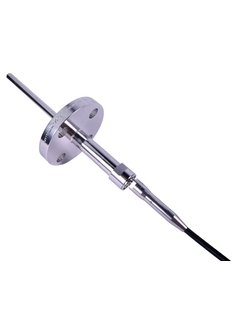

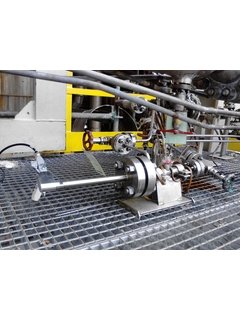

The Raman Rxn-40 probe is a sealed immersion probe for in situ Raman spectroscopy of liquid-phase samples in a laboratory or process plant setting. The process connection for the Raman Rxn-40 can be swaged, compression-mounted, flange-mounted, or installed in an Endress+Hauser flow cell, and is NeSSI compatible. These versatile options allow for direct insertion in slip-streams, drain-values, reactors, circulation loops, blend headers, and inlet or outlet pipework.

• Chemical: reaction monitoring, blending, catalysis, feed and final product monitoring
• Polymer: polymerization reaction monitoring, extrusion monitoring, polymer blending
• Oil & Gas: fuel blending, fuel characterization
• Pharmaceutical: API reaction monitoring, crystallization, polymorph, blending
