Specs at a glance
Input: 0/4…20 mA / HART
feeding/not feeding
Output: 0/4…20 mA / HART
active/passive
Power Supply: 24…230 V AC/DC
—————————————-
Field of application
Endress Hauser’s

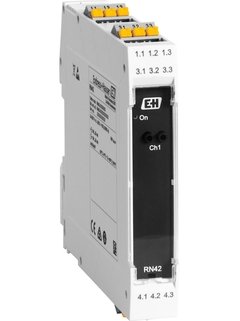

The active barrier is used for transmission and galvanic isolation of 4 to 20 mA/HART signals. The device has an active / passive current input to which a 2- or 4-wire transmitter can be connected directly. The output of the device can be operated actively or passively. The current signal is then available to the PLC / controller or for further instrumentation at pluggable screw or optional push-in terminals.
• 1-channel active barrier, wide-range power supply
• Transmission and galvanic isolation of analog 0/4 to 20 mA signals
• Optionally intrinsic safe [Ex-ia] signals from hazardous area
• Bidirectional transmission of HART® communication signals
• Feeding or not feeding input for 2- or 4-wire instruments
• Active or passive signal output
• Ambient temperature range: -40 … 60 °C (-40 … 140 °F)
