Specs at a glance
Output: 24…28 V DC
Power Supply: 100…240 V AC/DC
—————————————-
Field of application
Endress Hauser’s

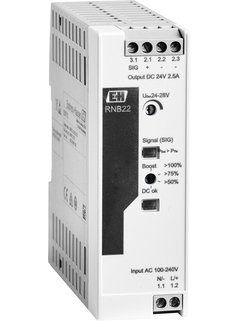

The RNB22 is a compact, high-efficiency primary switch mode power supply for DIN rail interface systems. It delivers a reliable, single-phase, 24 VDC / 2.5 A output and runs on a wide-range input from 100 to 240 VAC / 110 to 250 VDC, with a dynamic and static boost of 5 A and 3.125 A respectively.
When run in parallel with the RNF22 error message module, the RNB22 provides redundancy, increased capacity, as well as function monitoring to report critical operating states before errors occur.
• High-efficiency 24 VDC / 2.5 A power supply with low power dissipation
• Parallel mode with RNF22 for redundancy
• Suited for decentralized applications or remote cabinets
• Compact housing efficient use of space in control cabinets
• Low heat dissipation, no lateral clearance required
• Ambient temperature range: –25 to 70 °C (–13 to 158 °F)
