Specs at a glance
Measured variables: CH4, CO, CO2, H2, H2O, N2O, NH3, NO, NO2, O2, SO2
Hydrocarbons (e.g. C2H2), halogenated hydrocarbons (e.g. CH2Cl2) and other gases upon request
Ambient temperature range: +5 °C … +45 °C
Hazardous area approvals: S715 Ex:
ATEX II 3G Ex nR IIC T6 Gc
Without intrinsically safe measured value outputs
ATEX II 3G Ex nR [ib] IIC T6 Gc
With intrinsically safe measured value outputs
S720 Ex / S721 Ex:
ATEX II 2G Ex db ia IIC T6 Gb
Without intrinsically safe measured value outputs
ATEX II 2G Ex db ia [ia] IIC T6 Gb
With intrinsically safe measured value outputs
—————————————-
Field of application
Endress Hauser’s

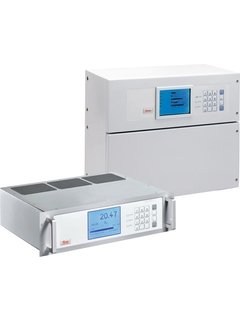

With the modular gas analyzer S700, a customer-specific and tailor-made measuring device can be put together for almost every application. Various analyzer modules for the measurement of well over 60 gases, and different housing variants offer comprehensive and individually tailored combination options.
• Cooling gas monitoring of turbo generators
• CO measurement for coal mill monitoring
• H2 purity measurements in pressure swing adsorption systems
• CO2 monitoring in natural gas during natural gas processing
• Various analyzer modules are available: UNOR (NDIR), MULTOR (NDIR), OXOR-E (electrochemical O2), OXOR-P (paramagnetic O2), THERMOR (thermal conductivity)
• Over 60 measuring components to choose from
• Different housing variants
• Up to three analyzer modules in one housing
Device properties:
