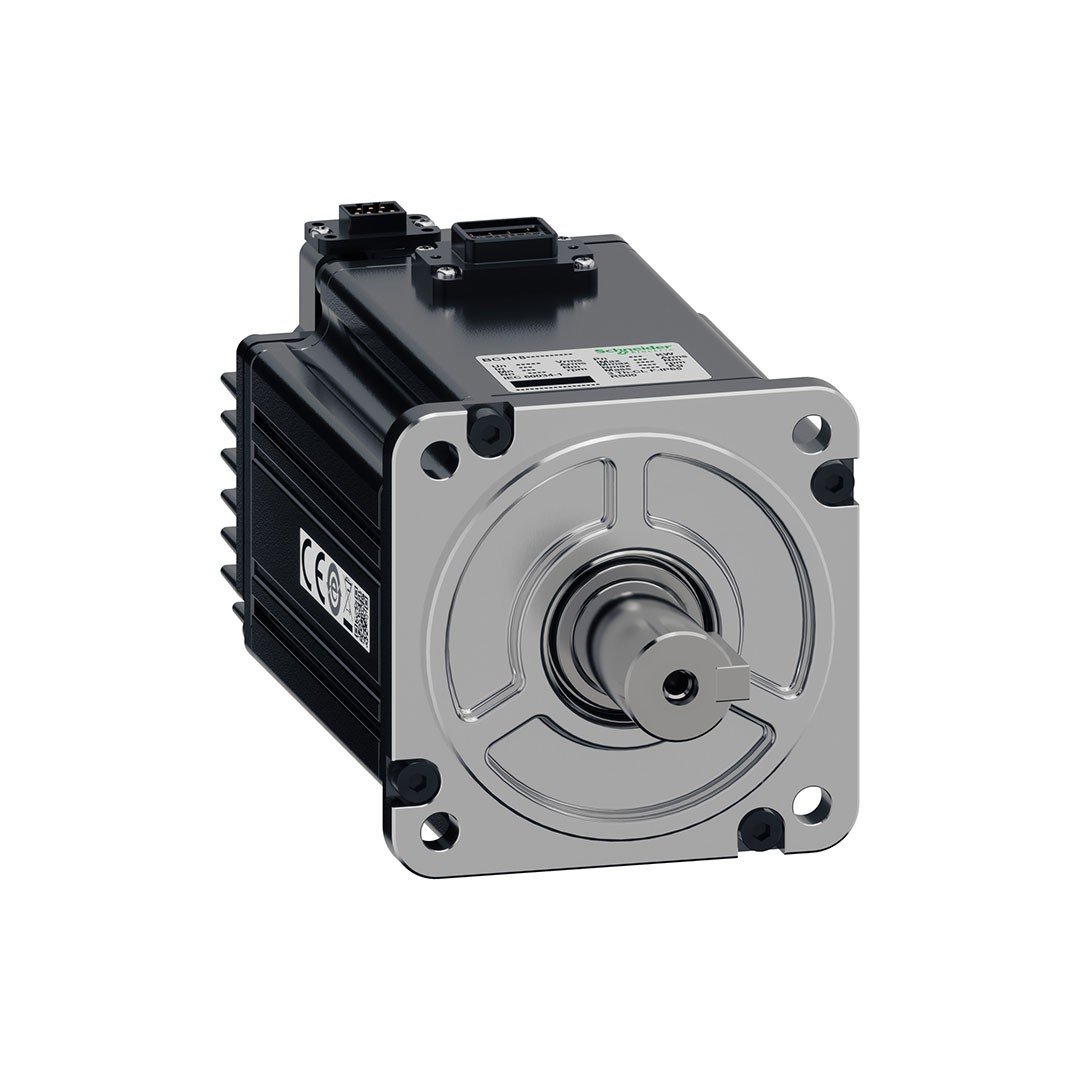

Schmeider BCH18MF04332A5C EASY LEXİUM 18 400W M80 23 BIT OPTO INC Servo Motor

Serial Compliance Easy Lexium 18
Product Group Bch18
Product or component type servo motor
Maximum Mechanical Speed ​​6000,0 RPM
[US] Nominal Feeding Voltage 200 … 240 V
Network of Phase Networks 3 Phase
Continuous stop current 2.6 A
Continuous stop torque 1,27 N.M, 220 V, Monophase
Continuous Power 400 W
Tepe stop torque 4.45 N.M, 220 V, monophase
Nominal output power 400 W, 220 V, monophase
Nominal Tork 1,27 N.M, 220 V, Monopase
Nominal Speed ​​3000 RPM, 220 V, Monopase
Maximum Permanent Current 9.3 A
shaft tip parallel key
Shaft diameter 14.0 mm
Shaft length 30.0 mm
Key width 5.0 mm
Back Feeding Type 23 Bits Optic Incremental Encoder
without braking
Assembly support Asia Standard Flange
engine flange size 80 mm
Electric Connection 2 Connector Male/Female
torque constant 0.49 n.m/a -de 40 ° C
Recommendation constant 35.0 V/Krpm 40 ° C per EMF
Rotor Authority 1.19 kg.cm²
maximum radial power Fr 392 n
Maximum Axial Power FA 147 N
Length 98 mm
The number of assembly holes is 4.0
Circular diameter of the assembly holes 6.5 mm
Width 98.0 mm
height 80.0 mm
Depth 88.6 mm
Product weight 1.84 kg
ENKODER TYPE OPTIC ENCODER
