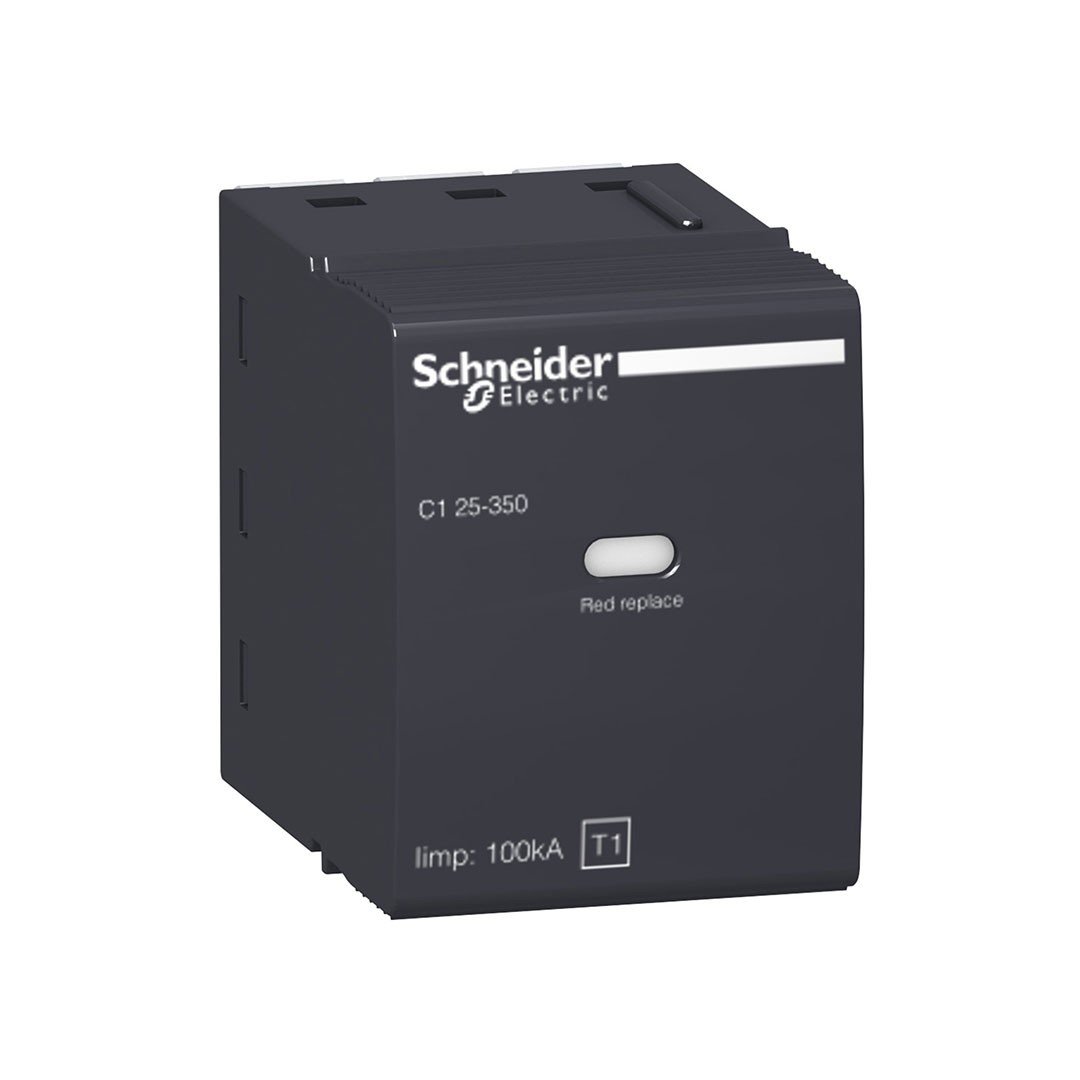

Schneider 16317 PRD1-25R-PRD1 Parafudr Cartridge for Master

Product or component type cartridge
Product Group C1 Neutral-350
Serial Compatibility ACTİ9 ACTİ9 PRD1 TAK-Çıkar Cartridge Discontlector Stopper
ACTİ9 ACTİ9 PRD1 Master Tak-Çıkar Cartridge Durum Stopper
Detailed Stop Type Electric Distribution Network
Standards IEC 61643-1
EN 61643-11
Product Certificates KEMA-KEUR
Class Type Type 1
DUTTING STOPPER TECHNOLOGY SPRING RANGE
Grounding system tn
TT
[UE] Nominal Working Voltage 230 V AC 50 Hz
Nominal Discharge Current 20 Ka
[UC] maximum continuous working voltage 350 V
INTRODUCTION CURRENT <1,5 KV Type 1 [IF] Monitoring Current 0.1 KA Assembly type can be installed Assembly support into the SPD module 9 mm screw step 4 Height 50 mm Width 36 mm Depth 57 mm Color anthracite Gray (Ral 7016) MATERIAL PBT (polybite tereftalat) Response time <100 ns
