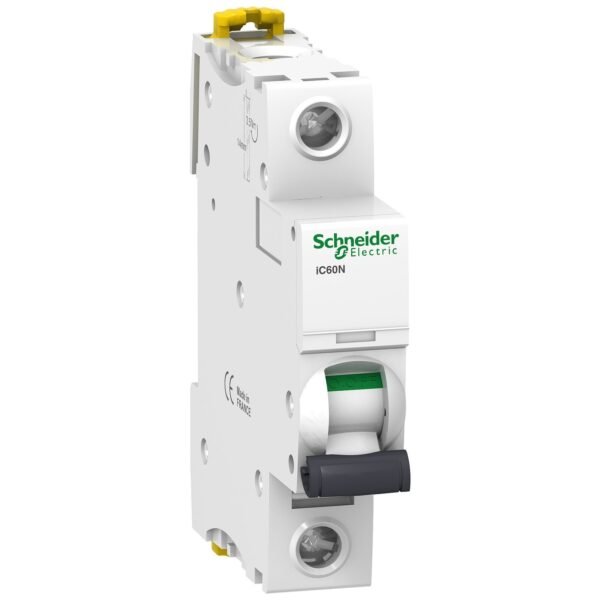

Schneider A9F74132 1K 6KA C type 1x32A automatic insurance

This ACTİ9 ic60N is a low -voltage miniature circuit cutter (MCB).
The 4 -protected pole is a 4P circuit breaker with nominal current and C -opening curve.
The nominal short circuit cutting capacity increases up to 6000A in 220VAC to 240VAC in accordance with EN/IEC 60947-2 standard and in accordance with EN/IEC 60898-1 standard.
It is compatible with both the industrial standard EN/IEC 60898-1 and housing standard EN/IEC 60947-2.
This miniature circuit breaker protects the circuits against short circuit and overload current.
The unique Visitrip indicator shows the defective circuit and reduces the intervention time.
The Visisafe Green Strip guarantees the physical opening of contacts to allow subsequent maintenance.
The fast closure mechanism independent of manual process extends its life life.
It has electrical strength up to 10000 revolutions and mechanical resistance up to 20000 revolutions.
Ui nominal insulation voltage is 500VAC.
The limitation class 3 (according to EN/IEC60898-1) increases the cost of lower circuit protection.
The product can be clipped on a DIN rail. The width is 9 mm 8 steps.
The degree of pollution is 3. The extreme voltage category is IV.
The product color is white (RAL9003). Dimensions (G) 72 mm x (y) 85 mm x (D) is 78.5 mm.
Weight is 0.5 kg.
According to the IEC 60529 standard, the degree of protection in storage is IP20 and IP40.
The operating temperature is between -35 ° C and 70 ° C.
The storage temperature is between -40 ° C to 85 ° C.
