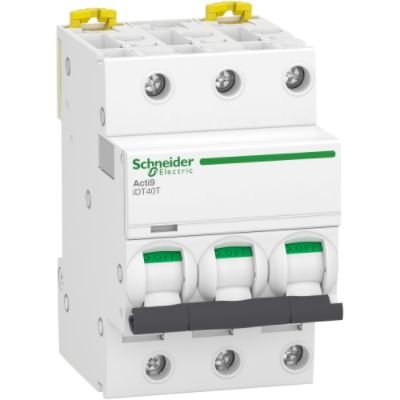

Schneider A9P22316 – Acti 9 Acti9 iDT40T MCB, 3P, 16A Curve C, 400V AC

Schneider Electric Acti9 iDT40T Series MCB, 3 Poles, 16A Current Rating – A9P22316This MCB is a compact 3 Phase circuit breaker designed for electrical distribution applications. Compliant with EN/IEC standards, it offers robust protection for circuits, with a rated current of 16A and operational voltage of 400V. Its DIN rail mount design ensures easy installation, making it a practical choice for various settings.Features & Benefits
• Thermal-magnetic trip technology improves circuit protection reliability
• Type C Circuit Breaker suitable for commercial and industrial loads
• 4500A breaking capacity ensures quick fault clearance
• Designed for ease of use with toggle control and trip indicatorApplications
• Used with three phase electrical systems for distribution
• Ideal for circuit protection in commercial facilities
• Suitable for integration in panels requiring MCBs
• Used for safeguarding motors and inductive loadsWhat is the significance of the breaking capacity for this device?The breaking capacity of 4500A ensures that the device can safely interrupt excessive fault currents, protecting other connected devices and preventing potential damage in the electrical system.How does the thermal-magnetic technology enhance protection?This technology combines thermal protection for overloads and magnetic tripping for short circuits, ensuring comprehensive performance against different fault conditions while maintaining system integrity.Can this circuit breaker be padlocked for added safety?Yes, the design includes a padlocking option, providing an additional layer of safety by preventing accidental operation during maintenance or when the circuit is not in use.What is the ambient temperature range for operation?It operates effectively within a temperature range of -25 to 70 °C, making it suitable for varied environmental conditions.
