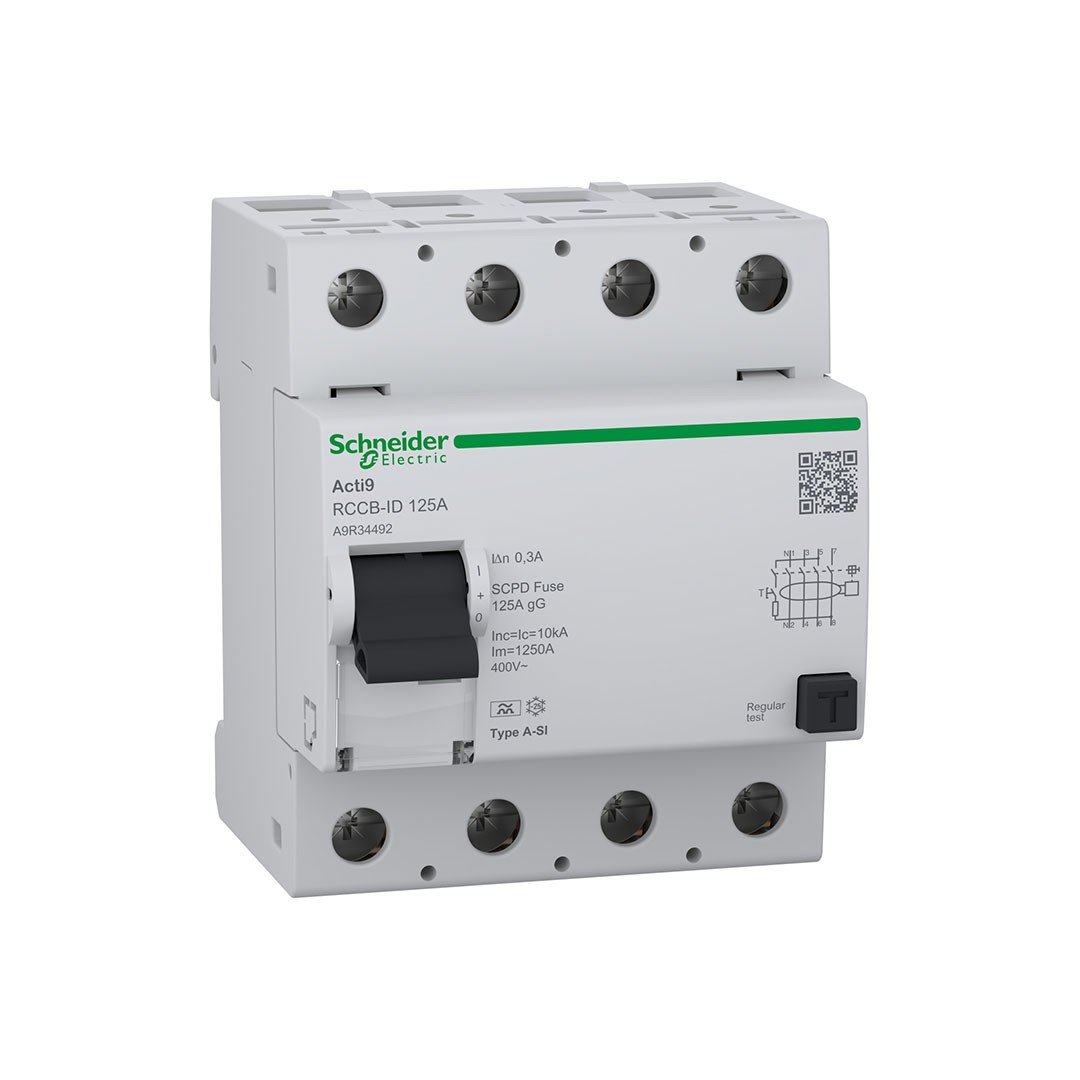

Schneider A9R34492 ACTİ9 RCCB-ID 4P 125A 300MA A-DI Type Illegal Current Relay

Series ACTI 9
Product Name ACTİ9 RCCB-ID
Product or component type leakage current circuit cutter (RCCB)
Product Group RCCB-ID
POOL DESCRIPTION 4P
neutral location left
[In] Nominal Current 125 A
Network Type AC
soil leak sensitivity 300 ma
Soil leakage protection time delay instant
Soil Leakage Protection Class Type A-SI (Super Immune)
hominal cutting and closing capacity I = 1250 A 400 V.
IM = 1250 A 230 V.
Nominal conditional short circuit current Inc 10 Ka 125 A
The location of the device in the system
Network Frequency 50 Hz
[UE] Nominal Working Voltage 400 V AC 50 Hz
400 V AC suitable for 50 Hz/EN 61008-2-1
Residual current opening technology voltage independent
[Ui] Nominal Insulation Voltage 400 V AC 50 Hz
400 V AC suitable for 50 Hz/EN 61008-2-1
[UIMP] Nominal Pulse Resistance Voltage Compatibly to 4 KV/EN 61008-1
4 KV ‘s suitable for EN 61008-2-1
contact location indicator yes
Control Type
Signaling on Device Red/Green Indicator
Opening indicator
Assembly type fixed
Assembly Support 35 mm Symmetric DIN RAY
Connection range between 18 mm phases
9 mm screw step 8
Height 86 mm
Width 72 mm
Depth 76 mm
Product weight 420 g
color gray
Mechanical durability 5000 Cycles
Electric strength 2000 Cycles
Locking supply can be locked
Connections – Terminals Tunnel Type Terminals2 Cable (s) 1.5… 16 mm² flexible
Tunnel Type Terminals2 Cable (s) 1.5… 16 mm² hard
Tunnel Type Terminals1 cable (s) 1.5… 50 mm² hard
Tunnel Type Terminals1 cable (s) 1.5… 35 mm² flexible
Tunnel Type Terminals1 Cable (s) 1.5… 35 mm² ringed and flexible
Tunnel Type Terminals2 Cable (s) 1.5… 16 mm² ringed and flexible
Wire stripping length 11 mm
Squeezing torque 3 N.M
