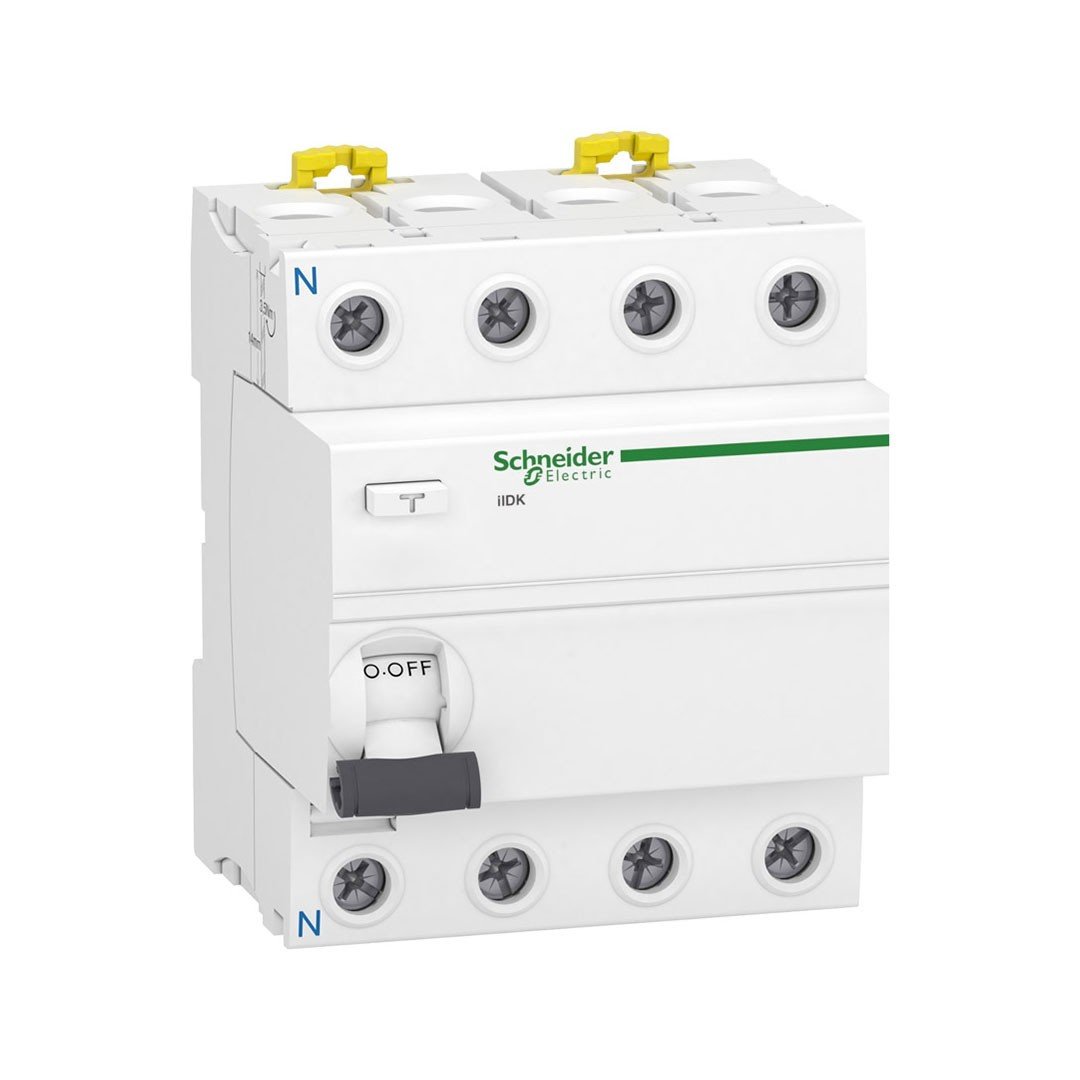

Schneider A9R50425 4K 25A 30MA IMAGE CURRENT PROTECTION REAL

Sherry
:
ACTI 9
Product name
:
Acti9 iid k
Product or component type
:
Residual Current Circuit Breaker (RCCB)
Product group
:
IID K
Polar definition
:
4P
Neutral position
:
Left
[In] Nominal Current
:
25 A
Network
:
HUNGRY
Soil leak sensitivity
:
30 mA
TIME LEAK PROTECTION TIME RELEASE
:
Momentary
Soil leakage protection class
:
Type Ac
Quality Labels
:
VDE
Complementary features
The location of the device in the system
:
Exit
Network frequency
:
50/60 Hz
[UE] Nominal Working Voltage
:
380 … 415 V AC 50/60 Hz
Residual current opening technology
:
Voltage independent
Hominal cutting and closing capacity
:
IDM 500 A
I am 500 A
Nominal conditional short circuit current
:
GL63: INC 4.5 KA
K60: Inc 6 Ka
C60: Inc 6 Ka
[Ui] Nominal Insulation Voltage
:
440 V AC 50/60 Hz
[UIMP] Nominal impact resistance voltage
:
4 KV
Deduction current
:
250 A
Contact location indicator
:
None
Control type
:
Transition
Assembly type
:
Stuck
Assembly support
:
DIN RAY
9 mm screw step
:
8
Height
:
85 mm
Width
:
72 mm
Depth
:
69 mm
Product weight
:
0.37 kg
Colour
:
White
Mechanical resistance
:
5000 Cycles
Electricity resistance
:
AC-1: 2000 Cycles
Locking Options Definition
:
Locking device
Connections – Terminals
:
Tunnel Type Terminals upper or Alt1… 35 mm² hard
Tunnel Type Terminals upper or Alt1… 25 mm² flexible
Tunnel Type Terminals upper or Alt1… 25 mm² ringed and flexible
Wire stripping length
:
Upper or lower connection for 16 mm
Squeezing torque
:
3.5 N.M top or bottom
