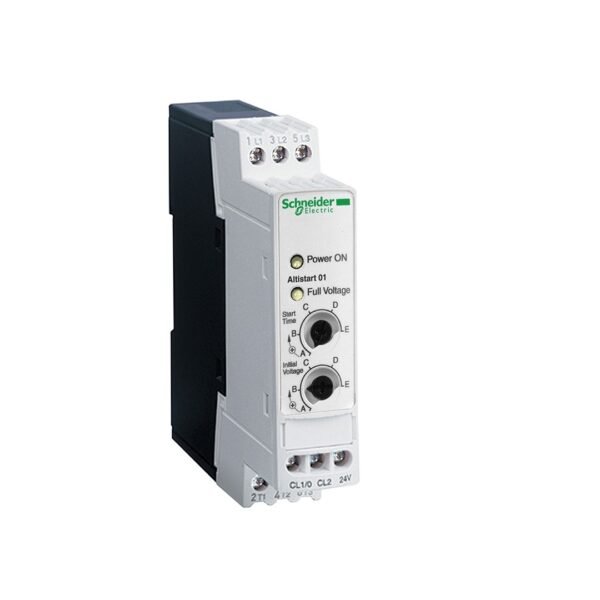

Schneider ATS01N103FT ATS01 3A 110-480V SOFT ROAD

Product series
:
Altistart 01
Product or component type
:
Soft road
Product destination
:
Asynchronous motors
Product Special Application
:
Simple machine
Product group
:
ATS01
Network Network of Phase
:
1 phase
[US] Nominal Nutrition Voltage
:
110 … 480 V – 10 … 10 %
Motor Power KW
:
0.37 kW, 230 V in 3 phases
0.55 kW, 230 V in 3 phases
1.1 kW, 400 V in 3 phases
0.37 kW, 230 V in 1 phase
Motor Power HP
:
0.5 hp, 230 V in 3 phases
0.5 hp, 460 V in 3 phases
1.5 hp, 460 V in 3 phases
ICL ROAD VALUE
:
3 A
Current consumption
:
15 A at a nominal load
Start -up type
:
Roading with voltage ramp
Power distribution in W
:
19 W temporary
4 W is at full load and at the end
Complementary features
Assembly style
:
Cooling block
Usable Function
:
Integrated bypas
Feeding voltage limits
:
99… 528 V
Feeding frequency
:
50 … 60 Hz – 5 … 5 %
Network frequency
:
47,5 … 63 Hz
Output voltage
:
<= Power Nutrition Voltage Control circuit voltage : 110 V AC +/- 10 % MA at 30 % 24 V AC/DC +/- 10 % 25 MA 240 V AC +/- 10 % 65 MA Road time : 1 S / 100 5 S / 20 Adjustable between 1 and 5 seconds Roadplace : 30 %of the motor's passing moment ... 80 depends on direct line feeding Digital output current : 2 A DC-13 3 A AC-15 Squeezing torque : 0.8 N.M Electric connection : Cage type connector - hard 1 2.5 mm² AWG 14 Control Circuit Cage type connector - hard 1 2.5 mm² AWG 14 Power Circuit Cage type connector - hard 2 1 mm² AWG 17 Control circuit Cage type connector - hard 2 1 mm² AWG 17 Power Circuit Cage type connector - Flexible cable tip 1 2.5 mm² AWG 14 Control circuit Cage type connector - Flexible cable tip 1 2.5 mm² AWG 14 Power Circuit Cage type connector - Flexible cable endless 1 2.5 mm² AWG 14 Control circuit Cage type connector - flexible cable endless 1 2.5 mm² AWG 14 Power Circuit Cage type connector - Flexible cable tip 2 0.75 mm² AWG 18 Control circuit Cage type connector - Flexible cable tip 2 0.75 mm² AWG 18 Power Circuit Cage type connector - flexible cable endless 2 1 mm² AWG 17 Control circuit Cage type connector - Flexible cable endless 2 1 mm² AWG 17 Power Circuit Marking : CE Working position : Vertical +/- 10 degrees Height : 100 mm Width : 23 mm Depth : 100 mm Product weight : 0.16 kg Compatibility code : ATS01N1 Motor power range AC-3 : 0… 0.5 kW -200… 240 V 1 phase 0… 0.5 kW -200… 240 V 3 phase 0.55… 200… 240 V 3 phase in 1 kW 1,1… 2 kW -380… 440 V 3 phase
