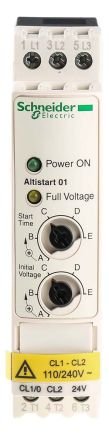

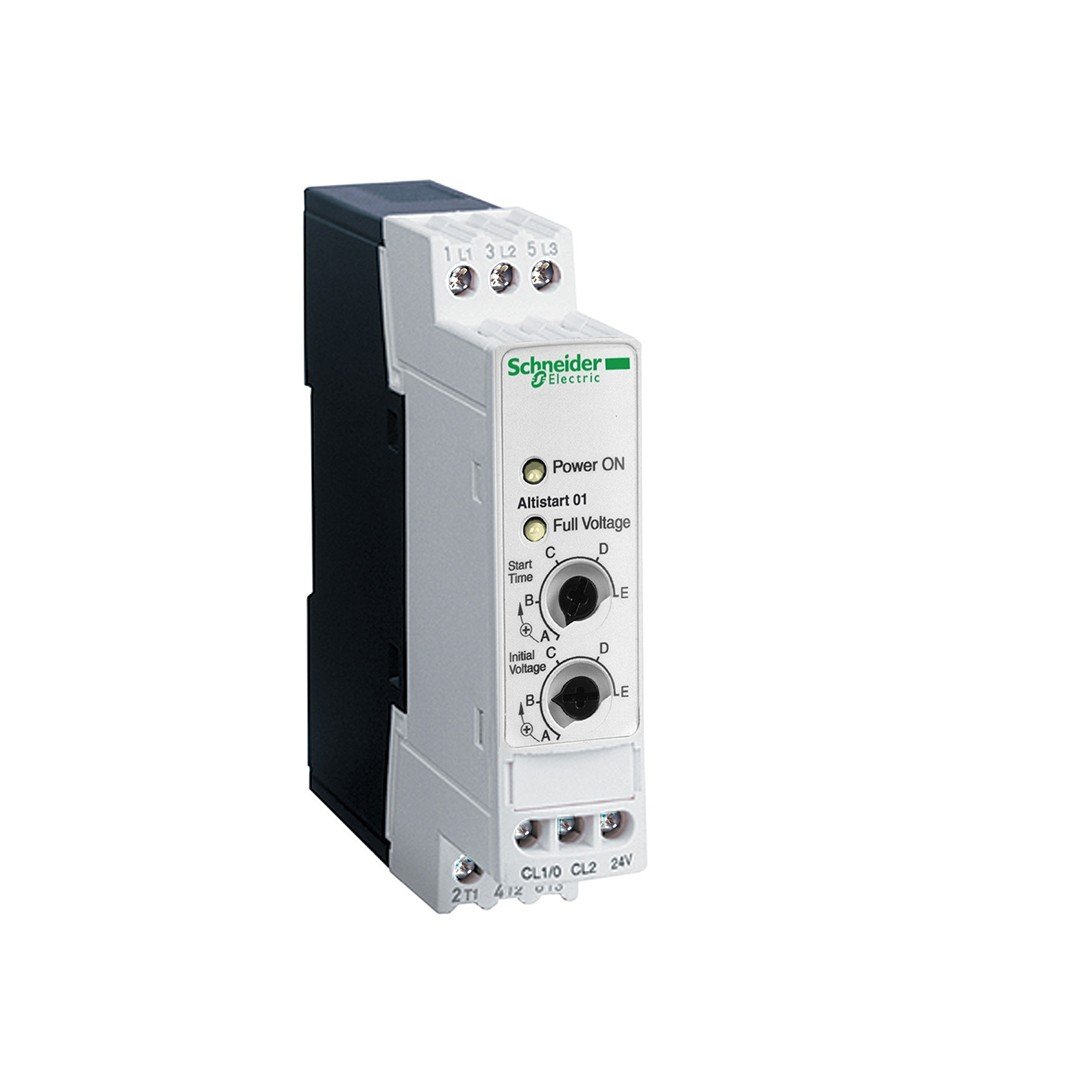

Schneider ATS01N106FT ATS01 – 6A – 110..480V ALTISTART SOFT ROAD
Soft Starter for Asynchronous Motor – ATS01 – 6 A – 110..480V – 0.75..3kW – SCHNEIDER quality product.
Place your order
Range of Product
Altistart 01
Product or Component Type
Soft Starter
Product Destination
Asynchronous motors
Product Specific Application
Simple Machine
Device Short Name
ATS01
Network Number of Phases
1 Phase
[Us] rated supply voltage
110… 480 V – 10… 10 %
Motor Power KW
3 kW, 3 Phases horse 400 V
0.75 kW, 3 Phases at 230 V
1.1 kW, 3 Phases at 230 V
2.2 kW, 3 Phases At 400 V
0.75 kW, 1 phase at 230 V
Motor Power HP
1 HP, 3 Phases At 230 V
2 HP, 3 Phases At 460 V
3 HP, 3 Phases At 460 V
0.5 hp, 3 Phases at 210 V
1.5 hp, 3 Phases at 230 V
ICL Starter Rating
6 A
Utilisation Category
AC-53B Conforming to EN/IEC 60947-4-2
Current Consumption
30 A At Nominal Load
Type of Start
Start with Voltage Ramp
Power Dissipation in W
1 W at Full Load and At End of Starting
31 W in Transient State
