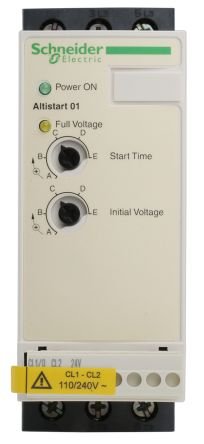

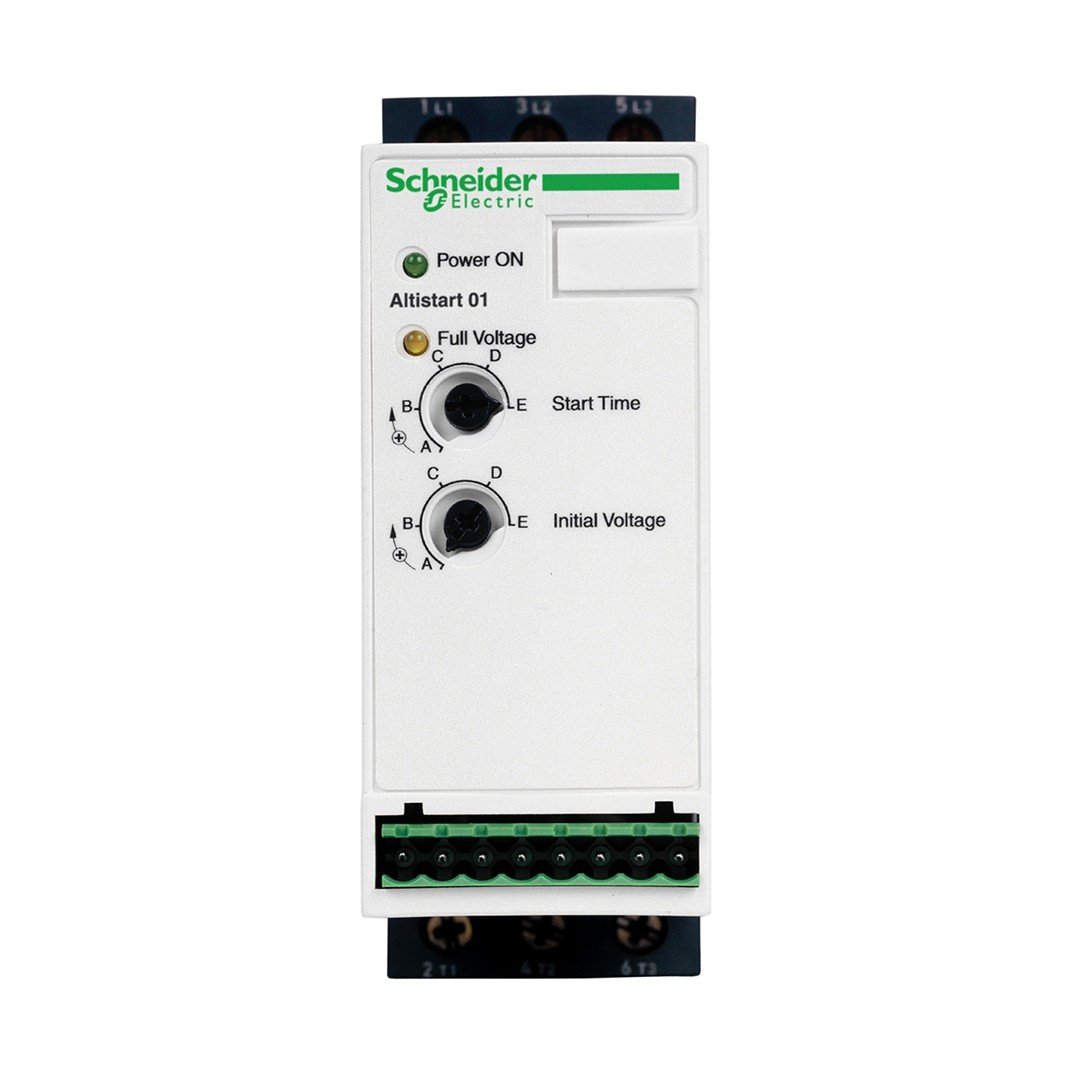

Schneider ATS01N109FT ATS01 9A 110-480V SOFT ROAD

Product series
:
Altistart 01
Product or component type
:
Soft road
Product destination
:
Asynchronous motors
Product Special Application
:
Simple machine
Product group
:
ATS01
Network Network of Phase
:
1 phase
[US] Nominal Nutrition Voltage
:
110 … 480 V – 10 … 10 %
Motor Power KW
:
4 kW, 400 V in 3 phases
1.5 kW, 230 V in 3 phases
1.1 kW, 230 V in 1 phase
Motor Power HP
:
1 HP, 210 V in 3 phases
2 hp, 230 V in 3 phases
5 HP, 460 V in 3 phases
ICL ROAD VALUE
:
9 A
Current consumption
:
45 A at a nominal load
Start -up type
:
Roading with voltage ramp
Power distribution in W
:
1 W is at full load and at the end
46 W temporary
Complementary features
Assembly style
:
Cooling block
Usable Function
:
Integrated bypas
Feeding voltage limits
:
99… 528 V
Feeding frequency
:
50 … 60 Hz – 5 … 5 %
Network frequency
:
47,5 … 63 Hz
Output voltage
:
<= Power Nutrition Voltage Control circuit voltage : 110 V AC +/- 10 % 3 35 mA 24 V AC/DC +/- 10 % 240 V AC +/- 10 % 80 mA Road time : 1 S / 100 5 S / 20 Adjustable between 1 and 5 seconds Roadplace : 30 %of the motor's passing moment ... 80 depends on direct line feeding Digital output current : 2 A DC-13 3 A AC-15 Squeezing torque : 0.5 N.M 1.9… 2.5 N.M Electric connection : 4 mm screw clamp terminal - hard 1 1 ... 10 mm² AWG 8 Power Circuit Screw connector - hard 1 0.5 ... 2.5 mm² AWG 14 Control circuit 4 mm screw clamp terminal - hard 2 1 ... 6 mm² AWG 10 Power Circuit Screw connector - hard 2 0.5 ... 1 mm² AWG 17 Control Circuit Screw connector - Flexible cable tip 1 0.5 ... 1.5 mm² AWG 16 Control circuit 4 mm screw clamp terminal - flexible cable endless 1 1.5 ... 10 mm² AWG 8 Power Circuit Screw connector - Flexible cable endless 1 0.5 ... 2.5 mm² AWG 14 Control circuit 4 mm screw clamp terminal - Flexible cable tip 2 1 ... 6 mm² AWG 10 Power Circuit 4 mm screw clamp terminal - flexible cable endless 2 1.5 ... 6 mm² AWG 10 Power Circuit Screw connector - flexible cable endless 2 0.5 ... 1.5 mm² AWG 16 Control circuit Marking : CE Working position : Vertical +/- 10 degrees Height : 124 mm Width : 45 mm Depth : 131 mm Product weight : 0.28 kg Compatibility code : ATS01N1 Motor power range AC-3 : 1,1… 200… 240 V 1 phase in 2 kW 2.2… 200… 240 V 3 phase in 3 kW 4… 6 kW -380… 440 V 3 phase
