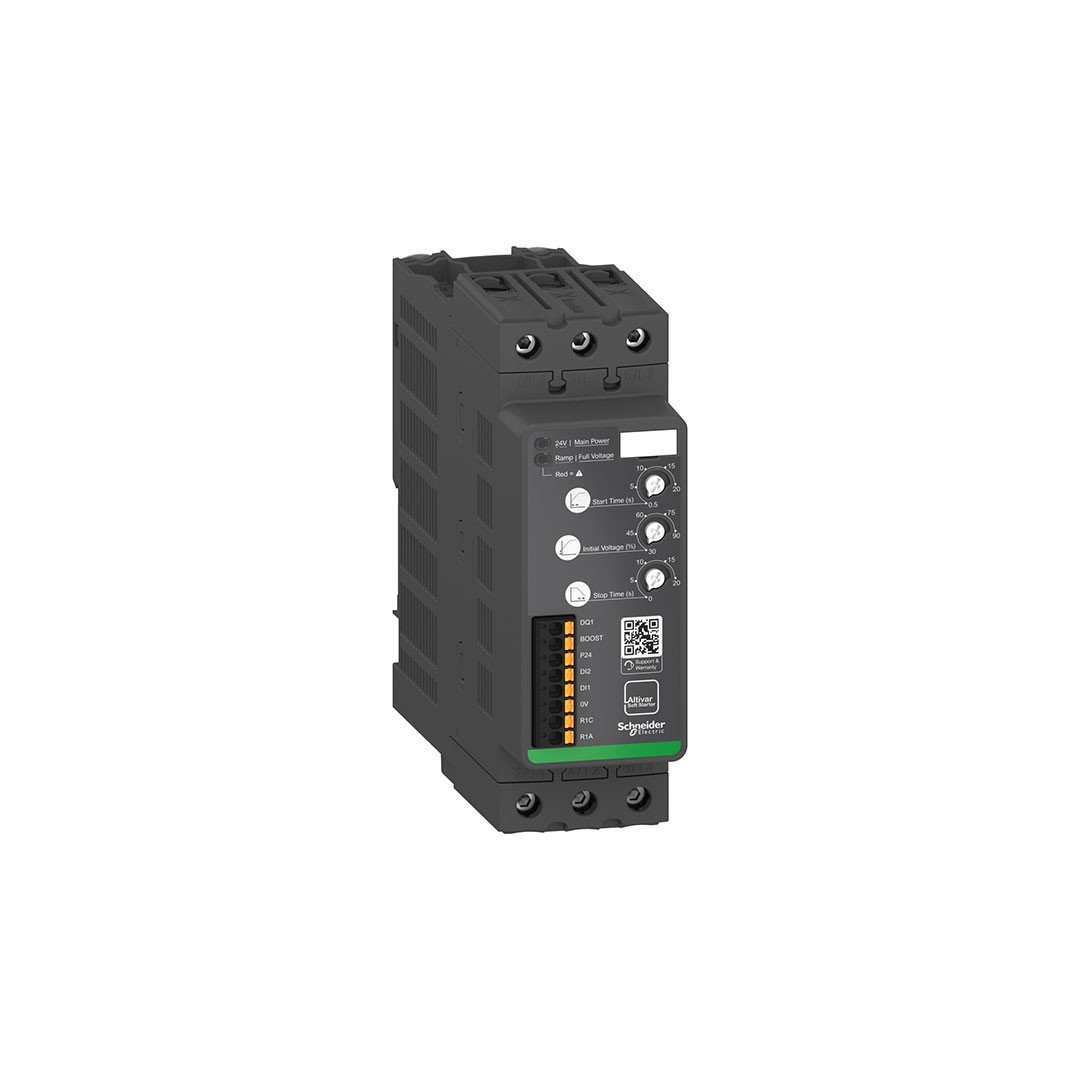

Schneider ATS130N2D65LT ATS130 200-480V 65A SOFT POSTER

Product Series Altivar Soft Starter ATS130
Product or component type soft road
Product Arrival Place Asynchronous Motors
Product Special Application Simple Machine
Product Group ATS130
Network of Phase Networks 3 Phase
Usage category AC-53A
UE Power Supply Voltage 200 … 480 V % – 15 … 10
Power Supply Frequency 50 … 60 Hz +/- 5 Hz
[IE] Nominal Working Current 65 A Line 40 ° C)
Service Factor At I 100
Educational activity is wrong
IP protection degree IP20
Motor strength KW 18.5 kW -230 V normal condition
400 V normal condition for 30 kW
440 V in 37 kW is normal condition
Motor Power HP 20 HP 200 V Normal Condition
208 V Normal requirement in 20 hp
230 V in 20 hp
460 V Normal Condition in 40 HP
480 V Normal requirement in 50 HP
Overload Current Profile 300 % IE for 5 S
installed factor 70 %
Operating Cycles/Hour 13 CYC/H
Minimum Motor Current 20 % IE
Device Connection In Line
[US] Control Circuit Voltage 24 V DC +/- 10 %
Control Power 21.6 W Starting and Stopping
3 W Steady State
Integrated motor overload protection is wrong
Protection Type Phase Error: Mains
Thermal protection: roadwater
Bypass ERROR: Yolveerici
Control Voltage Us: Yolveerici
[IN] RED CURRENT PWR Loss SPECİFCTN 65 A
Loss of power static current independent 3 W
Loss of power per device 16 W 16 W
Power Loss Duraling Starting 397 W 300 % IE
Standards EN/IEC 60947-4-2
Ul 60947-4-2
IEC 60664-1
Product Certificates CE
Ukca
CCC
Rcm
Eac
Marking CE
CCC
Ukca
Rcm
Eac
Control Circuit Voltage 24 V DC
Number of digital inputs 3
Digital Input Type (DI) Digital Input, 10 Kohm
(DI2) Digital Input, 10 Kohm
(Boost) Digital Input, 10 Kohm
INTRODUCTION Compatibility Digital Entry Level 1 PLC
Digital Introduction Logic Digital Input 0 In case: 0 … <5 V and <= 0.2 ma 1 in the case:> 13 V,> = 0.5 mA
Relay Outputs Number 1
Relay output type relay outputs R1A, R1C NA
Minimum switching current 2.5 mA -24 V DC relay outputs
Maximum switching current on resistance load for relay outputs: 1 A 250 V AC 400000 Cycles
For Relay outputs on resistance load: 1 A 30 V DC 400000 Cycles
For relay outputs on inductive load: 1 A 250 V A A A A A A A A AC COS Phi = 0.4 100000 Cycles
For relay outputs on inductive load: 1 A 30 V DC COS Phi = 0.4 100000 Cycles
Number of digital outputs 1
Digital output type Non Programmable Digital Output DQ1 <= 30 V 200 mA Control Power Energized for Screen Type 1 LED (Green) 1 LED (Yellow and Red) Motor Operation Phases, Errors Image screen can be used wrong Working Position Vertical +/- 30 Degree Height 166 mm Width 55 mm Depth 165 mm Product weight 1.3 kg Support Protocol for Ace Usable Function Deceleration Voltage Ramp Boost internal bypass correct Material Declaration Correct
