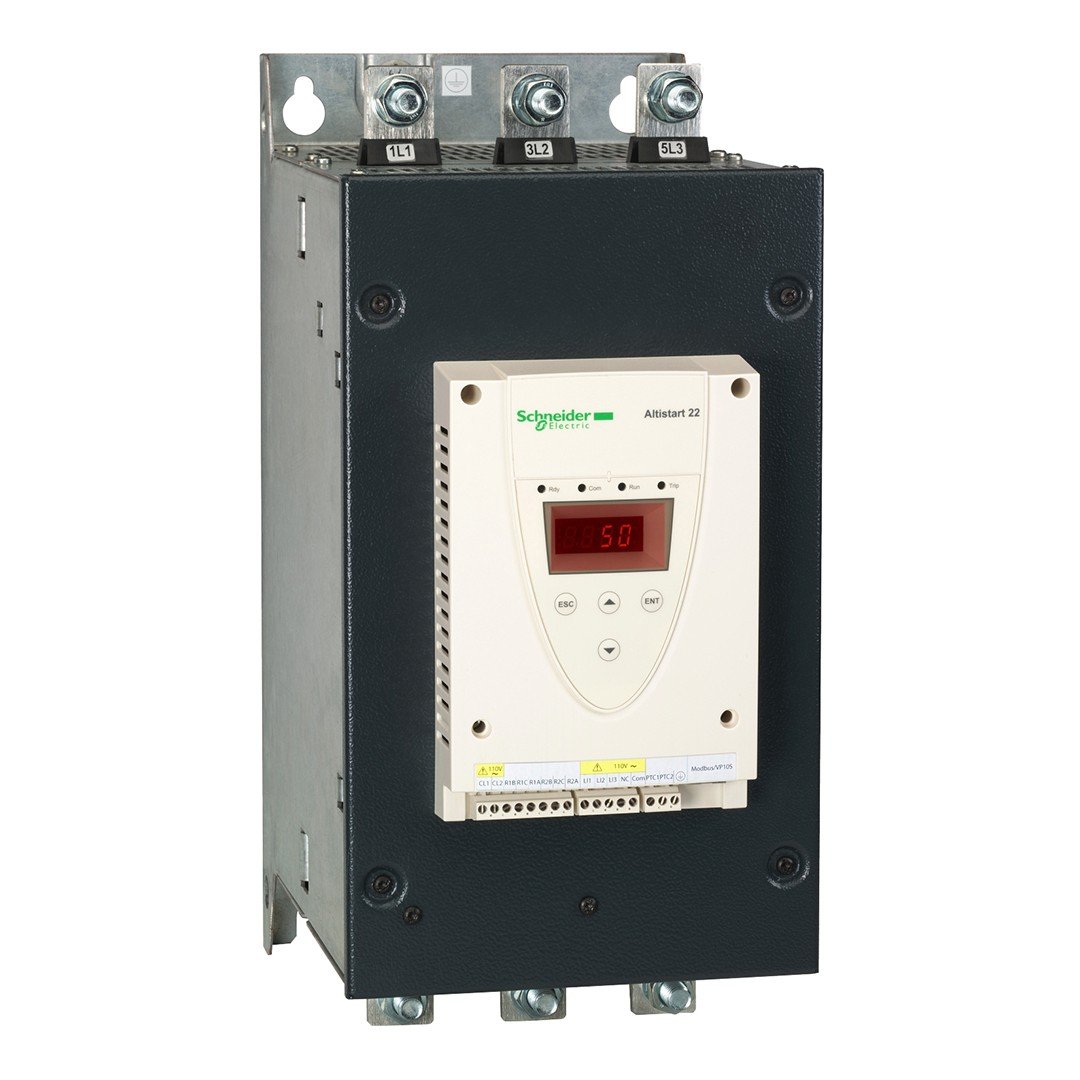

Schneider ATS22C32Q 160KW Soft Road Doner
Schneider ATS22C32Q 160KW Soft Road Doner by SCHNEIDER is a high-quality soft transmitters with Product Code: ATS22C32Q; Series: Altistart 22 Series Soft Roads; Class General Features: Moment Controlled, Functional Design, AC-1 Category By-Pass Controller, Advanced Digital Control
Place your order
Product Code: ATS22C32Q
Series: Altistart 22 Series Soft Roads
Class General Features: Moment Controlled, Functional Design, AC-1 Category By-Pass Controller, Advanced Digital Control
Product Description: Schneider ATS22C32Q, 285 AMPER, 160 KW, Softstarter (Soft Cooperative)
Commemoration Current (A): 285 Ampere
Direct Connection Engine Power (KW): 160 kW
Delta Connection Motor Power (KW): 250 kW
MOMENT CONTROL: Adjustable voltage or torque ramp
Working temperature: lossless -10…+40 ° C (loss up to 50 ° C)
Number of poles: 3 phase control
Communication: Internal Modbus Communication
Entry and Output Units: 4 digital input, 2 relay output, 1 analog input (can be configured with PTC input)
BY-PASS Controller: Internal
Protection Class: Protection up to Class 30 in standard applications
Standards: Fully compatible with CE directives
Certificates: IEC/EN 60947-4-2, Class A EMC, CE, UL, CSA, C-Tick, GOST, CCC
Connection System: Direct or Delta Connection
Motor Protection System: Thermal Motor Protection
Size (mm): 206x299x425
