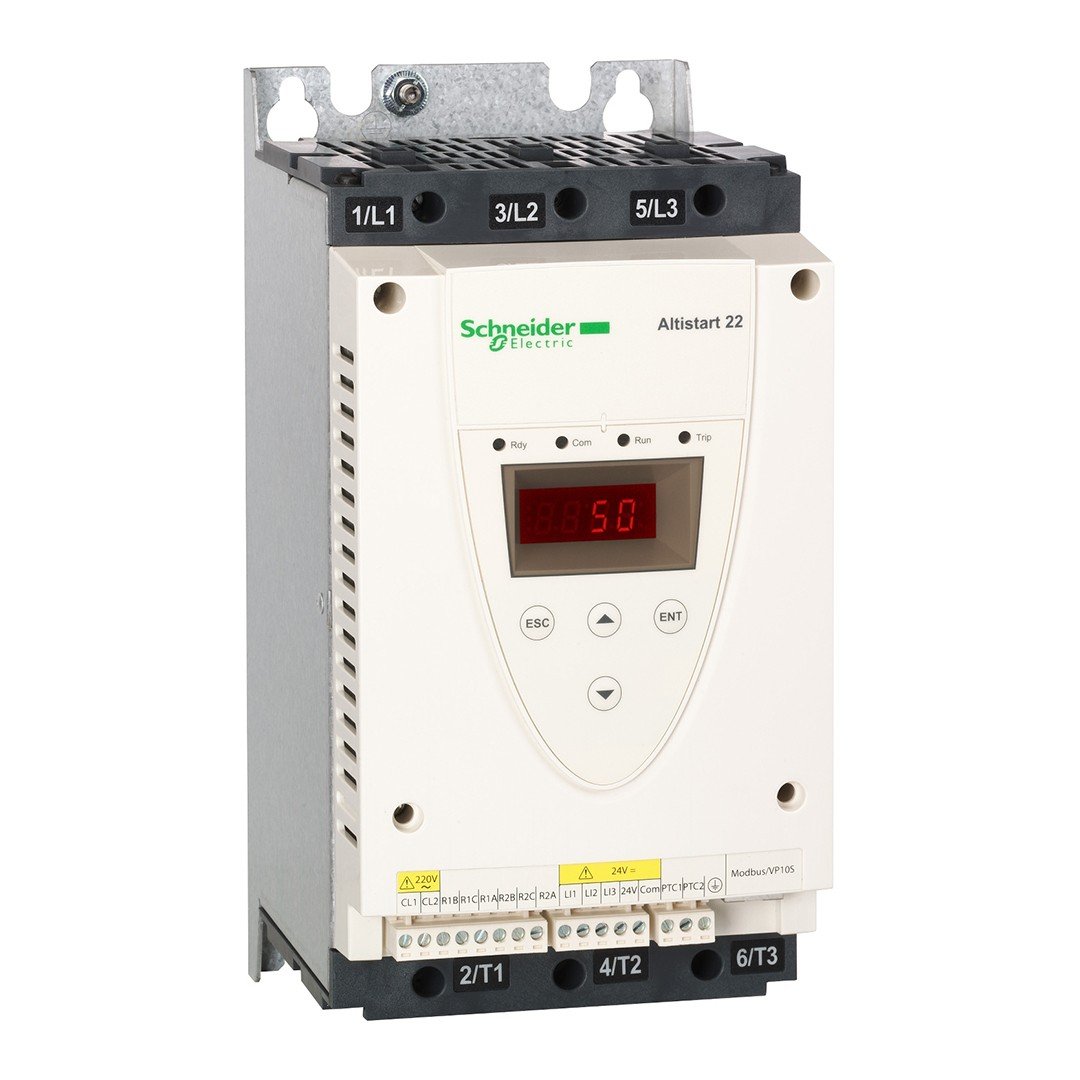

Schneider ATS22D17Q ATS22 – 17A ALTISTART SOFT ROAD
Schneider ATS22D17Q ATS22 – 17A ALTISTART SOFT ROAD by SCHNEIDER is a high-quality soft transmitters with Product Code: ATS22D17Q; Series: Altistart 22 Series Soft Roads; Class General Features: Moment Controlled, Functional Design, AC-1 Category By-Pass Controller, Advanced Digital Control
Place your order
Product Code: ATS22D17Q
Series: Altistart 22 Series Soft Roads
Class General Features: Moment Controlled, Functional Design, AC-1 Category By-Pass Controller, Advanced Digital Control
Product Description: Schneider ATS22D17Q, 14.8 ampe, 7.5 kW, softstarter (soft road)
Commemoration Current (A): 14.8 Ampere
Direct Connection Motor Power (KW): 7.5 kW
Delta Connection Motor Power (KW): 11 KW
MOMENT CONTROL: Adjustable voltage or torque ramp
Working temperature: lossless -10…+40 ° C (loss up to 50 ° C)
Number of poles: 3 phase control
Communication: Internal Modbus Communication
Entry and Output Units: 4 digital input, 2 relay output, 1 analog input (can be configured with PTC input)
BY-PASS Controller: Internal
Protection Class: Protection up to Class 30 in standard applications
Standards: Fully compatible with CE directives
Certificates: IEC/EN 60947-4-2, Class A EMC, CE, UL, CSA, C-Tick, GOST, CCC
Connection System: Direct or Delta Connection
Motor Protection System: Thermal Motor Protection
Size (mm): 130x169x265
