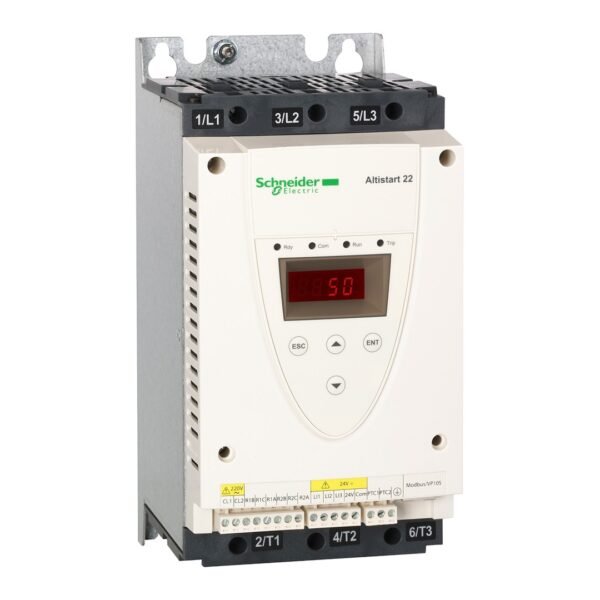

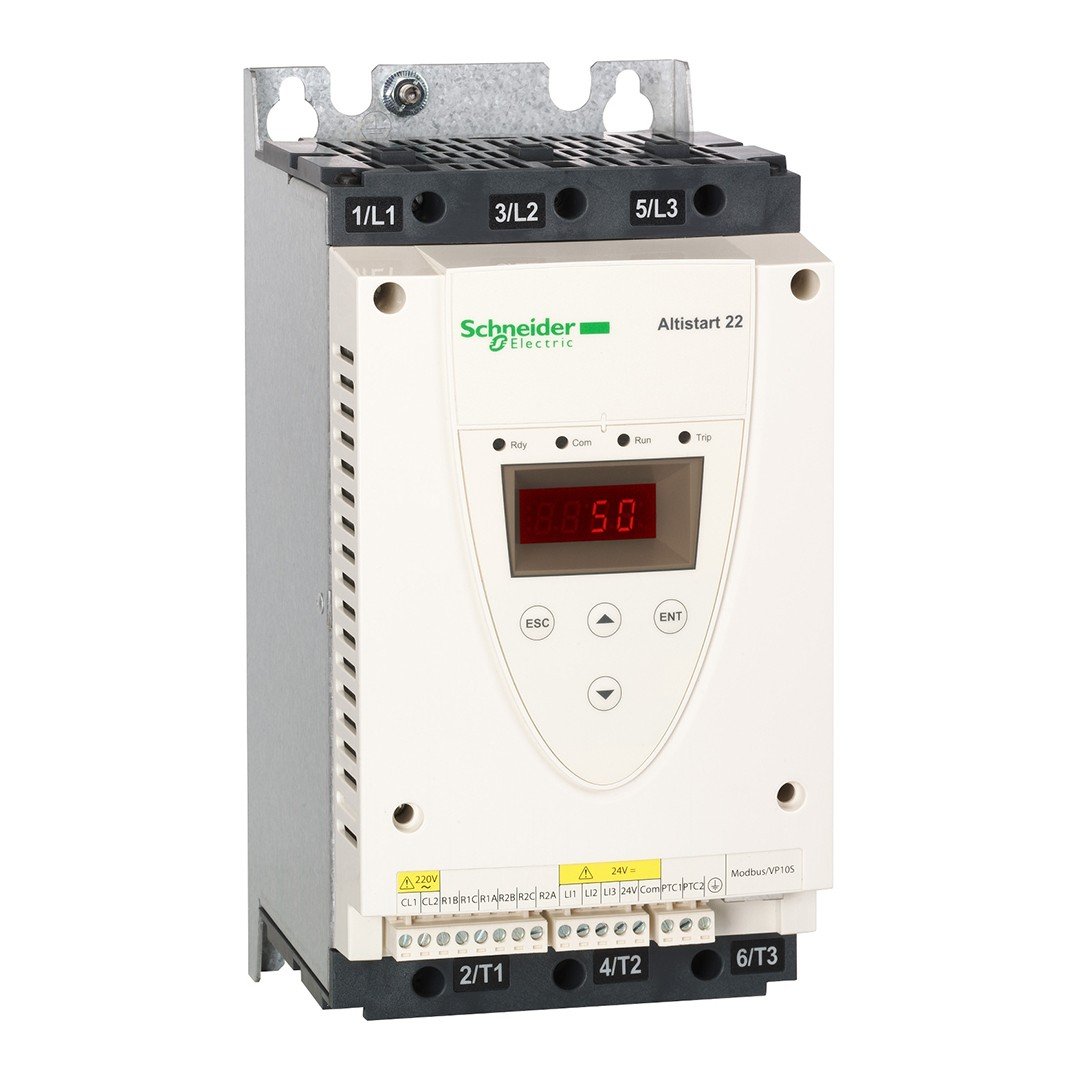

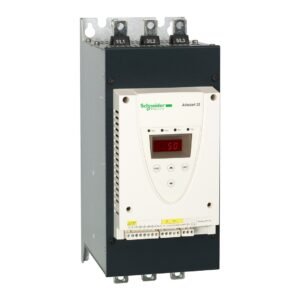

Schneider ATS22D47Q 22KW 42A SOFT ROAD

Product series
:
Altistart 22
Product or component type
:
Soft road
Product destination
:
Asynchronous motors
Product Special Application
:
Pumps and Fans
Component name
:
ATS22
Network Network of Phase
:
3 phases
[US] Nominal Nutrition Voltage
:
230 … 440 V – 15 … 10 %
Motor Power KW
:
11 KW 230 V
22 KW 400 V
22 KW 440 V
Factory setting current
:
42 A
Power distribution in W
:
48 W for standard applications
Use category
:
AC-53A
Start -up type
:
Moment Control with Moving (current is limited to 3.5)
ICL ROAD VALUE
:
For 47 A, the connection on the motor supply line for standard applications
IP protection degree
:
IP20
Complementary features
Assembly style
:
Cooling block
Usable Function
:
Internal bypass
Feeding voltage limits
:
195… 484 V
Feeding frequency
:
50 … 60 Hz – 10 … 10 %
Network frequency
:
45 … 66 Hz
Device connection
:
Motor Delta Terminals
In the motor feeding line
Control circuit voltage
:
230 V – 15 … 10 % 50/60 Hz
Control circuit consumption
:
20 W
Digital output number
:
2
Digital output type
:
Relay outputs R1 230 V runs, alarm, opening, opening, stopping, launched, ready c/o
Relay outputs R2 230 V works, alarm, opening, opening, stopped, started, starting, ready c/o
Minimum switching current
:
12 V DC (relay outputs)
Maximum switching current
:
5 A 250 V AC resistant 1 relay outputs
5 A 30 V DC resistant 1 relay outputs
2 A 250 V AC Inductive 0.4 20 ms relay outputs
2 A 30 V DC Inductive 7 MS relay outputs
Number of digital inputs
:
3
Digital entry type
:
(LI1, LI2, LI3) Logic, 5 ma 4.3 kohm
Digital entry voltage
:
24 V <= 30 V Digital entrance logic : Positive Logik LI1, LI2, LI3 0 In case: <5 V and <= 2 ma 1 in the case:> 11 V,> = 5 ma
Output current
:
0.4 … 1 ICL adjustable
PTC Probe Input
:
750 ohm
Communication Port Protocol
:
Modbus
Connector type
:
1 RJ45
Communication data connection
:
Sherry
Physical interface
:
RS485 Multiple sockets
Training speed
:
4800, 9600 or 19200 BPS
Installed device
:
31
Protection type
:
Phase error: line
Thermal protection: engine
Thermal protection: roadwater
Marking
:
CE
Type of cooling
:
Forced convection
Working position
:
Vertical +/- 10 degrees
Height
:
265 mm
Width
:
130 mm
Depth
:
169 mm
Product weight
:
7 kg
Motor Power Range AC-3
:
7… 11 kW 200… 240 V 3 phase
15… 25 kW -380… 440 V 3 phase
Motor road
:
Soft Starter
