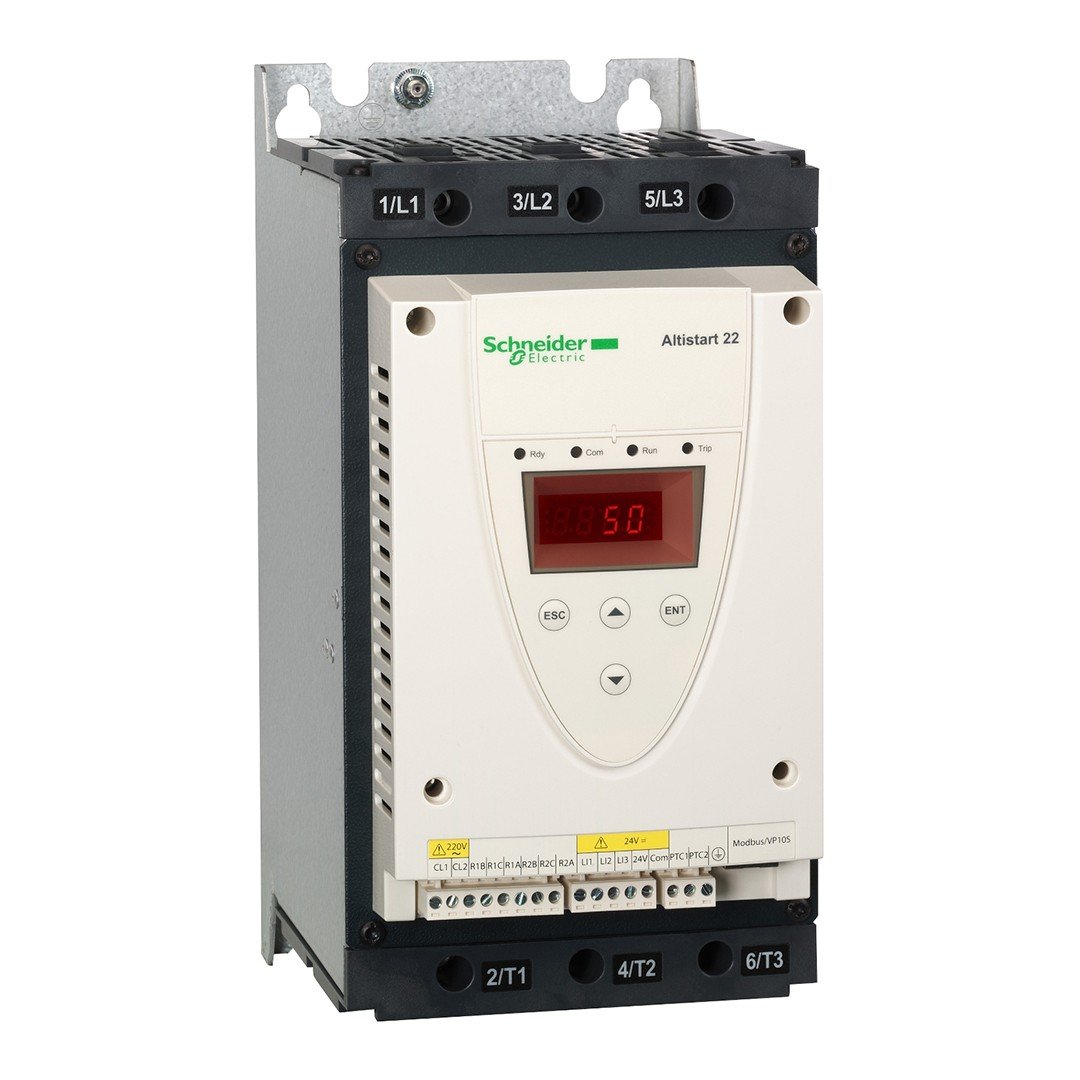

Schneider ATS22D62Q ALTISTART ATS22 – 57A SOFT ROAD

Product Code: ATS22D62Q
Series: Altistart 22 Series Soft Roads
Class General Features: Moment Controlled, Functional Design, AC-1 Category By-Pass Controller, Advanced Digital Control
Product Description: Schneider ATS22D62Q, 57 Ampe, 30 kW, Softstarter (Soft Cooperative)
Commemoration Current (A): 57 Ampere
Direct Connection Engine Power (KW): 30 kW
Delta Connection Motor Power (KW): 55 kW
MOMENT CONTROL: Adjustable voltage or torque ramp
Working temperature: lossless -10…+40 ° C (loss up to 50 ° C)
Number of poles: 3 phase control
Communication: Internal Modbus Communication
Entry and Output Units: 4 digital input, 2 relay output, 1 analog input (can be configured with PTC input)
BY-PASS Controller: Internal
Protection Class: Protection up to Class 30 in standard applications
Standards: Fully compatible with CE directives
Certificates: IEC/EN 60947-4-2, Class A EMC, CE, UL, CSA, C-Tick, GOST, CCC
Connection System: Direct or Delta Connection
Motor Protection System: Thermal Motor Protection
Size (mm): 145x207x295
