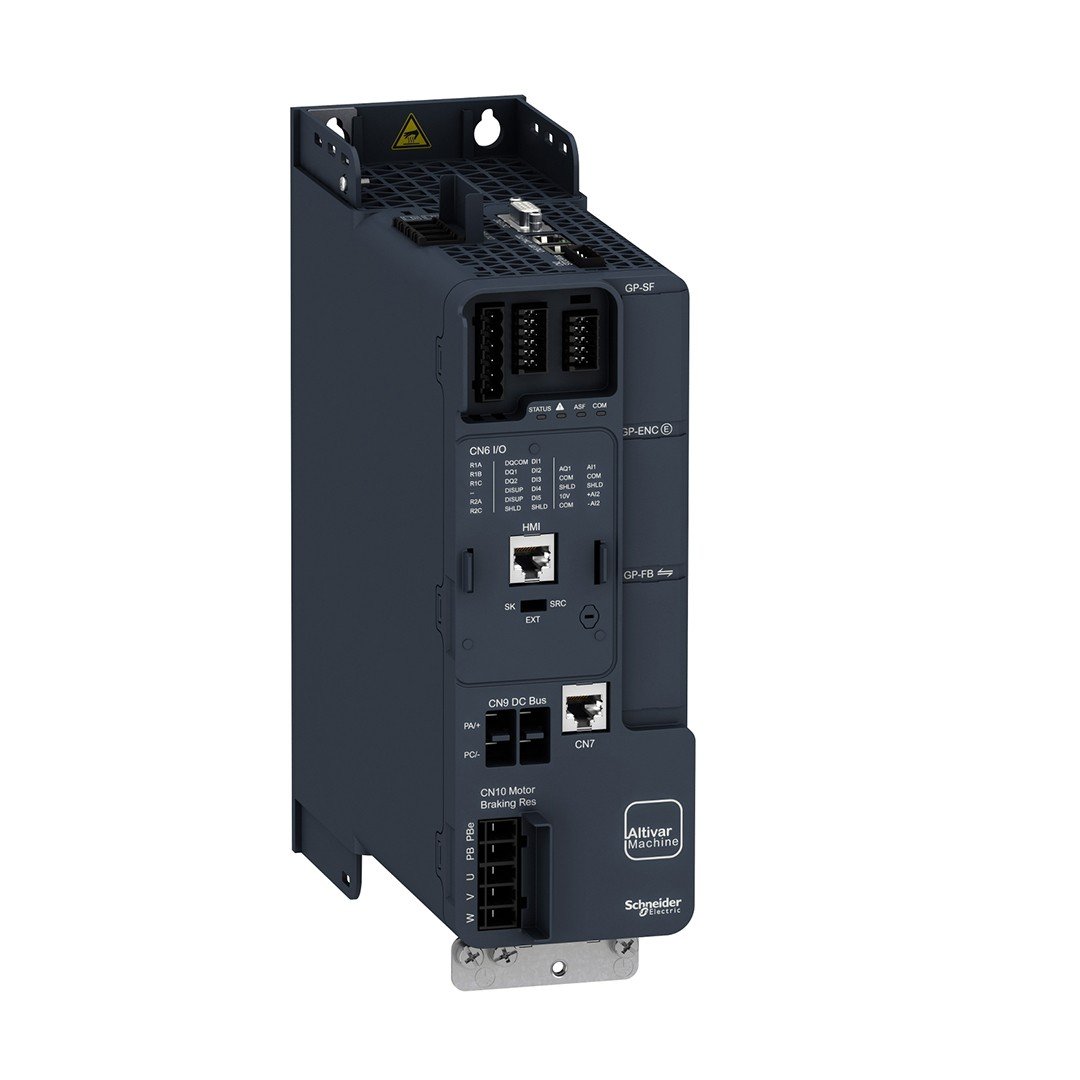

Schneider ATV340U22N4 2.2 kW Trifase speed control device

Product Series Altivar Machine ATV340
Product or component type variable speed drive
Product Special Application Machine
model standard type
Assembly board assembly
Communication Port Protocol Modbus Series
Option Card Communication Module, Profibus DP v1
Communication Module, Profinet
Communication Module, Devicenet
Communication Module, Canopen
Communication Module, Ethercat
Network of Phase Networks 3 Phase
Feeding frequency 50 … 60 Hz – 5
[US] Nominal Nutrition Voltage 380 … 480 V – 15 … 10
Nominal output current 5.6 A
Normal requirement for motor power kW 3 kW
Heavy condition for 2.2 kW
Motor power is normal for HP 3 HP
Heavy condition for 3 HP
EMC Filter Class C3 EMC Filter Integrated
IP Protection Class IP20
Number of digital inputs 5
Digital Input Type PTI Programmable as a coup input: 0 30 KHz, 24 V DC (30 V)
DI1 … DI5 Secure Torque Closing, 24 V DC (30 V), Impedance: 3.5 Kohm
programmable
NUMBER OF PRESSET SPEEDS 16 PREPRETE SPEED
Digital Outputs Number 2.0
Digital output type programmable output DQ1, DQ2 30 V DC 100 MA
Number of analogs 2
Analog input type AI1 Software-Related Current: 0 … 20 MA, Impedance: 250 ohm, resolution 12 bit
AI1 Software-Configurable Temperative Probe Or Water Level Sensor
AI1 Software-Related Voltage: 0 … 10 V DC, Impedance: 31.5 Kohm, resolution 12 bit
AI2 Software -Released Voltage: – 10 … 10 V DC, Impedance: 31.5 Kohm, resolution 12 bit
analog output number 2
Analogue output type software-released voltage AQ1: 0 … 10 V DC Impedance 470 ohm, resolution 10 bit
Software-Related Current AQ1: 0 … 20 MA Impedance 500 OHM, resolution 10 bit
Relay output number 2
Output voltage power feeding voltage
Relay output type relay outputs R1A
Relay outputs R1C Electrical Resistance 100000 Cycles
Relay outputs R2A
Relay outputs R2C Electrical Durability 100000 Cycles
Maximum switching current relay output R1C resistant load, cos phi 1: 3 a -de 250 V AC
Relay output R1C resistant load, cos phi 1: 3 a -de 30 V dc
Inductive load on R1C, COS Phi 0.4 and L R 7 MS: 2 A -DE 250 V AC
Inductive load on R1C, COS Phi 0.4 and L R 7 MS: 2 A -DE 30 V DC
Relay output R2C resistant load, cos phi 1: 5 A -de 250 V AC
Relay output R2C resistant load, cos phi 1: 5 a -de 30 V dc
Inductive load on R2C, COS Phi 0.4 and L R 7 MS: 2 A -DE 250 V AC
Inductive load on R2C, COS Phi 0.4 and L R 7 ms: 2 A -DE 30 V DC
Minimum switching current relay output R1B: 5 MA -E 24 V DC
Relay output R2C: 5 MA -E 24 V DC
Physical Interface 2 String RS 485
Connector type 1 RJ45
Access Method Slave Modbus Rtu
Transmission speed 4.8 kbit sec
9.6 kbit sec
19,2 kbit sec
38.4 kbit sec
Transmission Framework RTU
Number of Addresses 1 247
Data format 8 bit, configurable single, double or without parity
No polarization type impedance
4 dial work is possible correct
asynchronous motor control profile fixed torque standard
Optimum Moment Mode
Variable moment standard
Synchronous Motor Control Profile Reluctance Motor
Fixed magnetic engine
DEPROVEMENT DEGREE 2
Maximum output frequency 0,599 kHz
acceleration and slowdown ramps can be adjusted separately between 0.01 … 9999 seconds
S, U or customized
Motor slip compensation can be suppressed
AUTOMATICS ALL KINDING LOAD
Continuous magnetic engine law is not available
Adjustable
Switching Frequency 2 … 16 kHz adjustable
4 … 16 kHz depreciation factor
Nominal Switching Frequency 4 KHz
With DC Injection until it stops
Brake cutter integrated correct
Line flow 6.6 A -DE 380 V (Normal condition)
5.3 A -DE 480 V (Normal Condition)
8.4 A -DE 380 V (heavy condition)
6.6 A -DE 480 V (heavy condition)
Line current 8.4 A -de 380 V line without line coil (heavy condition)
6.6 A -DE 480 V line coil (heavy condition)
With 6.6 A -de 380 V external line coil (normal condition)
5.3 A -de 480 V External line coil (normal condition)
5.1 A with 380 V external line coil (heavy condition)
4.1 A -de 480 V with external line coil (heavy condition)
Maximum inlet current 8.4 A
Maximum output volt AJI 480 V
visible power
