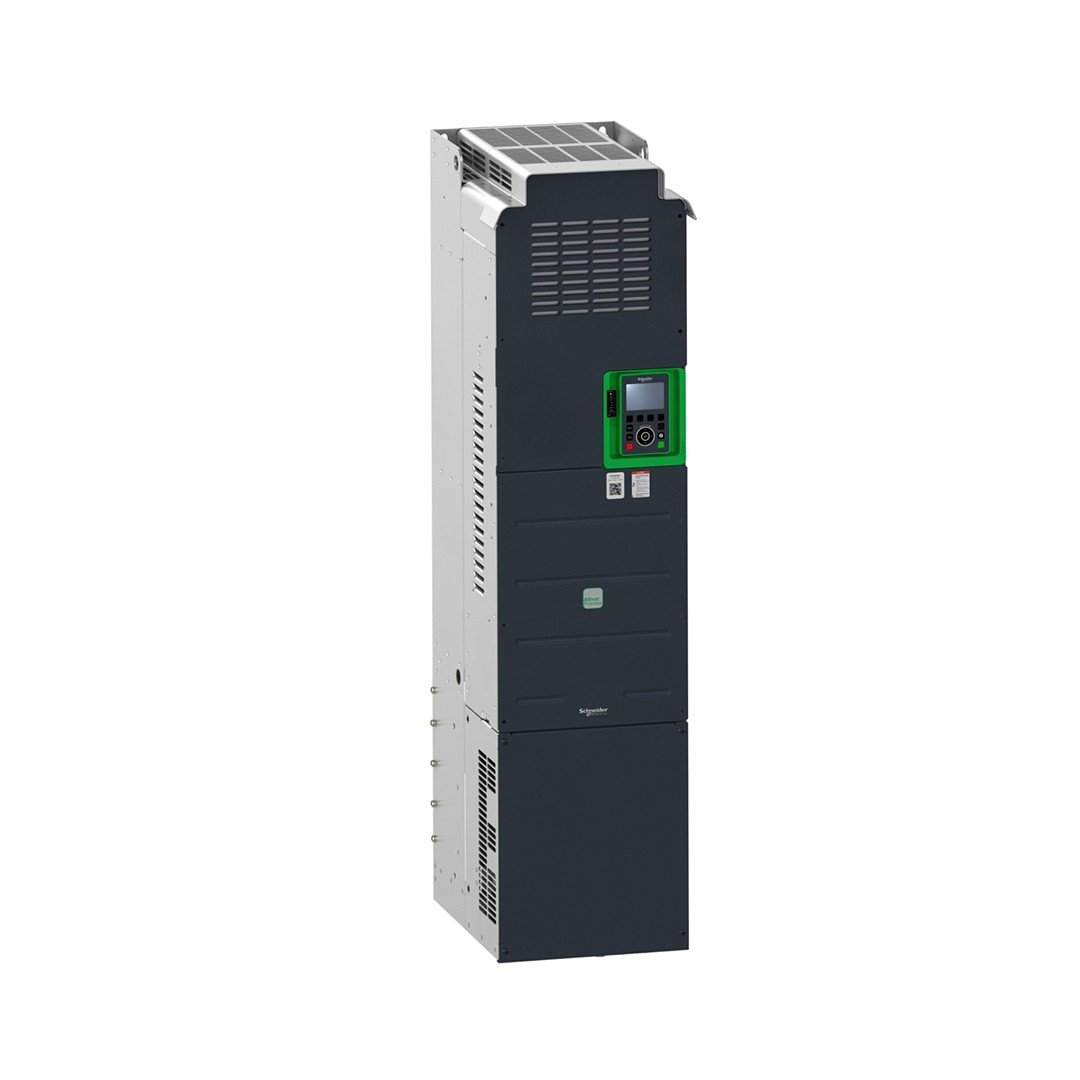

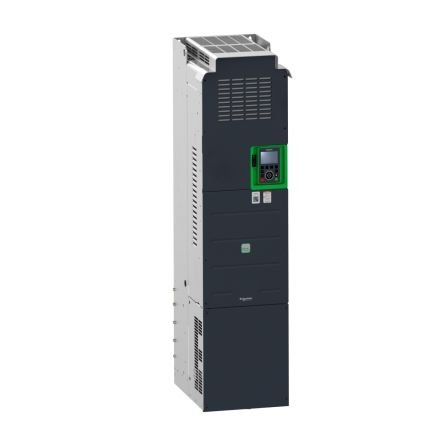

Schneider ATV930C11N4 110KW speed controller

Product series
:
Altivar Process ATV900
Device application
:
Industrial Application
Product or component type
:
Variable Speed ​​Driver
Product destination
:
Synchronous motors
Asynchronous motors
Product Special Application
:
Industrial process
Number of Network Phase
:
3 phases
Monophase
Assembly type
:
Wall -mounted
Communication Port Protocol
:
Ethernet IP MODBUS TCP
Modbus
[US] Nominal Nutrition Voltage
:
380 … 480 V – 15 … 10
Motor Power KW
:
Normal condition for 110.0 kW
Heavy condition for 90.0 kW
Motor Power HP
:
Normal condition for 150.0 HP
Heavy condition for 125.0 hp
Continuous output current
:
Normal requirement for 4 kHz 211 A -de
173 a -de 4 kHz heavy condition for
EMC filter
:
Integrated
With EMC Plate Option
IP Protection Class
:
IP21
Protection class
:
Ul type 1
Option module
:
Yuva A: Profibus DP v1 for communication module
Yuva A: Profinet for communication module
Yuva A: Devicenet for communication module
Yuva A: Ethercat for communication module
Yuva A: Canopen Daisy chain for communication module RJ45
Yuva A: Canopen Sub-D 9 for communication module
Yuva A: Canopen screw terminals for communication module
Nest A Yuva B Yuva C: Digital and Analog G çi Expansion Module
Yuva A Yuva B Yuva C: Output Relay Expansion Module
Yuva B: 5 12 V Digital ENCODER INTERVIE MODULE
Yuva B: Analog Encoder Interface Module
Yuva B: Solving Enkoder Interface Module
Asynchronous motor control profile
:
Fixed torque standard
Variable moment standard
Optimum Moment Mode
Maximum output frequency
:
599 Hz
Switching frequency
:
1 … 8 khz adjustable
2.5 … 8 kHz depreciation factor
Nominal switching frequency
:
2.5 khz
Line flow
:
201.0 A -de 380 V (Normal Condition)
170,0 A -DE 380 V (heavy condition)
165,0 A -DE 480 V (Normal Condition)
143,0 A -DE 480 V (heavy condition)
Visible power
:
380 … 480 V (Normal)
102.6 kVA 380 … 480 V (heavy condition)
Maximum temporary current
:
60 S (Normal Condition)
60 s (heavy condition) during 259.5
Network frequency
:
50 … 60 Hz
Possible line ISC
:
50 KA
Complementary features
Number of digital inputs
:
10
Relay output type
:
Configurable Relay Lojiki R1: Electrical durability of error relay 100000 Cycles
Configurable Relay Lojiki R2: Electrical resistance to Sequence Relay 1000000 Cycles
Configurable Relay Lojiki R3: Electrical resistance to Sequence Relay 1000000 Cycles
Physical interface
:
Ethernet
2 wire RS 485
Connector type
:
2 RJ45
1 RJ45
Access method
:
SLAVE MODBUS TCP
Transmission rate
:
10, 100 Mbits
4.8 KBPS
9600 bit S
19200 bit S
Transmission frame
:
Rtu
Number of Addresses
:
1 247
Data format
:
8 bit, configurable single, double or without parity
Polarization type
:
No impedance
Acceleration and slowing ramps
:
Linear Adjustable Separately from 0.01 … 9999 S
S, U or customized
Motor slip compensation
:
Adjustable
AUTOMATICS ALL KINDING LOAD
Compressible
Continuous magnetic engine law is not available
Braking until it stops
:
With DC Injection
Maximum input current
:
201.0 A
Maximum output voltage
:
480.0 V
Relative symmetrical network frequency tolerance
:
5
Base load current at high load
:
173,0 A
Low -overload base load current
:
211,0 A
Protection type
:
Thermal protection: engine
Secure torque closing: engine
Motor Phase Cutting: Motor
Thermal protection: driver
Secure torque closing: Driver
Overheating: Driver
Over Current Between Output Phase and Earth: Driver
Overload of the output voltage: Driver
Short Circuit Protection: Driver
Motor Phase Cutting: Driver
Excessive voltages in DC data: Driver
Line Feeding Excess Tension: Driver
Low Feeding Low Voltage: Driver
Line Feeding Phase Loss: Driver
Excessive Speed: Driver
Cutting in the control circuit: drive
Quantity per set
:
1
Width
:
320 mm
Height
:
1205 mm
Depth
:
393 mm
Product weight
:
104 kg
Electric connection
:
Line side: screw terminal 2 x 50 … 3 x 120 mm² 2 x awg 1 0 … 2 x 300 kcmil
DC BARA: Screw terminal 0.5 … 1.5 mm² AWG 20 … AWG 16
Control: Screw terminal 0.5 … 1.5 mm² AWG 20 … AWG 16
Transmission rate
:
Ethernet IP MODBUS TCP for 10, 100 Mbit S
4.8, 9.6, 19,2, 38.4 kbit Sn Modbus Series
Data format
:
8 bit, configurable single, double or without parity Modbus series for
Polarization type
:
Modbus series for no impedance
Number of Addresses
:
Modbus series for 1 247
Local signaling
:
Local Diagnostic: 3 LED (single two color)
5 LED (Two Color)
2 LEDs (two color)
1 LED (Red)
Insulation
:
Terminals between power and control
