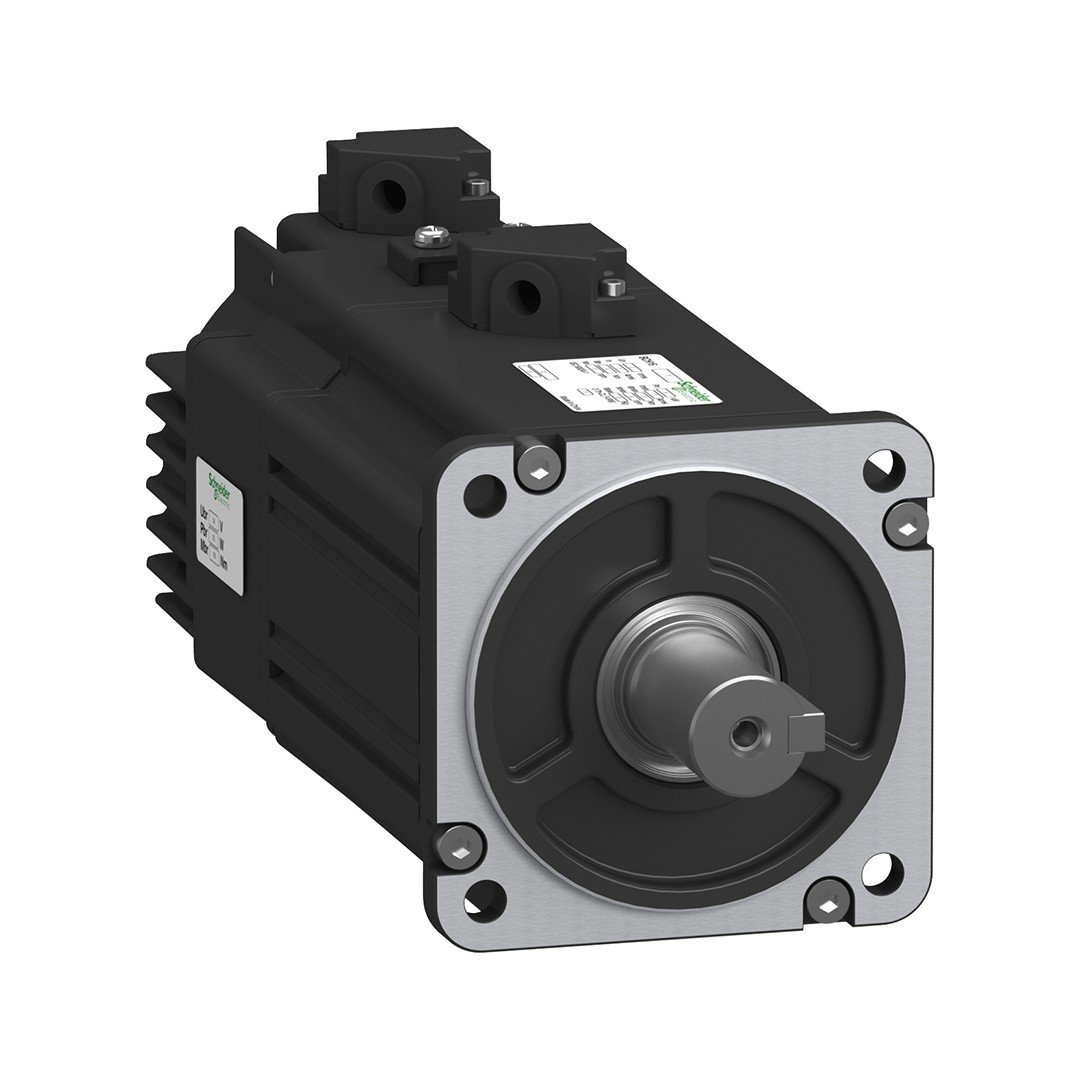

Schneider BCH16HF07332F5C2 BCH16 80mm 750W 3000RPM 23bit Brake 19mm Servo Motor

Serial compatibility
:
Easy Lexium 16
Product or component type
:
Servo-motor
Product group
:
Bch16
Complementary features
Maximum mechanical speed
:
5000 RPM
[US] Nominal Nutrition Voltage
:
220 V
Network Network of Phase
:
3 phases
Constant stop current
:
4.3 A
Constantly standing torque
:
2,39 N.M for LXM16D 7,81 A, 220 V, monophase
Constant power
:
750 W
Hill stopping torque
:
7,16 N.M for LXM16D 7,81 A, 220 V, Monophase
Nominal output power
:
For 750 W, LXM16D is 7,81 A, 220 V, monophase
Nominal torque
:
2,39 N.M for LXM16D 7,81 A, 220 V, monophase
Nominal speed
:
LXM16D for 3000 rpm 7,81 A, 220 V, monophase
Maximum current river
:
LXM16D for 15.3 A 0.75 kW, 220 V
Maximum permanent current
:
14 A
Product compatibility
:
LXM16D Motion Servo Motors Motor -0.75 kW, 220 V, Monophase
Shaft tip
:
Parallel key
Second shaft
:
Without the second shaft tip
Shaft diameter
:
19 mm
Shaft length
:
22 mm
Switch width
:
6 mm
Back feeding type
:
23 bit high resolution encoder
Holding torque
:
3.0 N.M Internal
Assembly support
:
Asian standard flange
Engine flange size
:
80 mm
Torque constant
:
0.56 n.m/a -de 20 ° C
Reabsorial emf constant
:
20 ° C per 37,3 V/KRPM
Rotor
:
1.64 kg.cm²
Stator resistance
:
20 ° C per 1,51 ohm
Stator inductance
:
20 ° C per 9.2 MH
Stator electric time constant
:
20 ° C per 6.09 ms
Maximum radial power fr
:
221.48 n -3000 rpm
Maximum Axial Power FA
:
61.74 n
Brake
:
10.1 W
Type of cooling
:
Natural convection
Length
:
175.3 mm
Average bracelet diameter
:
70 mm
Average bracelet depth
:
3 mm
Number of assembly holes
:
4
Assembly hole diameter
:
6.5 mm
Circular Diameter of the Mounting Hole
:
90 mm
Shaft Support Flange Distance
:
36 mm
Width
:
80 mm
Height
:
93 mm
Depth
:
175.3 mm
Product weight
:
4.1 kg
