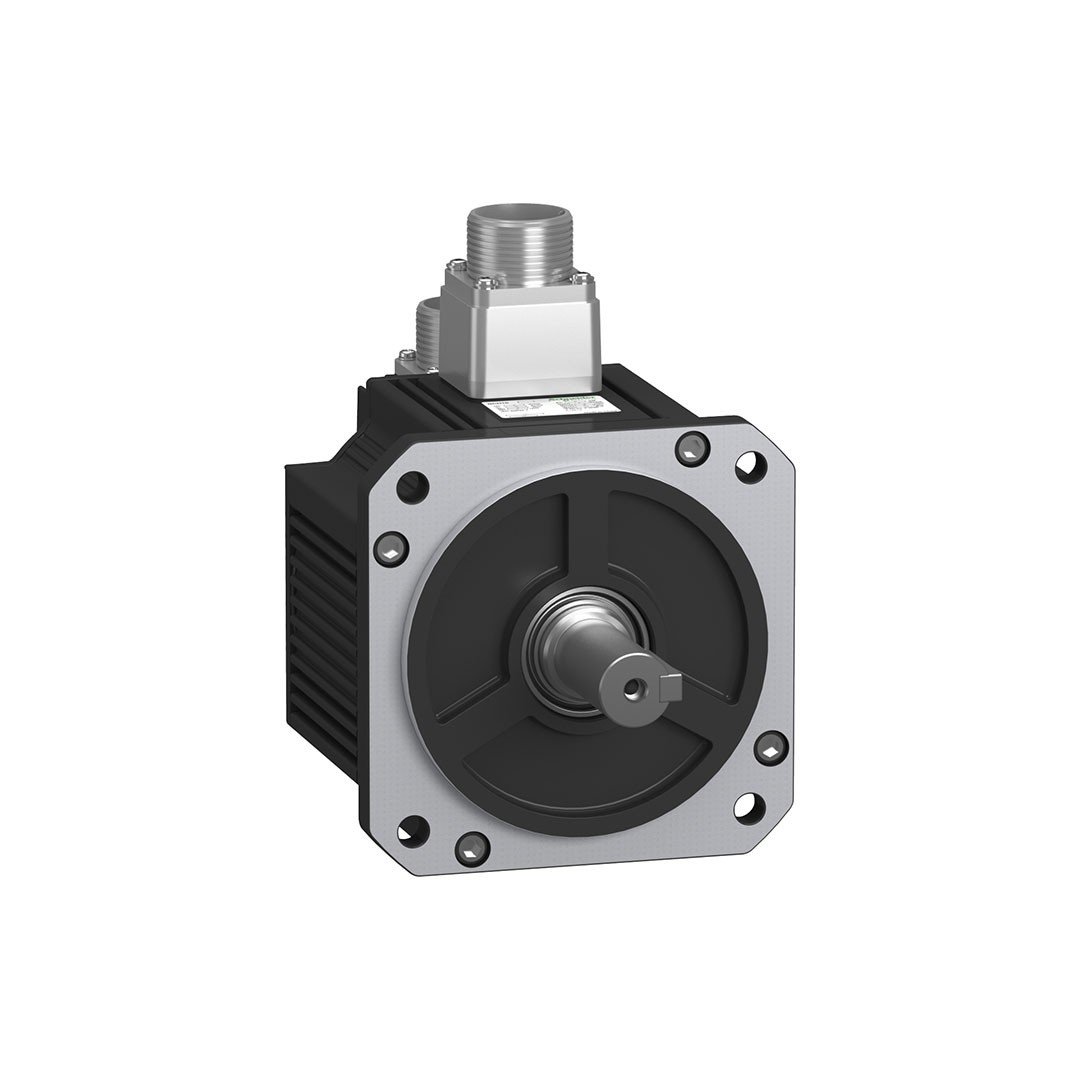

Schneider BCH16HM10232A6C2 BCH16MOTOR 1.0KW H130-22 2000 220V 23 servo motor

Serial Compliance Easy Lexium 16
Product Group Bch16
Product or component type servo motor
maximum mechanical speed 3000 rpm
[US] Nominal Nutrition Voltage 220 V
Network of Phase Networks 3 Phase
Continuous stop current 5.2 A
Continuous stop torque 4.77 N.M LXM16D for 10,13 A, 220 V, monophase
Continuous Power 1000 W
Hill Durma Torku 14,31 N.M LXM16D for 10,13 A, 220 V, Monopase
Nominal output power for 1000 W for LXM16D 10,13 A, 220 V, monophase
Nominal torque 4.77 N.M LXM16D for 10,13 A, 220 V, monophase
Nominal Speed ​​for 2000 RPM LXM16D 10,13 A, 220 V, monophase
Maximum Current IRMS 21.9 A LXM16D -1,0 kW, 220 V
Maximum Permanent Current 15.6 A
Product Compatibility LXM16D Motion Servo Motors Motor -1 KW, 220 V, Monophase
shaft tip parallel key
The second shaft without the second shaft tip
Shaft diameter 22 mm
Shaft length 35 mm
Key width 8 mm
Refund Type 23 Bits High Resolution Coder
without braking
Holding Torku 15.0 N.M
Assembly support Asia Standard Flange
engine flange size 130 mm
Electric Connector Connector MIL
torque constant 0.92 n.m/a -de 20 ° C
Recommendation constant 60.8 V/Krpm 20 ° C per EMF
Rotor Authority 10.88 kg.cm²
Stator resistance 20 ° C per ohm
Stator inductance 9.5 mh -20 ° C per MH
Stator Electrical Time Constitution 7.92 ms 20 ° C per ms
Maximum Radial Power Fr 578.2 N -2000 RPM
Maximum Axial Power FA 211,68 N
Type of Cool Natural Convection
Length 144.3 mm
average bracelet diameter 110 mm
Average Bracelet depth 6 mm
Number of assembly holes 4
assembly hole diameter 9 mm
Circular diameter of the assembly holes is 145 mm
Shaft Support Flanned Distance 50 mm
Width 130 mm
height 183.4 mm
Depth 144.3 mm
Product weight 5.7 kg
