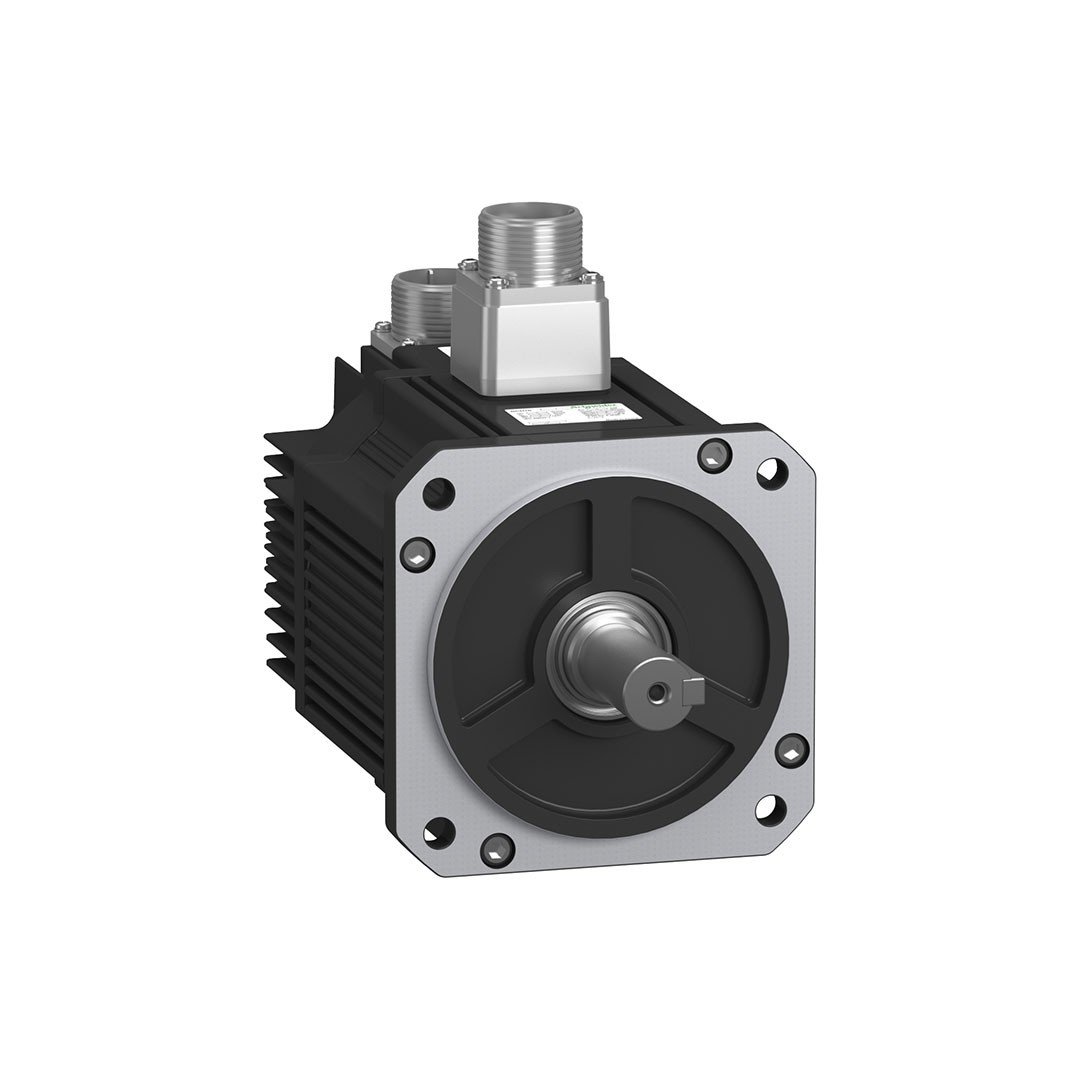

Schneider BCH16HM15230F6C2 1.5KW H130-22 2000 B 220V BCH16 Servo Motor

Serial Compliance Easy Lexium 16
Product Group Bch16
Product or component type servo motor
maximum mechanical speed 3000 rpm
[US] Nominal Nutrition Voltage 220 V
Network of Phase Networks 3 Phase
Continuous stop current 7.9 A
Continuous stop torque 7,16 N.M LXM16D -14,43 A, 220 V, Monopase
Continuous Power 850 W
Tepe Durma Torku 21.48 N.M LXM16D -14,43 A, 220 V, Monopase
Nominal output power 850 W for LXM16D 14.43 A, 220 V, monophase
Nominal torque 5,39 N.M for LXM16D -14,43 A, 220 V, Monopase
Nominal Speed ​​for 1500 RPM LXM16D 14,43 A, 220 V, Monophase
Maximum Current IRMS for 24.9 A LXM16D -1,5 kW, 220 V
Maximum Permanent Current 18.1 A
Product Compatibility LXM16D Motion Servo Motors Motor 0.85 kW, 220 V, Monophase
shaft tip parallel key
The second shaft without the second shaft tip
Shaft diameter 22 mm
Shaft length 35 mm
Key width 8 mm
Back Feeding Type 2500 Incrementary Coder
With braking
Holding Torku 15.0 N.M internal
Assembly support Asia Standard Flange
engine flange size 130 mm
Electric Connector Connector MIL
torque constant 0.75 n.m/a -de 20 ° C
Recommendation constant 51.7 V/Krpm 20 ° C per EMF
Rotor Authority 14.78 kg.cm²
Stator resistance 0.65 ohm -20 ° C
Stator inductance 5.5 mh -20 ° C per mh
Stator Electrical Time Constitution 8.46 ms 20 ° C per ms
Maximum Radial Power Fr 498.82 N -2000 RPM
Maximum Axial Power FA 176,4 N
Brake Power In 19.6 W
Type of Cool Natural Convection
Length 196.9 mm
average bracelet diameter 110 mm
Average Bracelet depth 6 mm
Number of assembly holes 4
assembly hole diameter 9 mm
Circular diameter of the assembly holes is 145 mm
Shaft Support Flanned Distance 50 mm
Width 130 mm
height 183.4 mm
Depth 196.9 mm
Product weight 8.1 kg
