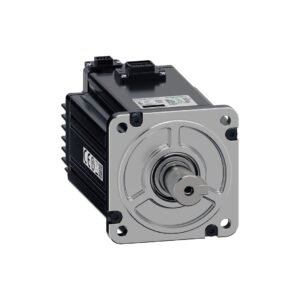

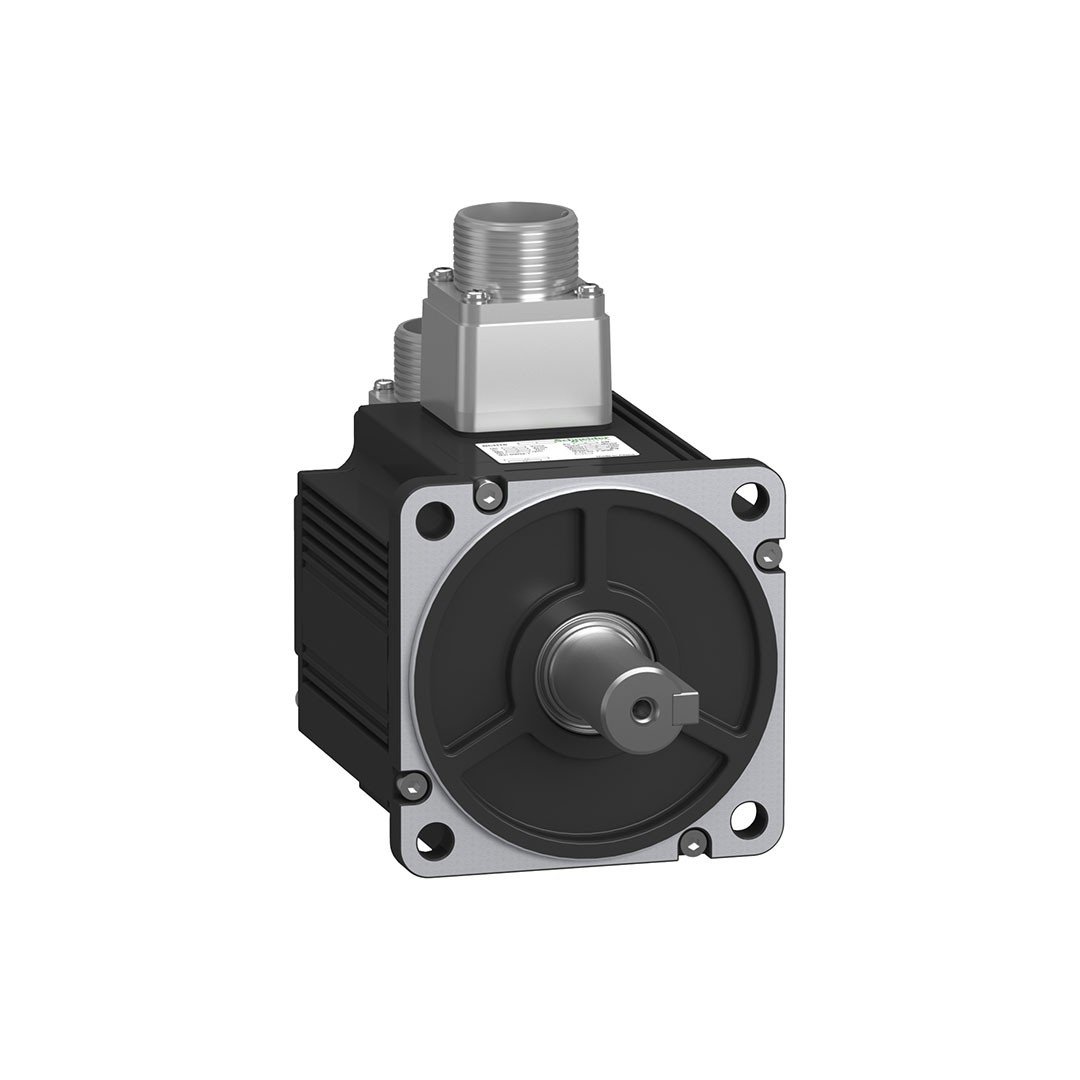

Schneider BCH16LJ10330A6C2 BCH16 100 MM SHAFT 22 MM 1,0KW LOW Atilet 3000RPM Servo Engine

Serial Compliance Easy Lexium 16
Product Group Bch16
Product or component type servo motor
maximum mechanical speed 5000 rpm
[US] Nominal Nutrition Voltage 220 V
Network of Phase Networks 3 Phase
Continuous stop current 6.6 A
Continuous stop torque 3.18 N.M LXM16D -10,13 A, 220 V, Monopase
Continuous Power 1000 W
Hill stop torque 9,55 N.M LXM16D for 10,13 A, 220 V, monophase
Nominal output power for 1000 W for LXM16D 10,13 A, 220 V, monophase
Nominal torque 3.18 N.M LXM16D for 10,13 A, 220 V, monophase
Nominal Speed ​​for 3000 RPM LXM16D 10,13 A, 220 V, Monophase
Maximum Current IRMS 21.9 A LXM16D -1,0 kW, 220 V
Maximum Permanent Current 21.8 A
Product Compatibility LXM16D Motion Servo Motors Motor -1 KW, 220 V, Monophase
shaft tip parallel key
The second shaft without the second shaft tip
Shaft diameter 22 mm
Shaft length 35 mm
Key width 8 mm
Back Feeding Type 2500 Incrementary Coder
without braking
Holding Torku 6.5 N.M
Assembly support Asia Standard Flange
engine flange size 100 mm
Electric Connector Connector MIL
torque constant 0.48 n.m/a -de 20 ° C
Recommendation constant 32 V/Krpm 20 ° C per EMF
Rotor Authority 2,65 kg.cm²
Stator resistance 20 ° C per 0.7 ohm
Stator inductance 4.3 mh -20 ° C
Stator Electrical Time Constitution 6.14 ms 20 ° C per ms
Maximum Radial Power Fr 343.98 N -3000 RPM
Maximum Axial Power FA 122,3 N
Type of Cool Natural Convection
Length 139 mm
Average Bracelet Diameter 95 mm
Average bracelet depth 3 mm
Number of assembly holes 4
assembly hole diameter 9 mm
The circular diameter of the assembly holes is 115 mm
Shaft Support Flanned Distance 50 mm
Width 100 mm
Height 153.4 mm
Depth 139 mm
Product weight 3.8 kg
