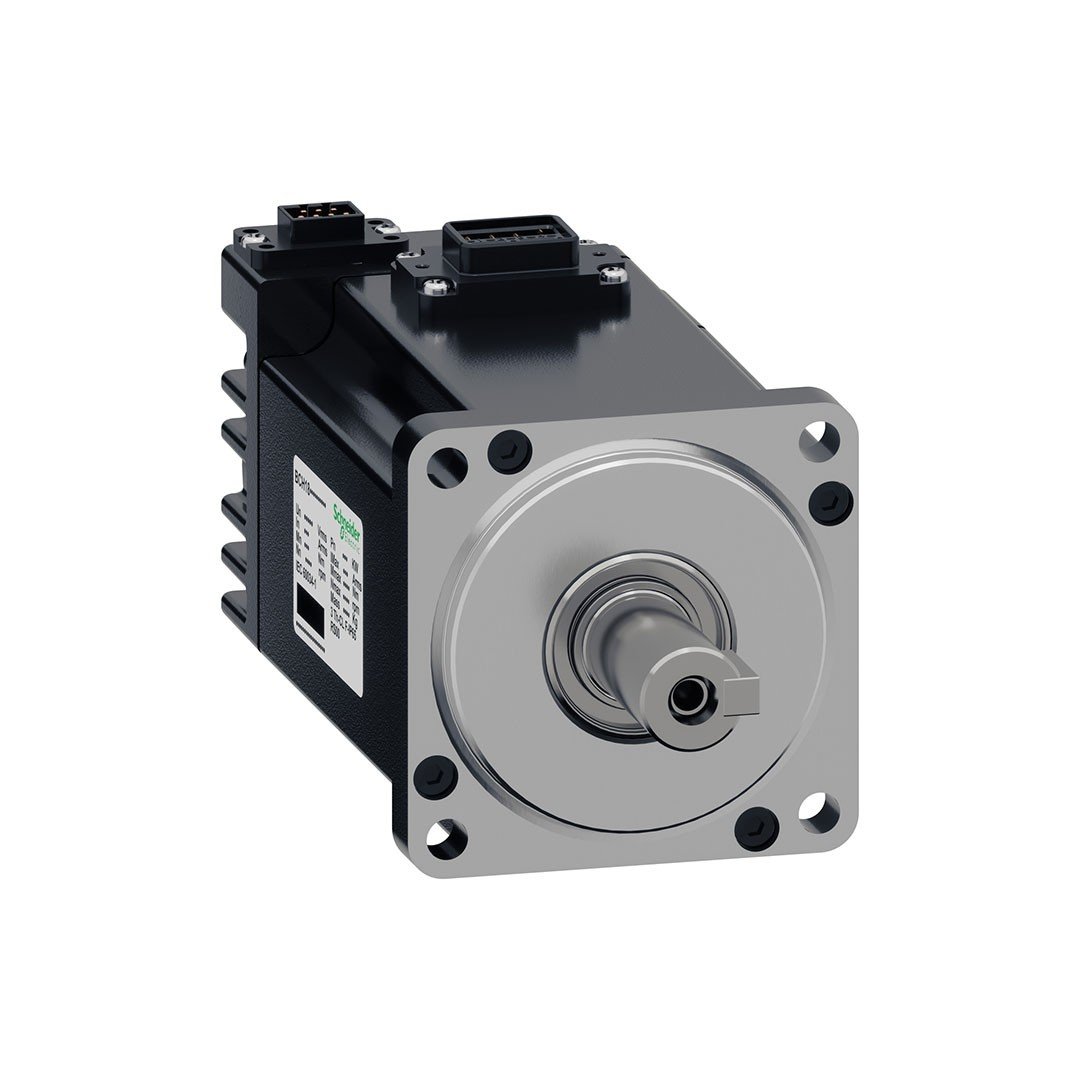

Schneider BCH18LD04332F5C EASY LEXİMUM 18 400W L60 23 BIT OPTO INC BK SERD

Serial Compliance Easy Lexium 18
Product Group Bch18
Product or component type servo motor
Maximum Mechanical Speed ​​6000,0 RPM
[US] Nominal Feeding Voltage 200 … 240 V
Network of Phase Networks 3 Phase
Continuous stop current 2.8 A
Continuous stop torque 1,27 N.M, 220 V, Monophase
Continuous Power 400 W
Hill Durma Torku 3,81 N.M, 220 V, Monopase
Nominal output power 400 W, 220 V, monophase
Nominal Tork 1,27 N.M, 220 V, Monopase
Nominal Speed ​​3000 RPM, 220 V, Monopase
maximum permanent current 8.5 A
shaft tip parallel key
Shaft diameter 14.0 mm
Shaft length 30.0 mm
Key width 5.0 mm
Back Feeding Type 23 Bits Optic Incremental Encoder
With braking
Holding Torku 2.0 N.M
Assembly support Asia Standard Flange
engine flange size 60 mm
Electric Connection 2 Connector Male/Female
torque constant 0.45 n.m/a -de 40 ° C
Recommendation constant 32.2 V/Krpm 40 ° C per EMF
Rotor Authority 0.31 kg.cm²
maximum radial power Fr 254 n
Maximum Axial Power FA 74 N
Length 132.3 mm
The number of assembly holes is 4.0
Circular diameter of the assembly holes 5.0 mm
Width 132.3 mm
height 60.0 mm
Depth 68.6 mm
Product weight 1.66 kg
ENKODER TYPE OPTIC ENCODER
