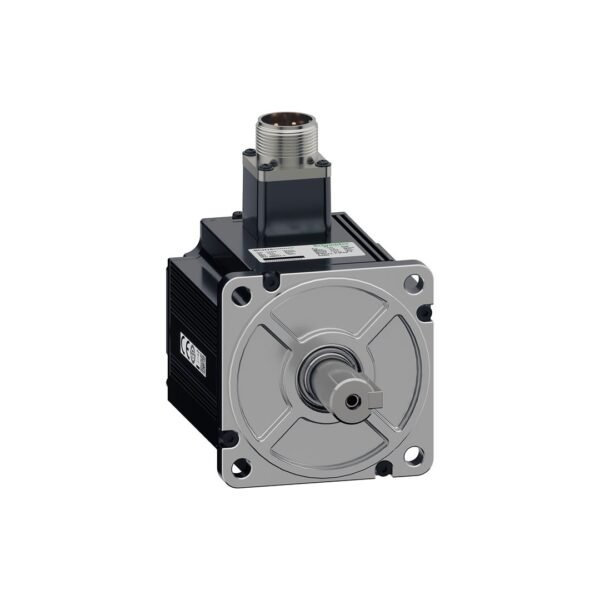

Schneider BCH18LH15332A6C EASY LEXİMUM 18 1.5 KW L100 23 BIT OPTO INC Servo Motor

Serial Compliance Easy Lexium 18
Product Group Bch18
Product or component type servo motor
Maximum Mechanical Speed ​​6000,0 RPM
[US] Nominal Feeding Voltage 200 … 240 V
Network of Phase Networks 3 Phase
Continuous stop current 9.2 A
Continuous Stop Torku 4,77 N.M, 220 V, Monopase
Continuous Power 1500 W
Hill Durma Torku 14.3 N.M, 220 V, Monopase
Nominal output power 1500 W, 220 V, monophase
Nominal torque 4,77 N.M, 220 V, monophase
Nominal Speed ​​3000 RPM, 220 V, Monopase
maximum permanent current 28.8 A
shaft tip parallel key
Shaft diameter 22.0 mm
Shaft length 45.0 mm
Key width 8.0 mm
Back Feeding Type 23 Bits Optic Incremental Encoder
without braking
Assembly support Asia Standard Flange
engine flange size 100 mm
Electric Connection 2 Connector Male/Female
torque constant 0.52 n.m/a -de 40 ° C
Recommendation constant 34.2 V/Krpm 40 ° C per EMF
Rotor Authority 2.09 kg.cm²
maximum radial power Fr 686 n
Maximum Axial Power FA 196 N
Length 159 mm
The number of assembly holes is 4.0
Circular diameter of the assembly holes 9.0 mm
Width 159.0 mm
height 100.0 mm
Depth 152.2 mm
Product weight 6.0 kg
ENKODER TYPE OPTIC ENCODE
