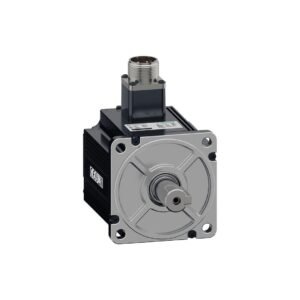

Schneider BCH18LH20332A6C EASY LEXİMUM 18 2KW L100 23 BIT OPTO INC Servo Motor

Serial Compliance Easy Lexium 18
Product Group Bch18
Product or component type servo motor
Maximum Mechanical Speed ​​6000,0 RPM
[US] Nominal Feeding Voltage 200 … 240 V
Network of Phase Networks 3 Phase
Continuous stop current 13.2 A
Continuous stop torque 6,37 N.M, 220 V, trifase
Continuous Power 2000 W
Hill Durma Torku 19,1 N.M, 220 V, Trifase
Nominal output power 2000 W, 220 V, trifase
Nominal torque 6,37 N.M, 220 V, trifase
Nominal Speed ​​3000 RPM, 220 V, Trifase
Maximum Permanent Current 41 A
shaft tip parallel key
Shaft diameter 22.0 mm
Shaft length 45.0 mm
Key width 8.0 mm
Back Feeding Type 23 Bits Optic Incremental Encoder
without braking
Assembly support Asia Standard Flange
engine flange size 100 mm
Electric Connection 2 Connector Male/Female
torque constant 0.48 n.m/a -de 40 ° C
Recommendation constant 32.8 V/Krpm 40 ° C per EMF
Rotor Authority 2,64 kg.cm²
maximum radial power Fr 686 n
Maximum Axial Power FA 196 N
Length 174 mm
The number of assembly holes is 4.0
Circular diameter of the assembly holes 9.0 mm
Width 174.0 mm
height 100.0 mm
Depth 152.2 mm
Product weight 10,16 kg
ENKODER TYPE OPTIC ENCODER
