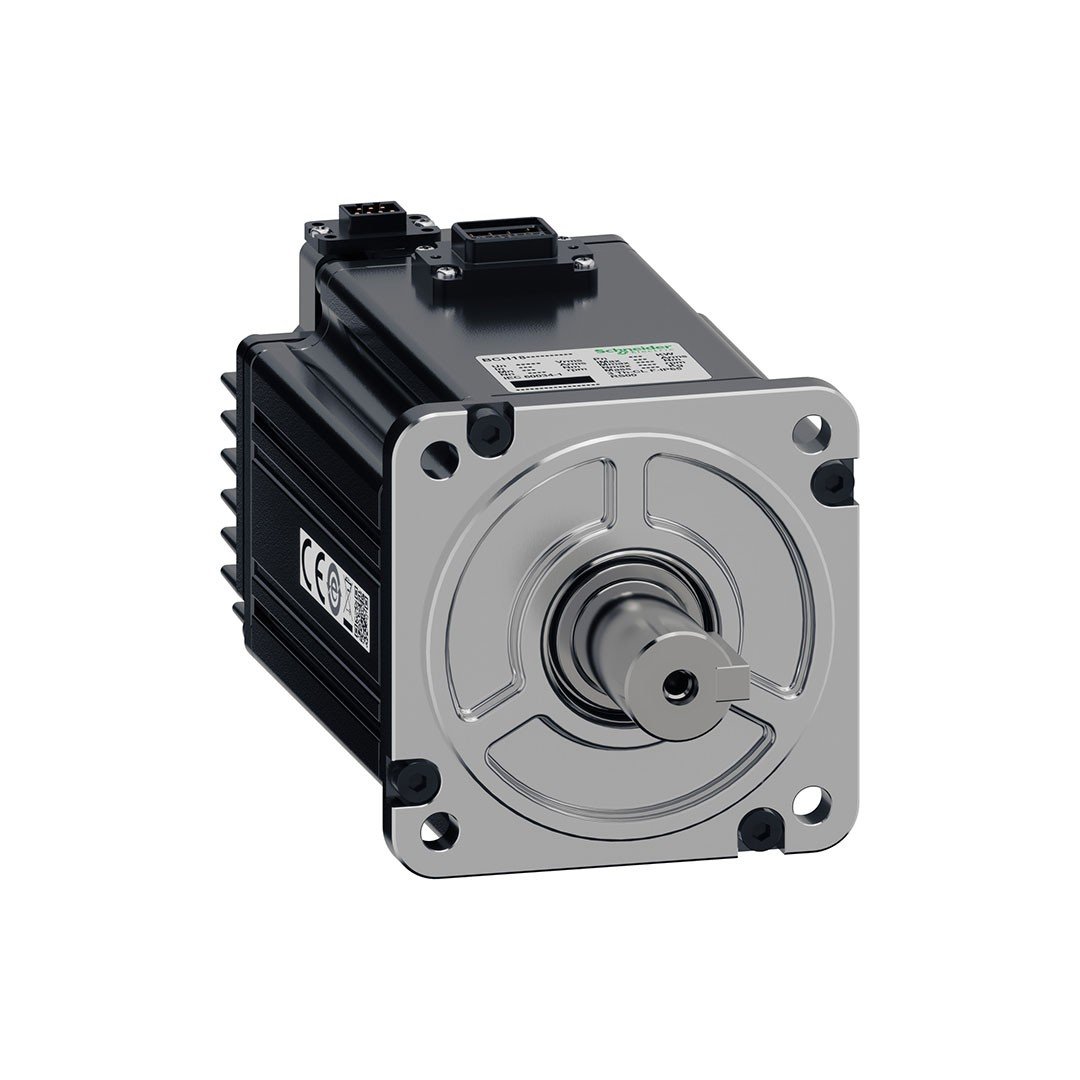

Schneider BCH18MF04332F5C EASY LEXİMUM 18 400W M80 23 BITS OPTO INC BK Servo Engine

Range Compatibility Easy Lexium 18
Device Short Name Bch18
Product Or Component Type Servo Motor
Maximum Mechanical Speed ​​6000.0 RPM
[US] REDPED SUPPLY VOLTAGE 200 … 240 V
Network Number of Phases 3 PHASES
Continuous Stall Current 2.6 A
Continuous Stall Torque 1.27 N.M, 220 V, Single Phase
Continuous Power 400 W
Peak Stall Torque 4.45 N.M, 220 V, Single Phase
Nominal Output Power 400 W, 220 V, Single Phase
Nominal Torque 1.27 N.M, 220 V, Single Phase
Nominal Speed ​​3000 RPM, 220 V, Single Phase
Maximum Permanent Current 9.3 A
Shaft end parallel key
Shaft Diameter 14.0 mm
Shaft Length 30.0 mm
Key Width 5.0 mm
Feedback Type 23 Bits Optic Incremental Encoder
Holding Brake with
Holding Torque 3.0 N.M
Mounting Support Asian Standard Flange
Engine flange you 80 mm
Electrical Connection 2 Connectors Male/Female
Torque Constant 0.49 N.M/A AT 40 ° C
Back EMF Constant 35.0 V/Krpm horse 40 ° C
Rotor İnertia 1.33 kg.cm²
Maximum Radial Force Fr 392 N
Maximum Axial Force FA 147 n
Length 136.8 mm
NUMBER OF MOUNTING HOUSES 4.0
Circle Diameter of the Mounting Houles 6.5 mm
Width 136.8 mm
Height 80.0 mm
Depth 88.6 mm
Net Weight 3.24 kg
Encoder Type Optic Encoder
