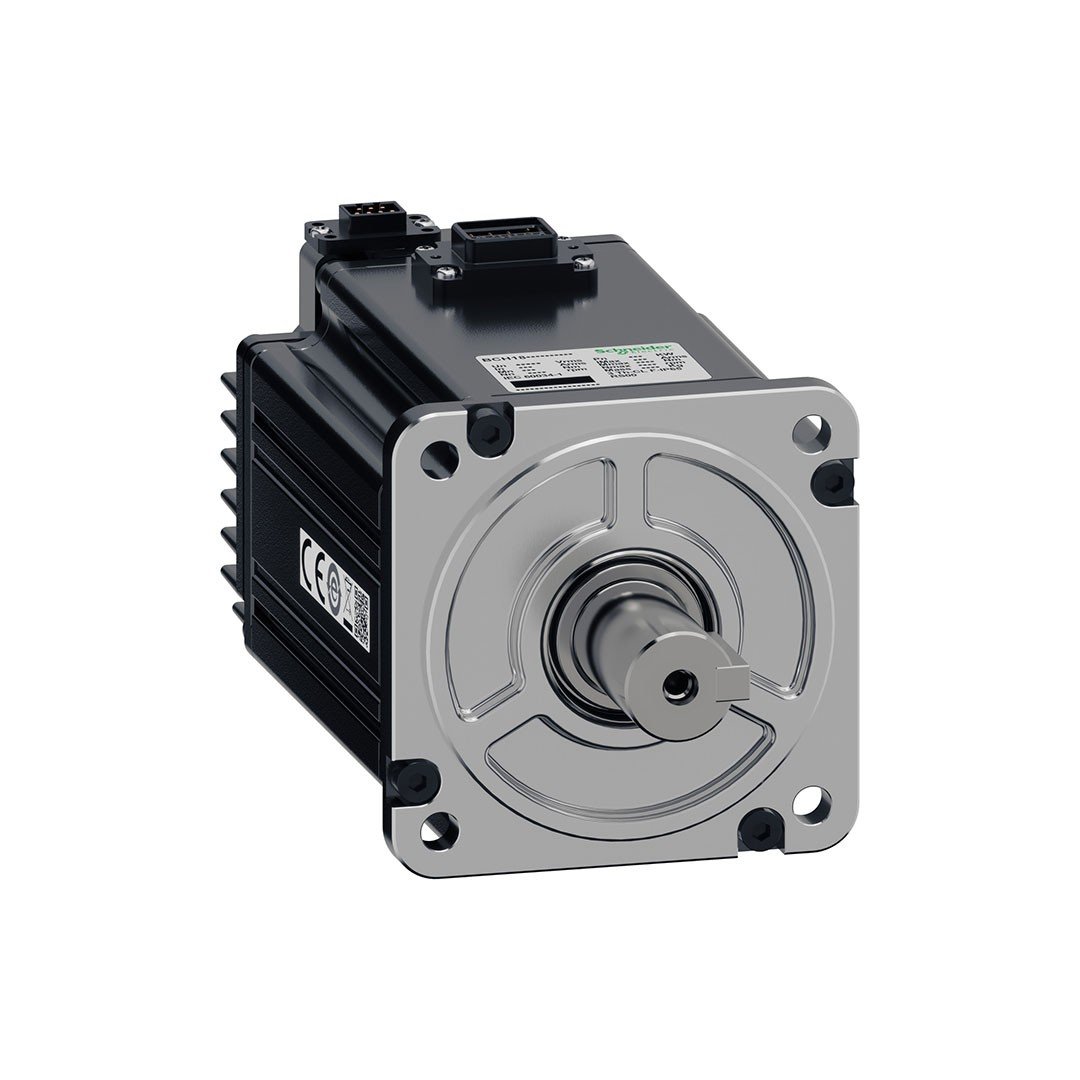

Schneider BCH18MF10332F5C EASY LEXİMUM 18 1KW M80 23 BIT OPTO INC BK SERD

Serial Compliance Easy Lexium 18
Product Group Bch18
Product or component type servo motor
Maximum Mechanical Speed ​​6000,0 RPM
[US] Nominal Feeding Voltage 200 … 240 V
Network of Phase Networks 3 Phase
Continuous stop current 6.5 A
Continuous Stop Torku 3.18 N.M, 220 V, Monophase
Continuous Power 1000 W
hill stopping torque 11.1 N.M, 220 V, monophase
Nominal output power 1000 W, 220 V, monophase
Nominal torque 3,18 N.M, 220 V, monophase
Nominal Speed ​​3000 RPM, 220 V, Monopase
Maximum Permanent Current 22.8 A
shaft tip parallel key
Shaft diameter 19.0 mm
Shaft length 35.0 mm
Key width 6.0 mm
Back Feeding Type 23 Bits Optic Incremental Encoder
With braking
Holding Torku 3.0 N.M
Assembly support Asia Standard Flange
engine flange size 80 mm
Electric Connection 2 Connector Male/Female
torque constant 0.49 n.m/a -de 40 ° C
Recommendation constant 33.3 V/Krpm 40 ° C per EMF
Rotor Authority 2,32 kg.cm²
maximum radial power Fr 392 n
Maximum Axial Power FA 147 N
length 167.5 mm
The number of assembly holes is 4.0
Circular diameter of the assembly holes 6.5 mm
Width 167.5 mm
height 80.0 mm
Depth 88.6 mm
Product weight 3.82 kg
ENKODER TYPE OPTIC ENCODER
