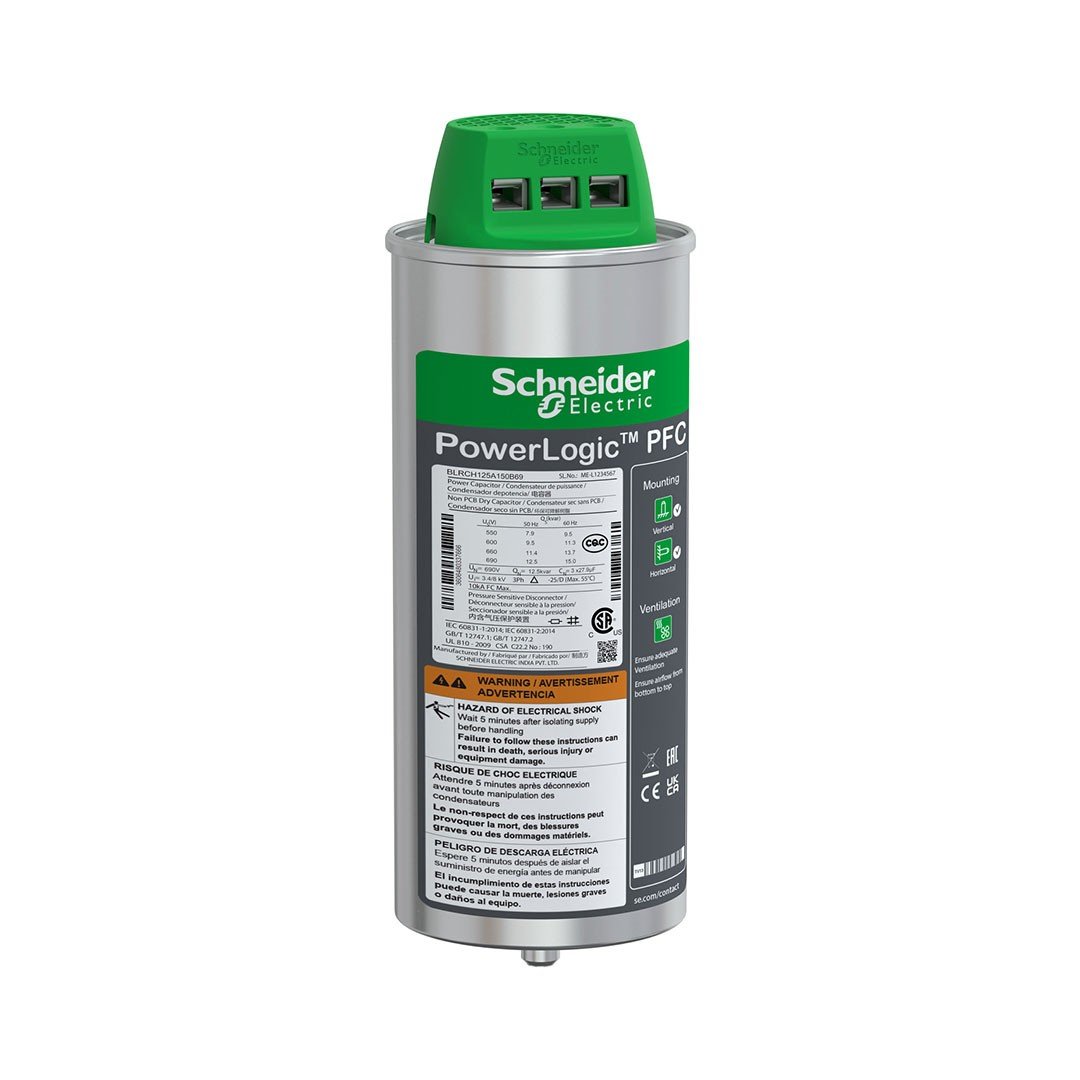

Schneider BLRCH303A000B44 440 VOLT 30.3 KVAR Triphase capacitor

Product Range PowerLogic
Product or component type heavy capacitor
Network Frequency 50/60hz
Serial name HDGÖREV
Network harmonic content <= 20 % Electrical Parameters 30.3 KVAR 50 Hz Maximum permissible voltage of 1,1 x (8 hours over 24 hours) Continuous overcurrent capacity 1.8 x input Nominal voltage 440 Vac 50/60 Hz Dielectric losses <0.2 W/KVAR Power losses <0.5 w/kvar Capacitance tolerance - 5 %to 10 % Voltage test 2.15 x for 10 s between AC terminals <= 660 V - 3 KV AC Terminal and container for 10 s > = 660 V – 6 kV AC Terminal and container for 10 s
Sudden Current 250 x Entry
Maximum annual switching process i 7000
Service life in clock 130000 hours
Dielectric Material ZN/ALE alloy, special resistant and profile, special edged (wave cutting) metallized polypropylene film
IMPRENYE MATERIALS PCB NON -DRY PUR Resin
Biologically fragmented
Installation type interior installation
Connections – Terminals CLAMPTITITY TERMINAL
Assembly mode upright/horizontal
Diameter 136mm
Height 242mm
Net weight 3.2 kilos
