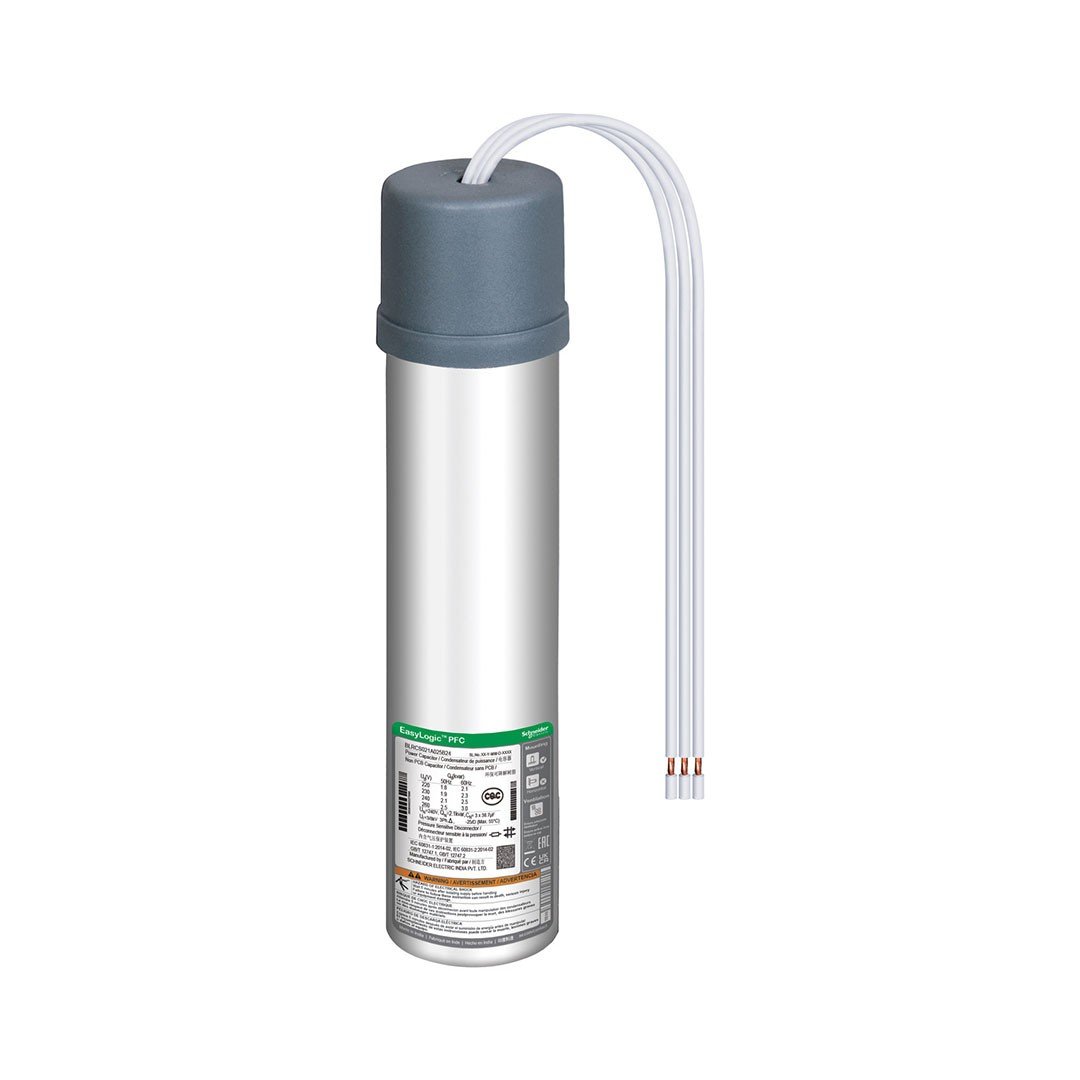

Schneider BLRCS050a060B40 400V 5KVAR EASYCAN STANDARD CAR

Product series
:
Easycan
Product or component type
:
Standard Duty Capacitor
Network frequency
:
50/60 Hz
Serial name
:
Easycan
Network harmonic content
:
<= 10 % Electrical Parameters : 4.5 kvar 380 V 50 Hz 5.4 KVAR 380 V 60 Hz 5 kvar 400 V 50 Hz 6 KVAR 400 V 60 Hz 5.4 kvar 415 V 50 Hz 6.5 kvar 415 V 60 Hz Maximum permitable voltage : 1,1 x (8 hours in 24 hours) Continue Overcurrent Capacity : 1.5 x In Nominal voltage : 380… 415 V AC 50/60 Hz Complementary features Dielectric losses : <0.2 W/KVAR Power losses : <0.5 W/KVAR Capacitance tolerance : - 5 % to 10 % Voltage test : 2,15 x UN AC Terminals for 10 S <= 660 V - 3 KV AC Terminal and the container 10 s > = 660 V – 6 kV AC Terminal and the container 10 s
Departure current
:
200 x In
Maximum Switching Operation Per Year
:
5000
Service life in clock
:
100000 h
Dielectric material
:
ZN/ALE alloy metallized polypropylene film,
IMPRENYE MATERIAL
:
PCB Soft Pur Resin
Biologically solved
Type of installation
:
Inner Setup
Connections – Terminals
:
Double Faston Terminal
Assembly type
:
Vertical
Diameter
:
63 mm
Height
:
245 mm
Product weight
:
0.9 kg
