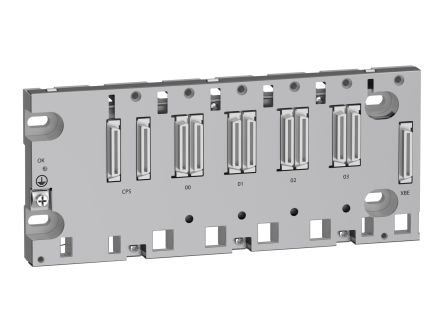

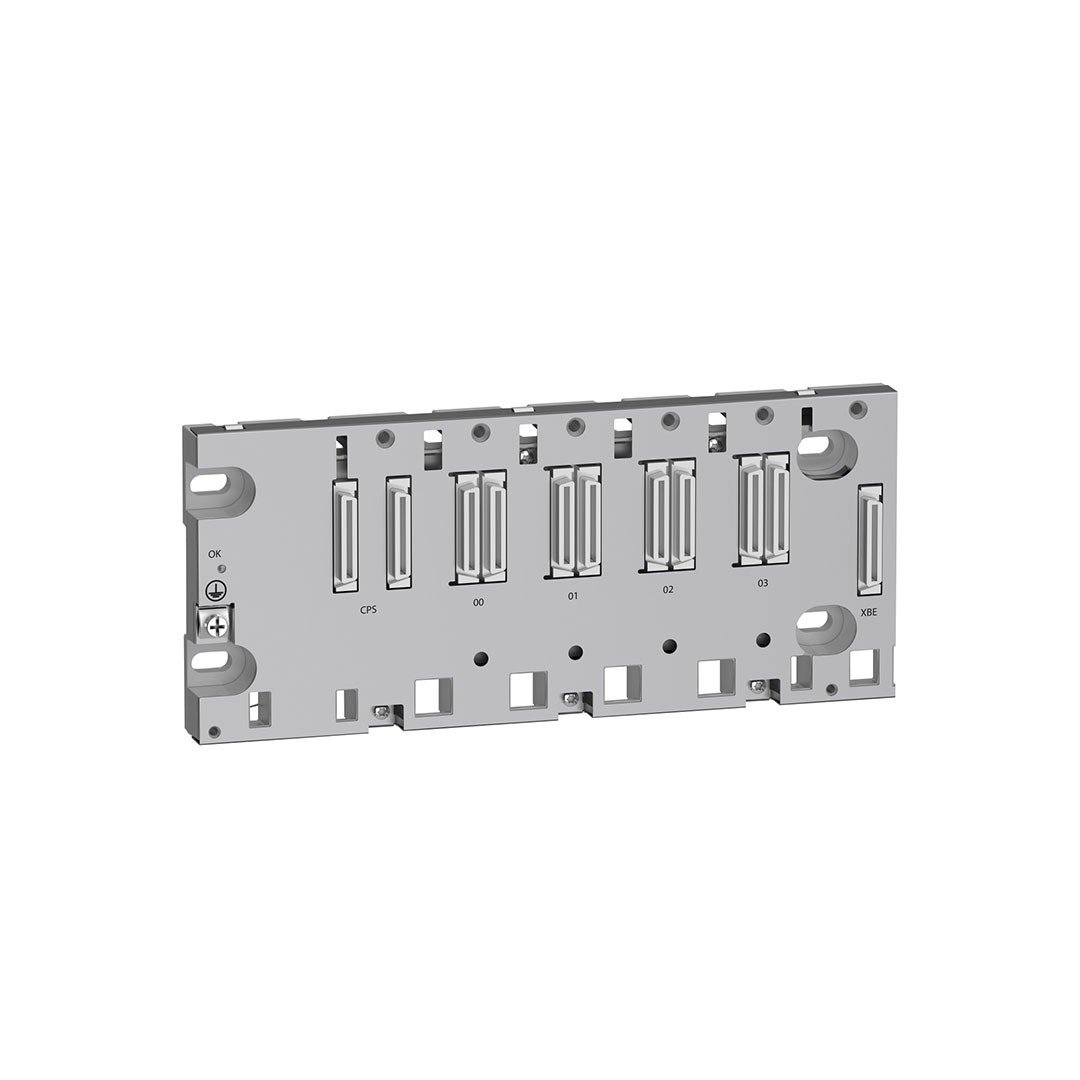

Schneider BMEXBP0400 RAF X80 4 Nest Ethernet Rear Panel

Product Series Modicon X80
accessory
Number of Slots 4 Bus X + Ethernet
Product Compatibility G/Ç Module
BMX processor
Special Application Module
BMXCPS Power Feeding
BME Processor
Power consumption in W 162 MW 3,3 V DC
2.8 W 24 V DC
Electric Connection 1 Connector (XBE) Expansion Module
fixing mode with 4 screws – diameter: 4.32… 6,35 mm, assembly location panel
4 m6 screw, assembly place plate
With clip, assembly location 35 mm symmetric DIN RAYI
Current consumption 49 MA -3.3 V DC
118 MA -E 24 V DC
MTBF reliability 1588025 h
Product weight 0.705 kg
