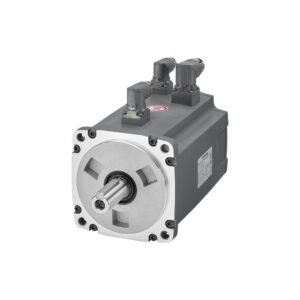

Schneider BMH0703P16F2A 3.4 NM 8000 RPM IP54 BRAKE Lock Lock Servo Motor

Product or component type
:
Servo-motor
Product group
:
BMH
Maximum mechanical speed
:
8000 RPM
Constantly standing torque
:
LXM32.D18N4 for 3.4 N.M
LXM32.D18N4 for 3.4 N.M
Hill stopping torque
:
LXM32.D18N4 for 10.2 N.M
LXM32.D18N4 for 10.2 N.M
Nominal output power
:
LXM32.D18N4 for 1300 W, 6 A, 400 V, trifase
LXM32.D18N4 for 1300 W, 6 A, 480 V, trifase
Nominal torque
:
LXM32.D18N4 for 2.4 N.M 6 A, 400 V, trifase
LXM32.D18N4 for 2.4 N.M
Nominal speed
:
LXM32.D18N4 for 5000 rpm, 6 A, 400 V, trifase
LXM32.D18N4 for 5000 rpm, 6 A, 480 V, trifase
Product compatibility
:
LXM32.D18N4 -400 … 480 V Trifase
Shaft tip
:
Locked
IP protection degree
:
IP54 Standard
Speed ​​back feeding resolution
:
32768 point/turn
Assembly support
:
International standard flange
Electric connection
:
Rotable right -angle connectors
Complementary features
Serial compatibility
:
Lexium 32
[US] Nominal Nutrition Voltage
:
480 V
Network Network of Phase
:
Trifase
Constant stop current
:
3,91 A
Constant power
:
1,68 W
Maximum current river
:
LXM32.D18N4 for 12.6 A
Maximum permanent current
:
12,57 A
Second shaft
:
Without the second shaft tip
Shaft diameter
:
14 mm
Shaft length
:
30 mm
Switch width
:
20 mm
Back feeding type
:
Single Return Sincos Hyperface
Holding torque
:
3 N.M braking
Engine flange size
:
70 mm
NUMBER OF ENGINE
:
3
Torque constant
:
0.87 n.m/a -de 120 ° C
Reabsorial emf constant
:
120 ° C per V/Krpm
Number of motor poles
:
10
Rotor
:
1.78 kg.cm²
Stator resistance
:
20 ° C per 2,65 ohm
Stator inductance
:
20 ° C per 8.6 mh
Stator electric time constant
:
20 ° C per 3.2 ms
Maximum radial power fr
:
1000 rpm per 730 n
2000 rpm in 580 n
3000 rpm in 510 n
460 n -4000 rpm
5000 rpm in 430 n
6000 rpm in 400 n
Maximum Axial Power FA
:
0.2 x Fr
Brake
:
7 W
Type of cooling
:
Natural convection
Length
:
225 mm
Average bracelet diameter
:
60 mm
Average bracelet depth
:
2.5 mm
Number of assembly holes
:
4
Assembly hole diameter
:
5.5 mm
Circular Diameter of the Mounting Hole
:
82 mm
Product weight
:
4 kg
