For excellent performance in compact design
Simplified engineering, installation and commissioning
3.4 Nm remarkable continuous stop torque – high speed up to 5000 rpm
16 P/U single round integrated encoder
Flang size for fixing by international standards is 100 mm

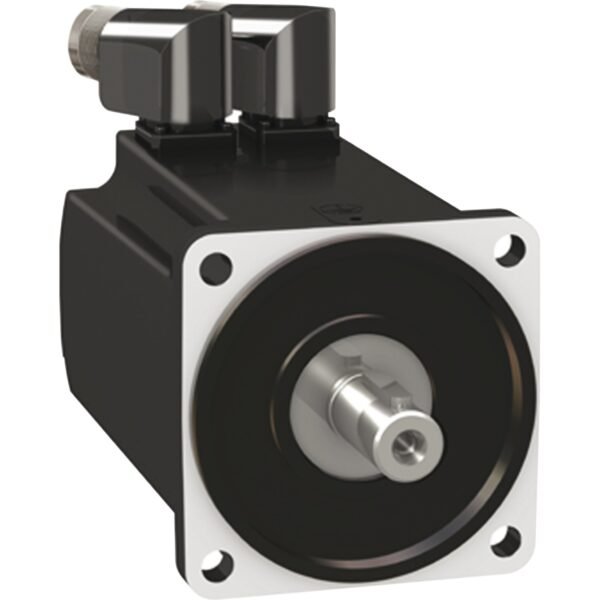

BMH Servo motor from the Lexium 32 Servo Driving series.
The BMH three -phase AC Servo motor series has a moderate rotor inertia and is perfectly suitable for high -loaded applications.
Thanks to the winding technology, compact design has a very high power density.
The nominal continuous stop torque of this servo is 3.4 nm and reaches a 10.2 nm peak torque.
Depending on the supply voltage, the nominal rate increases up to 5000 rpm.
This results in a nominal power due to voltage up to 1520 W.
The internal encoder is designed as Sincos Hyperface single -round with 16 periods/cyc (16×1024). The electrical connection is made with a 90 ° angle and rotating 2x m23 connector.
Motor flange is 100 mm for fixing.
The diameter of the drive shaft is 19 mm.
The shaft end is designed in the form of a wedge and is suitable for the IP54 protection class.
The engine body is suitable for the IP65 protection class.
A holding brake is integrated.
Lexium LXM32 Servo amplifiers are recommended to operate the synchronous motor.
With Green Premium Eco-ECH-ECH, you can get detailed information about the material content that supports your sustainability goals, environmental impact and cyclic economy.
