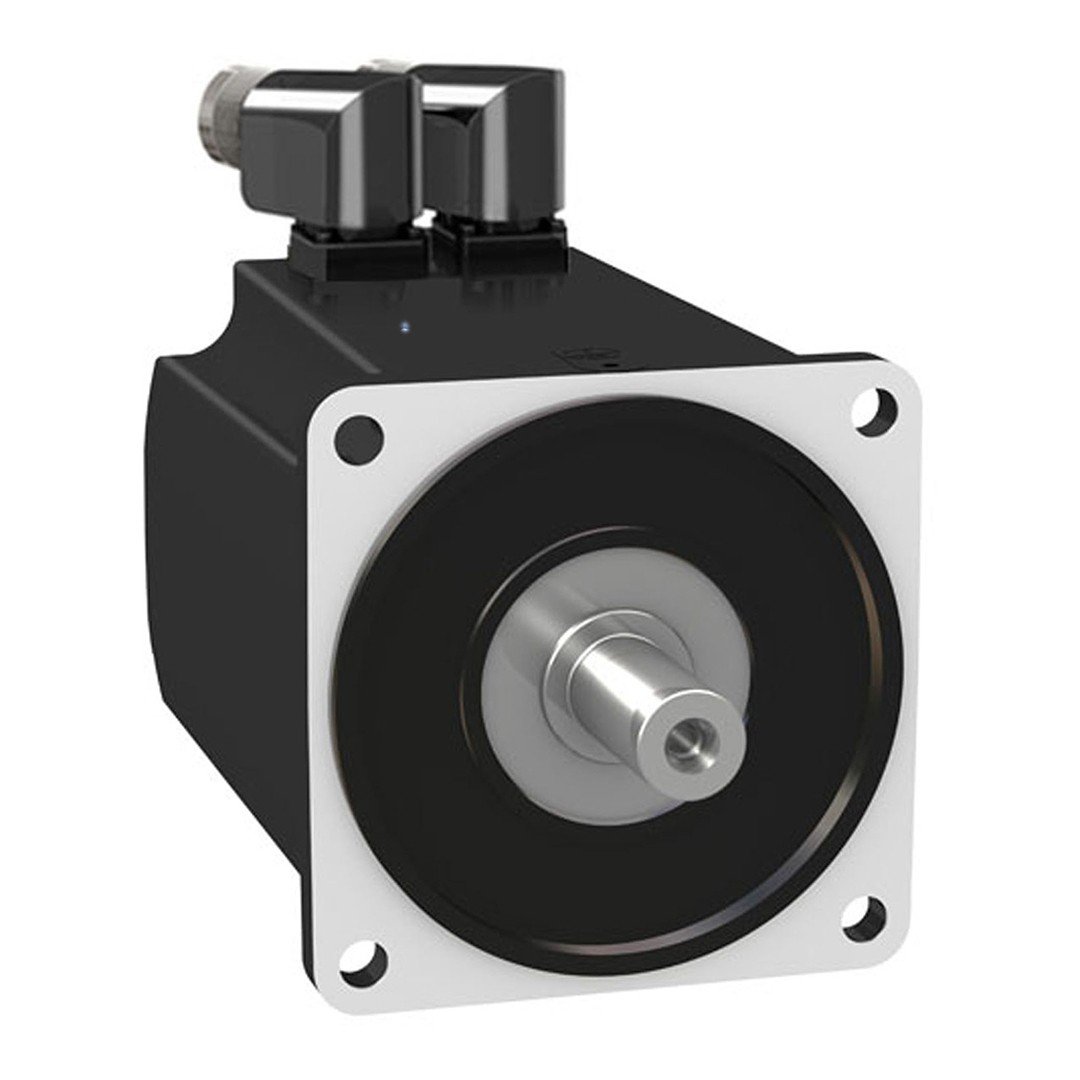

Schneider BMH1402P16F2A 18.5 NM 4000 RPM IP54 BRAKE Lock Locking Servo Motor

Product or component type
:
Servo-motor
Product group
:
BMH
Maximum mechanical speed
:
4000 RPM
Constantly standing torque
:
LXM32.D72N4 for 18.5 n.m, 24 A, 400 V, trifase
LXM32.D72N4 for 18.5 n.m, 24 A, 480 V, trifase
Hill stopping torque
:
LXM32.D72N4 for 50,3 N.M, 24 A, 400 V, Trifase
LXM32.D72N4 for 50,3 N.M, 24 A, 480 V, Trifase
Nominal output power
:
LXM32.D72N4 for 3500 W, 24 A, 400 V, trifase
LXM32.D72N4 for 3500 W, 24 A, 480 V, trifase
Nominal torque
:
LXM32.D72N4 for 12.2 N.M
LXM32.D72N4 for 12.2 N.M, 24 A, 480 V, trifase
Nominal speed
:
LXM32.D72N4 for 3000 rpm, 24 A, 400 V, trifase
LXM32.D72N4 for 3000 rpm, 24 A, 480 V, trifase
Product compatibility
:
LXM32.D72N4 400 … 480 V Trifase
Shaft tip
:
Locked
IP protection degree
:
IP54 Standard
Speed ​​back feeding resolution
:
32768 point/turn
Assembly support
:
International standard flange
Electric connection
:
Rotable right -angle connectors
Complementary features
Serial compatibility
:
Lexium 32
[US] Nominal Nutrition Voltage
:
480 V
Network Network of Phase
:
Trifase
Constant stop current
:
16,83 A
Constant power
:
4,44 W
Maximum current river
:
LXM32.D72N4 for 57.4
Maximum permanent current
:
57.4 A
Second shaft
:
Without the second shaft tip
Shaft diameter
:
24 mm
Shaft length
:
50 mm
Switch width
:
40 mm
Back feeding type
:
Single Return Sincos Hyperface
Holding torque
:
18 N.M braking
Engine flange size
:
140 mm
NUMBER OF ENGINE
:
2
Torque constant
:
1,1 N.M/A -DE 120 ° C
Reabsorial emf constant
:
120 ° C per 70.7 V/Krpm
Number of motor poles
:
10
Rotor
:
33.5 kg.cm²
Stator resistance
:
20 ° C per 0.23 ohm
Stator inductance
:
20 ° C per 3 mh
Stator electric time constant
:
20 ° C per 13 ms
Maximum radial power fr
:
1000 rpm in 2240 n
2000 rpm at 1780 n
3000 rpm in 1550 n
Maximum Axial Power FA
:
0.2 x Fr
Brake
:
18 W
Type of cooling
:
Natural convection
Length
:
227 mm
Average bracelet diameter
:
130 mm
Average bracelet depth
:
3.5 mm
Number of assembly holes
:
4
Assembly hole diameter
:
11 mm
Circular Diameter of the Mounting Hole
:
165 mm
Product weight
:
14.3 kg
