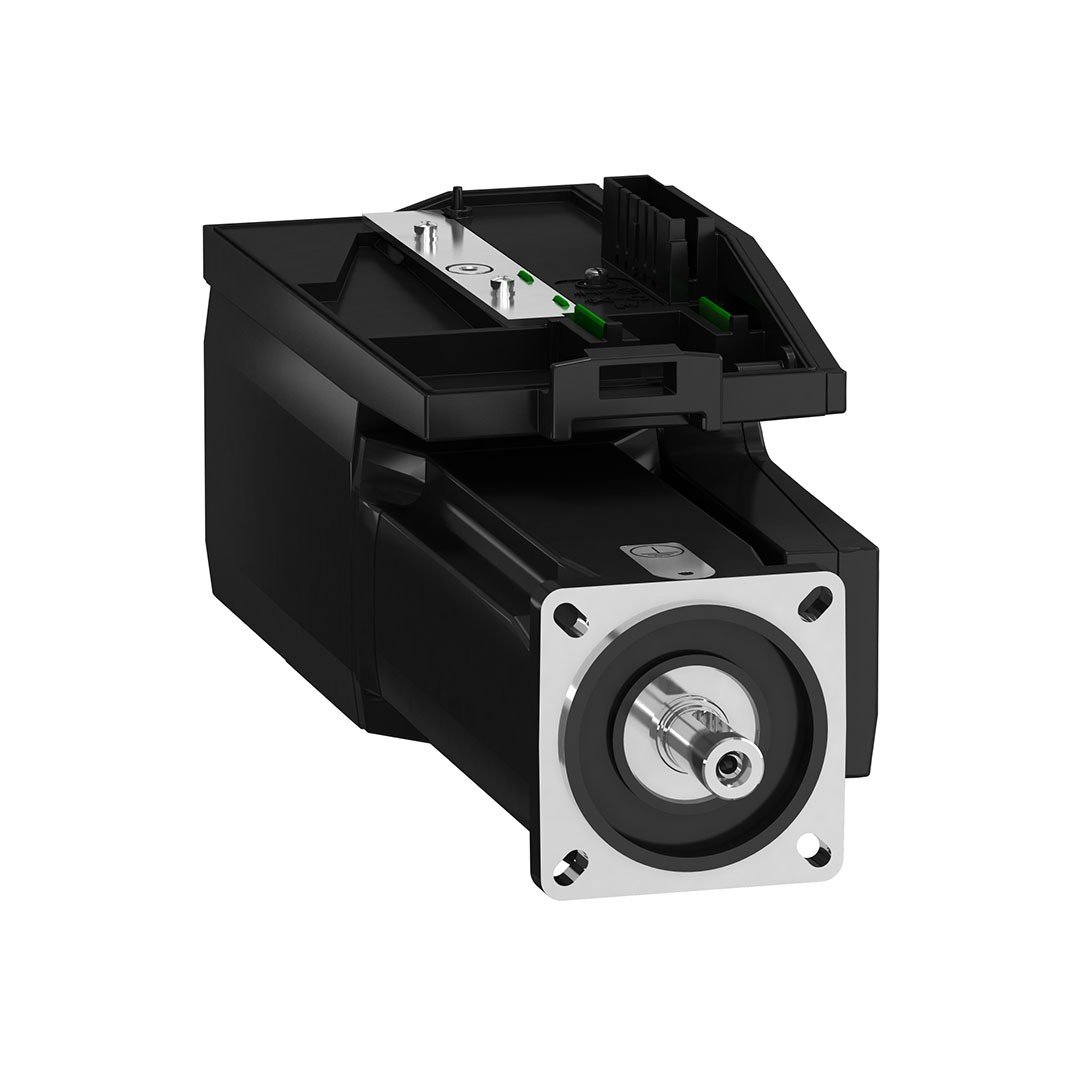

Schneider BMI0703T16A 2.2NM 3200 RPM SPRING MILE IP54 Monophase BMI Servo Motor

Serial Compliance Lexium 32i
Product Group BMI
Product or component type Power Student Servo Motor
maximum mechanical speed 8000 rpm
[US] Nominal Nutrition Voltage 115 … 230 V % – 15 … 10
Feeding voltage limits 100… 240 V
Network of Phase Networks Monopase
Feeding frequency 50/60 Hz – 5 … 5 %
Network Frequency Limits 47.5… 63 Hz
EMC Filter Integrated
Continuous output current 3.5 a -de 8 kHz
Exit current 3s Tepe 10.5 A -DE 3 S for 230 V
Continuous stop current 3.5 A
Continuous stop torque 3.4 N.M -115 … 230 V monophase
Hill Stop Torku 8.6 N.M -Monophase in 115 V
230 V monophase in 8.6 n.m
Nominal output power 700 W -de 230 V monophase
400 W -DE 115 V Monopase
Nominal torque 2,9 N.M -Monophase in 115 V
230 V monophase in 2.2 n.m
Nominal Speed ​​3200 RPM 230 V Monopase
115 V monophase in 1400 rpm
maximum current rivers 17.8 a -de 115 V, monophase
17.8 a -de 230 V, monophase
Product compatibility speed control device unit LXM32i Canopen
Speed ​​control device unit LXM32i ethercat
shaft tip locked
The second shaft without the second shaft tip
Shaft diameter 14 mm
Shaft length 30 mm
Key width 5 mm
Back Feeding Type Absolute Single Sincos Hyperface
Speed ​​back feeding resolution 32768 point/turn
without braking
Mounting Support International Standard Flange
engine flange size 70 mm
Electric Connection Printed Circuit Card Connector
torque constant 0.81 n.m/a -de 20 ° C
Recommendation constant 54,44 V/KRPM 20 ° C per EMF
Number of motor poles 10
Rotor Authority 1.67 kg.cm²
Stator resistance 2.58 ohm -20 ° C
Stator inductance 2.28 MH -20 ° C per MH
Stator Electrical Time Constanding 0.88 ms 20 ° C per ms
Maximum Radial Power Fr 730 N -1000 rpm
2000 rpm in 580 n
3000 rpm in 510 n
460 n -4000 rpm
5000 rpm in 430 n
6000 rpm in 400 n
Maximum Axial Power Fa 0.2 x Frr
Type of Cool Natural Convection
length 300 mm
engine heap number 3
Average bracelet diameter 60 mm
The average bracelet depth is 2.5 mm
Number of assembly holes 4
assembly hole diameter 5.5 mm
The circular diameter of the assembly holes is 75… 82 mm
Shaft Support Flange distance 2.5 mm
