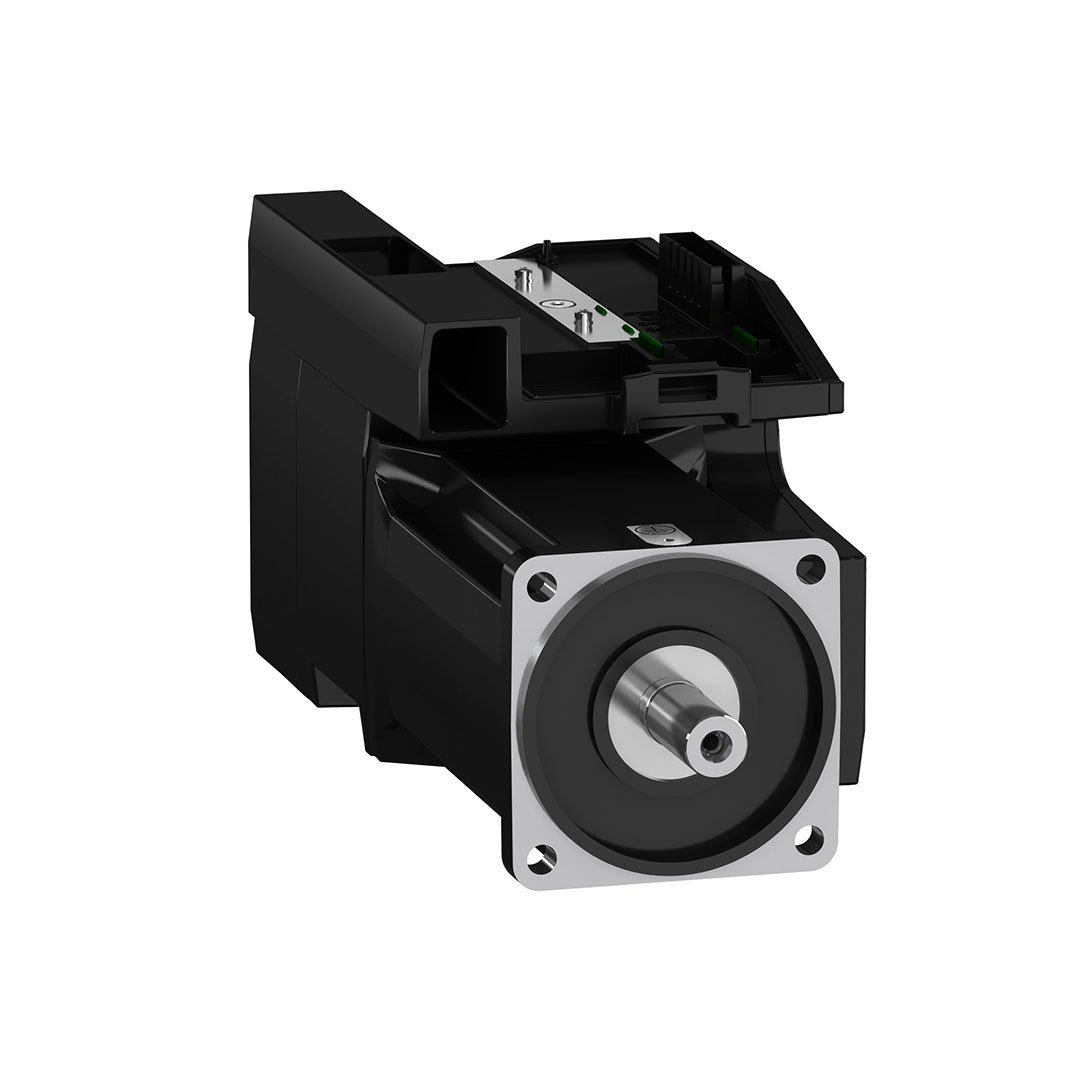

Schneider BMI1002P16A 5,4NM 3800 RPM SAMPLE MILE BRAKE IP54 Trifase BMI Servo Motor

Serial Compliance Lexium 32i
Product Group BMI
Product or component type Power Student Servo Motor
Maximum Mechanical Speed ​​6000 RPM
[US] Nominal Nutrition Voltage 208 … 480 V % – 15 … 10
Feeding voltage limits 208… 480 V
Network Network of Phase Trifase
Feeding frequency 50/60 Hz – 5 … 5 %
Network Frequency Limits 47.5… 63 Hz
EMC Filter Integrated
Continuous output current 4 A -de 8 khz
Exit current 3s Tepe 12 A -DE 3 S for 400 V
Continuous stop current 4 A
Continuous Stop Torku 6 N.M -208 … 480 V Trifase
Tepe Durma Torku 14 N.M -208 V Trifase
400 V Trifase in 14 N.M
480 V Trifase in 14 N.M
Nominal output power 1000 W -DE 208 V Trifase
1900 W -DE 400 V Trifase
1900 W -DE 480 V Trifase
Nominal torque 5.1 N.M -400 V Trifase
208 V Trifase in 5.4 N.M
480 V Trifase in 4.1 N.M
Nominal Speed ​​1900 RPM 208 V Trifase
400 V Trifase in 3800 RPM
480 V Trifase in 4700 RPM
maximum current rivers 17.5 a -de 208 V, trifase
17.5 A -DE 400 V, trifase
17,5 A -DE 480 V, Trifase
Product compatibility speed control device unit LXM32i Canopen
Speed ​​control device unit LXM32i ethercat
shaft tip locked
The second shaft without the second shaft tip
Shaft diameter 19 mm
Shaft length 40 mm
Key width 6 mm
Back Feeding Type Absolute Single Sincos Hyperface
Speed ​​back feeding resolution 32768 point/turn
without braking
Mounting Support International Standard Flange
engine flange size 100 mm
Electric Connection Printed Circuit Card Connector
torque constant 1.28 n.m/a -de 20 ° C
Recommendation constant 84,52 V/Krpm 20 ° C per EMF
Number of motor poles 10
Rotor Authority 6.28 kg.cm²
Stator resistance 2,347 ohm -20 ° C
Stator inductance 9.79 MH -20 ° C per
Stator Electrical Time Constitution 4,17 MS 20 ° C per ms
Maximum Radial Power Fr 990 N -1000 rpm
2000 rpm at 790 n
3000 rpm in 690 n
4000 rpm in 620 n
580 n -5000 rpm
Maximum Axial Power Fa 0.2 x Frr
Type of Cool Natural Convection
length 273 mm
Number of engine heaps 2
Average Bracelet Diameter 95 mm
The average bracelet depth is 3.5 mm
Number of assembly holes 4
assembly hole diameter 9 mm
The circular diameter of the assembly holes is 115 mm
Shaft Support Flang distance 3.5 mm
