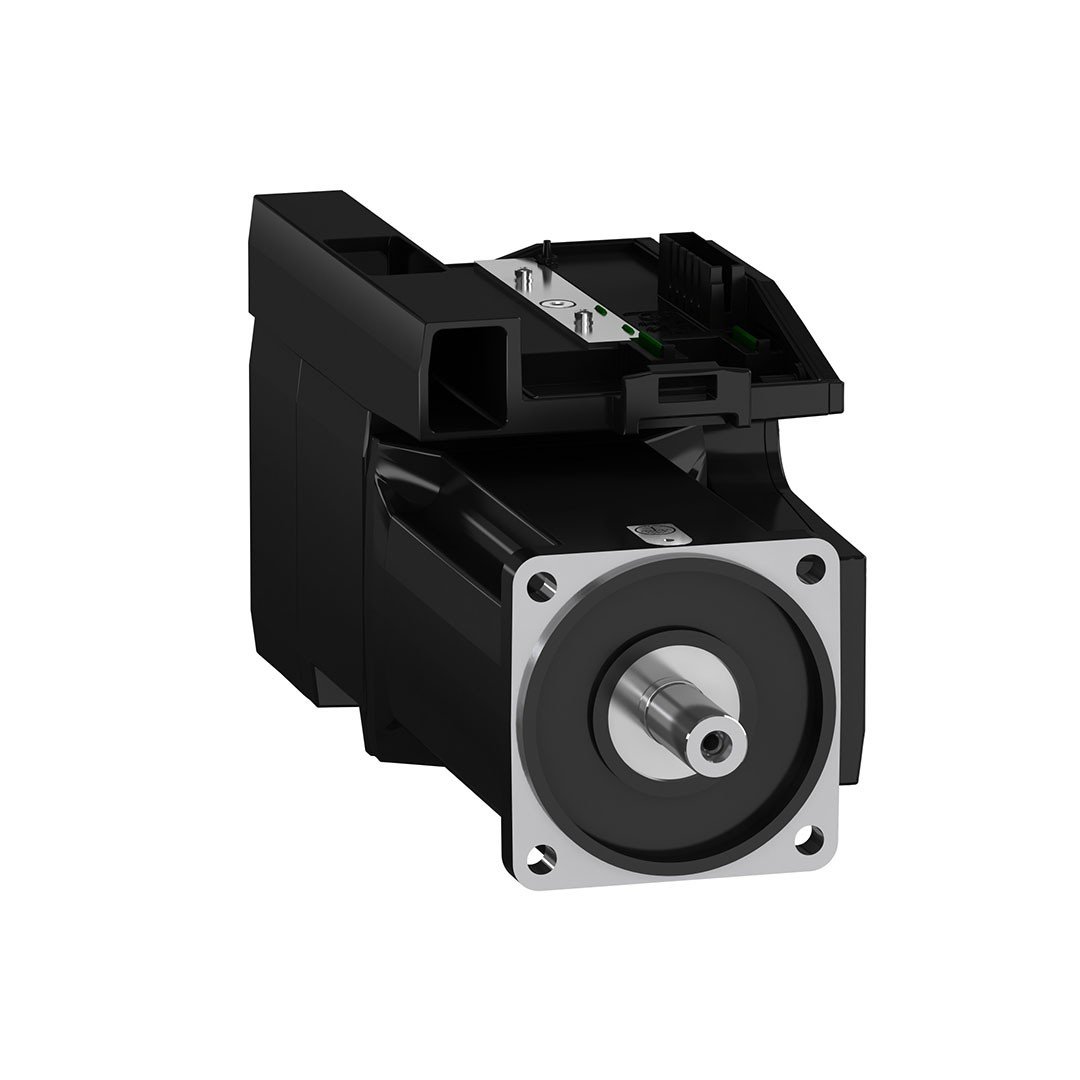

Schneider BMI1003P16A 6,8NM 3000 RPM SPRING MILE BRAKE IP54 Trifase BMI Servo Motor

Serial Compliance Lexium 32i
Product Group BMI
Product or component type Power Student Servo Motor
Maximum Mechanical Speed ​​6000 RPM
[US] Nominal Nutrition Voltage 208 … 480 V % – 15 … 10
Feeding voltage limits 208… 480 V
Network Network of Phase Trifase
Feeding frequency 50/60 Hz – 5 … 5 %
Network Frequency Limits 47.5… 63 Hz
EMC Filter Integrated
Continuous output current 4 A -de 8 khz
Exit current 3s Tepe 12 A -DE 3 S for 400 V
Continuous stop current 4 A
Continuous Stop Torku 8.5 N.M -208 … 480 V Trifase
Tepe Durma Torku 19,2 N.M -M -400 V Trifase
19,2 N.M -480 V Trifase
19,2 N.M -208 V Trifase
Nominal output power 1000 W -DE 208 V Trifase
2000 W -DE 400 V Trifase
2100 W -DE 480 V Trifase
Nominal Tork 7.2 N.M -208 V Trifase
400 V Trifase in 6.8 N.M
5.6 N.M -Make 480 V Trifase
Nominal Speed ​​1500 RPM 208 V Trifase
400 V Trifase per 3000 rpm
480 V Trifase in 3700 RPM
maximum current rivers 26.7 a -de 208 V, trifase
26.7 a -de 400 V, trifase
26.7 a -de 480 V, trifase
Product compatibility speed control device unit LXM32i Canopen
Speed ​​control device unit LXM32i ethercat
shaft tip locked
The second shaft without the second shaft tip
Shaft diameter 19 mm
Shaft length 40 mm
Key width 6 mm
Back Feeding Type Absolute Single Sincos Hyperface
Speed ​​back feeding resolution 32768 point/turn
without braking
Mounting Support International Standard Flange
engine flange size 100 mm
Electric Connection Printed Circuit Card Connector
torque constant 1.7 n.m/a -de 20 ° C
Recommendation constant 112 V/Krpm -20 ° C per EMF
Number of motor poles 10
Rotor Authority 9.37 kg.cm²
Stator resistance 2,31 ohm -20 ° C
Stator inductance 11.43 mh -20 ° C per
Stator Electrical Time Constitution 4.95 ms -20 ° C
Maximum Radial Power Fr 1050 n 1000 rpm
2000 rpm at 830 n
3000 rpm at 730 n
4000 rpm in 660 n
5000 rpm in 610 n
Maximum Axial Power Fa 0.2 x Frr
Type of Cool Natural Convection
length 299 mm
engine heap number 3
Average Bracelet Diameter 95 mm
The average bracelet depth is 3.5 mm
Number of assembly holes 4
assembly hole diameter 9 mm
The circular diameter of the assembly holes is 115 mm
Shaft Support Flang distance 3.5 mm
