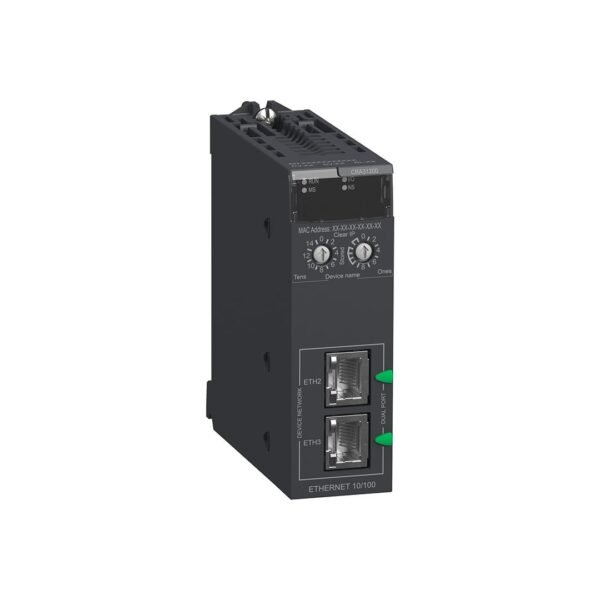

Schneider BMXCRA31200 Modicon X80 RIO DROP E/IP STD

Product Series Modicon X80
Serial Compliance Modicon M580
Modicon Quantum
Product or Component Type G/O Diaman Module
Device Application X80 Ethernet RIO Drop Adapter
Product Special Application For Remote G/Ç modules
data type data x across the remote backplane
Port Number 2
Ethernet RIO Network for Integrated Connection Type 2 Port (RSTP)
Communication Network Type IPV4 (Internet Protocol)
Communication Port Protocol Ethernet/IP
Communication Service Ethernet/IP Adapter
RSTP (ring topology support)
Ethernet RIO network
Service Quality (QOS)
CIP Open Messaging (Server)
MODBUS TCP server for module diagnosis
DHCP client
TFTP client
Ftp client
FDR client
SNTP client
Snump agent
Cyber ​​Security Syslog Protocol Support
Connector Type 2 RJ45
Change mode half -double, full -two -way, automatic agreement, automatic MDIX
Transmission Speed ​​10, 100 Mbit/Sn
Port Ethernet 10/100Base-TX
Usable Function CCOTF (instant configuration change)
Entry data is collected and published to the remote G/Ç head adapter
Output modules are updated with data received from the remote G/Ç head adapter
Diagnosis for remote G/Ç devices (device DDT)
G/Ç Expansion Shelf
data recording 10 ms time stamps
Topology Ring
Local Signaling Module Effective (RUN): 1 LED (Green)
Module Error (ERR): 1 LED (Red)
Module Status (Mode Status): 1 LED (Green/Red)
Network Communication Status (Net Status): 1 LED (Green/Red)
Ethernet connection diagnoses (STS): 1 LED (green)
Current consumption 1200 mA
input voltage 3.3 V dc
Product Compatibility 0… 128 Discrete Channel
0… 16 Analog Channel
Module Formal Standard
Product weight 0.225 kg
Maximum height transport 3000 m
relative humidity 95 % condensation
Fixing mode with screws
Assembly type shelf assembly
Width 32 mm
height 100 mm
Depth 87.5 mm
