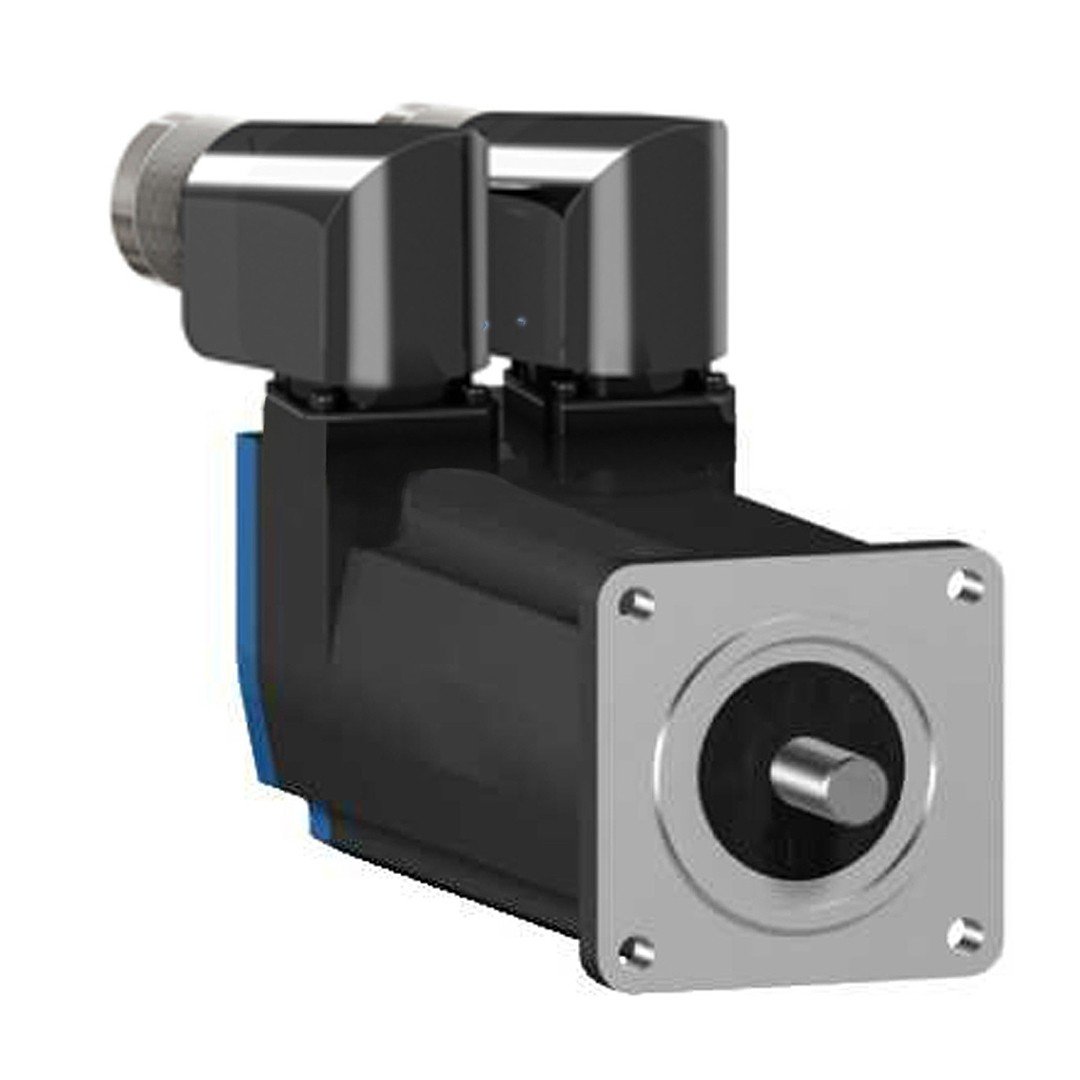

Schneider BSH0553P11F2A BSH AC IP50 Lock Locked Brake Servo Motor

Product or component type
:
Servo-motor
Product group
:
BSH
Maximum mechanical speed
:
9000 RPM
Constantly standing torque
:
1,05 N.M LXM32.U60N4 -1,5 A, 480 V, Trifase
LXM32.U60N4 for 1,05 N.M, 1.5 A, 400 V, trifsease
LXM05AD10M2 for 1.3 N.M, 200 … 240 V, monophase
LXM05BD10M2 for 1.3 N.M, 200 … 240 V, monophase
LXM05CD10M2, 200 … 240 V, Monophase for 1.3 N.M
LXM05AD10M3X for 1.3 N.M, 200 … 240 V, trifsease
Lxm05bd10m3x for 1,3 n.m, 200 … 240 V, trifase
LXM05CD10M3X for 1.3 N.M, 200 … 240 V, trifsease
LXM15LD13M3 for 1.3 N.M, 230 V, monophase
LXM15LD13M3 for 1.3 N.M, 230 V, trifase
LXM15LD10N4 for 1.3 N.M, 400 V, trifase
LXM05AD14N4, 380 … 480 V, trifase for 1,3 N.M
LXM05BD14N4, 380 … 480 V, trifase for 1,3 N.M
LXM05CD14N4, 380 … 480 V, trifase for 1,3 n.m
Hill stopping torque
:
LXM32.U60N4 for 3.5 N.M, 1.5 A, 480 V, trifase
LXM32.U60N4 for 3.5 n.m 1.5 A, 400 V, trifase
LXM15LD13M3 for 2.7 N.M, 230 V, monophase
LXM05Ad10m2 for 3,18 N.M, 200 … 240 V, monophase
LXM05BD10M2 for 3,18 N.M, 200 … 240 V, monophase
LXM05CD10M2, 200 … 240 V, Monophase for 3,18 N.M
LXM15LD13M3 for 2.7 N.M, 230 V, trifase
3,87 N.M LXM15LD10N4, 400 V, Trifase
3,18 N.M LXM05AD10M3X, 200 … 240 V, trifase
3,87 N.M LXM05AD14N4, 380 … 480 V, Trifase
LXM05BD10M3X for 3,18 N.M, 200 … 240 V, trifase
3,87 N.M LXM05BD14N4, 380 … 480 V, trifase
LXM05CD10M3X for 3,18 N.M, 200 … 240 V, trifase
3,87 N.M LXM05CD14N4, 380 … 480 V, trifase
Nominal output power
:
LXM32.U60N4 for 400 W 1.5 A, 400 V, trifase
LXM32.U60N4 for 400 W 1.5 A, 480 V, trifase
LXM15LD13M3 for 340 W, 230 V, trifase
LXM15LD13M3 for 340 W, 230 V, monophase
LXM05AD10M2 for 350 W, 200 … 240 V, monophase
LXM05BD10M2 for 350 W, 200 … 240 V, monophase
LXM05CD10M2 for 350 W, 200 … 240 V, monophase
LXM05AD10M3X for 350 W, 200 … 240 V, trifase
LXM05AD14N4, 380 … 480 V, trifase for 350 W
LXM05BD10M3X for 350 W, 200 … 240 V, trifase
LXM05BD14N4 for 350 W, 380 … 480 V, trifase
LXM05CD10M3X for 350 W, 200 … 240 V, trifase
LXM05CD14N4, 380 … 480 V, trifase for 350 W
LXM15LD10N4 for 670 W, 400 V, trifase
Nominal torque
:
LXM32.U60N4 for 0.65 N.M, 1.5 A, 400 V, trifsease
LXM32.U60N4 for 0.65 N.M, 1.5 A, 480 V, trifase
LXM15LD13M3 for 1,08 N.M, 230 V, monophase
LXM05AD10M2 for 1.1 N.M, 200 … 240 V, monophase
LXM05BD10M2, 200 … 240 V, monophase for 1,1 N.M
LXM05CD10M2, 200 … 240 V, monophase for 1,1 N.M
LXM15LD10N4 for 0.8 N.M, 400 V, trifase
LXM15LD13M3, 230 V, Trifase for 1,08 N.M
LXM05AD10M3X for 1,1 N.M, 200 … 240 V, trifase
LXM05AD14N4, 380 … 480 V, trifase for 1,1 N.M
LXM05BD10M3X for 1,1 N.M, 200 … 240 V, trifase
LXM05BD14N4, 380 … 480 V, trifase for 1,1 N.M
LXM05CD10M3X for 1,1 N.M, 200 … 240 V, trifase
LXM05CD14N4, 380 … 480 V, trifase for 1,1 N.M
Nominal speed
:
LXM32.U60N4 for 6000 rpm, 1.5 A, 400 V, trifase
LXM32.U60N4 for 6000 rpm, 1.5 A, 480 V, trifase
LXM05AD10M2, 200 … 240 V, monophase for 3000 rpm
LXM05BD10M2, 200 … 240 V, monophase for 3000 rpm
LXM05CD10M2, 200 … 240 V, monophase for 3000 rpm
LXM05AD10M3X for 3000 rpm, 200 … 240 V, trifase
LXM05AD14N4, 380 … 480 V, trifase for 3000 rpm
LXM05BD10M3X for 3000 rpm, 200 … 240 V, trifsease
LXM05BD14N4, 380 … 480 V, trifase for 3000 rpm
LXM05CD10M3X for 3000 RPM, 200 … 240 V, trifase
LXM05CD14N4, 380 … 480 V, trifase for 3000 rpm
LXM15LD13m3 for 3000 rpm, 230 V, monophase
LXM15LD13M3 for 3000 RPM, 230 V, trifase
LXM15LD10N4, 400 V, trifase for 8000 rpm
Product compatibility
:
LXM05AD10M2 -200 … 240 V monophase
LXM05BD10M2 -200 … 240 V monophase
LXM05CD10M2 -200 … 240 V monophase
LXM15LD13M3 230 V Monophase
LXM32.U60N4 400 V Trifase
LXM32.U60N4 480 V Trifase
LXM05AD10M3X 200 … 240 V Trifase
LXM05BD10M3X 200 … 240 V Trifase
LXM05CD10M3X 200 … 240 V Trifase
LXM15LD13M3 230 V Trifase
LXM05AD14N4 -380 … 480 V Trifase
LXM05BD14N4 -380 … 480 V Trifase
LXM05CD14N4 -380 … 480 V Trifase
LXM15LD10N4 400 V Trifase
Shaft tip
:
Locked
IP protection degree
:
IP50 S tandart
Speed ​​back feeding resolution
:
131072 point turn
Assembly support
:
International standard flange
Electric connection
:
Rotable right -angle connectors
Complementary features
Serial compatibility
:
Lexium 05
Lexium 15
Lexium 32
Supply voltage max
:
480 V
Network Network of Phase
:
Trifase
Constant stop current
:
1.7 A
Maximum continuous power
:
0.97 W
Maximum current river
:
LXM15LD13M3 for 8.7 A
LXM15LD10N4 for 8.7 A
LXM05AD10M2 for 6.5 A
LXM05AD10M3X for 6.5 A
LXM05AD14N4 for 6.5 A
LXM05BD10M2 for 6.5 A
LXM05BD10M3X for 6.5 A
LXM05BD14N4 for 6.5 A
LXM05CD10M2 for 6.5 A
LXM05CD10M3X for 6.5 A
LXM05CD14N4 for 6.5 A
LXM32.U60N4 for 6 A
Maximum permanent current
:
6.5 A
Switching frequency
:
8 KHz
Second shaft
:
Without the second shaft tip
Shaft diameter
:
9 mm
Shaft length
:
20 mm
Switch width
:
12 mm
Back feeding type
:
Single Return Sincos Hyperface
Holding torque
:
0.8 n.m braking
Engine flange size
:
55 mm
NUMBER OF ENGINE
:
3
Torque constant
:
0.7 N.M A -DE 120 C
Reabsorial emf constant
:
41 V CRPM -120 C
Number of motor poles
:
6
Rotor
:
0,1553 kg.cm²
Stator resistance
:
10.4 Ohm -20 C
Stator inductance
:
25 MH -20 C
Stator electric time constant
:
20 C in 2.4 ms
Maximum radial power fr
:
8000 rpm in 190 n
7000 rpm at 200 n
6000 rpm in 210 n
5000 rpm in 230 n
4000 rpm in 240 n
3000 rpm in 270 n
2000 rpm at 310 n
1000 rpm in 390 n
Maximum Axial Power FA
:
0.2 x Fr
Brake
:
10 W
Type of cooling
:
Natural convection
Length
:
203 mm
Average bracelet diameter
:
40 mm
Average bracelet depth
:
2 mm
Number of assembly holes
:
4
Assembly hole diameter
:
5.5 mm
Circular Diameter of the Mounting Hole
:
63 mm
Product weight
:
1.9 kg
