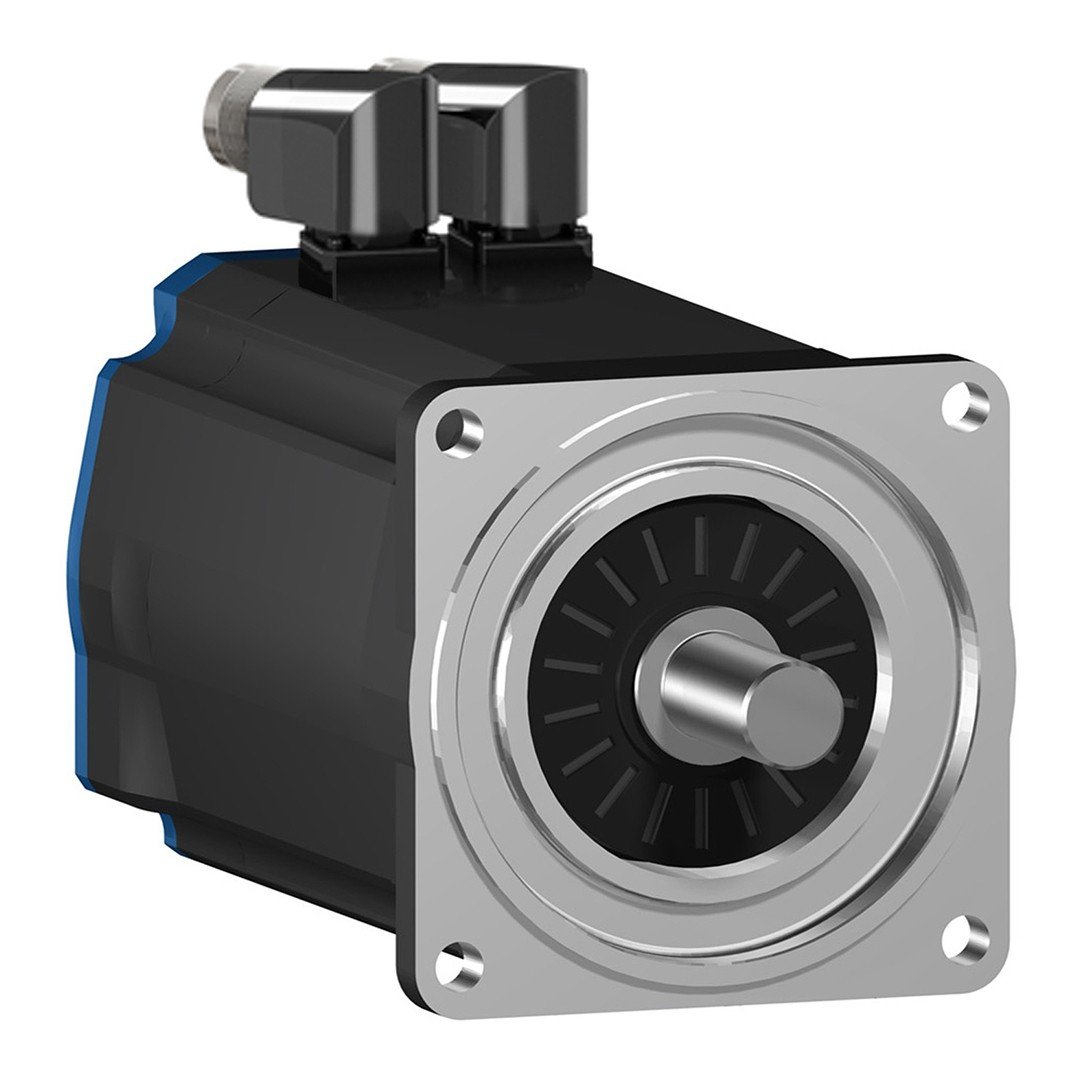

Schneider BSH1003P11F2A BSH AC IP50 Locked shaft brake servo motor

Product or component type
:
Servo-motor
Product group
:
BSH
Maximum mechanical speed
:
6000 RPM
Constantly standing torque
:
8 A, 400 V, trifsease for 8 N.M for 10 N.M30N4
8 A, 480 V, trifsease
LXM05CD28M2 for 7.8 N.M, 200 … 240 V, monophase
LXM05Ad28m2 for 7.8 N.M, 200 … 240 V, monophase
LXM05BD28M2 for 7.8 N.M, 200 … 240 V, monophase
LXM05BD34N4, 380 … 480 V, trifase for 7.8 n.m
LXM05BD42M3X for 7.8 N.M, 200 … 240 V, trifase
LXM05CD34N4, 380 … 480 V, trifase for 7.8 n.m
LXM05CD42M3X for 7.8 N.M, 200 … 240 V, trifase
LXM15LD21M3, 230 V, Trifase for 6.7 N.M
LXM15LD17N4, 230 V, Trifase for 6.7 N.M
LXM15LD17N4, 400 V, Trifase for 6.7 N.M
LXM15LD17N4, 480 V, trifase for 6.7 n.m
LXM15LD28M3, 230 V, Trifase for 7.8 N.M
LXM15MD28N4, 400 V, Trifase for 7.8 N.M
LXM15MD28N4, 480 V, Trifase for 7.8 N.M
LXM15MD40N4 for 7.8 N.M, 400 V, trifase
LXM15MD40N4 for 7.8 N.M, 480 V, trifase
LXM05AD34N4 for 7.8 N.M, 380 … 480 V, trifase
LXM05Ad42m3x for 7.8 N.M, 200 … 240 V, trifase
Hill stopping torque
:
LXM32.D30N4 for 28,3 N.M
LXM32.D30N4 for 28.3 N.M
19,69 LXM05Ad28m2 for N.M, 200 … 240 V, monophase
19,69 LXM05BD28m2 for N.M, 200 … 240 V, Monophase
LXM05CD28M2 for 19,69 N.M, 200 … 240 V, monophase
LXM15LD21M3 for 15.5 N.M, 230 V, trifase
LXM15LD17N4, 230 V, Trifase for 12.5 N.M
LXM15LD17N4, 400 V, Trifase for 12.5 N.M
LXM15LD17N4, 480 V, trifase for 12.5 n.m
19,69 LXM15LD28M3 for N.M3, 230 V, Trifase
19,69 LXM15MD28N4, 400 V, Trifase for N.M
19,69 LXM15MD28N4, 480 V, Trifase for N.M
LXM15MD40N4 for 23,17 N.M
LXM15MD40N4 for 23,17 N.M, 480 V, trifase
LXM05AD34N4, 380 … 480 V, trifase for 23,01 N.M
23,17 N.M LXM05Ad42M3X, 200 … 240 V, trifase
LXM05BD34N4, 380 … 480 V, trifase for 23.01 N.M
LXM05BD42M3X for 23,17 N.M, 200 … 240 V, trifase
LXM05CD34N4, 380 … 480 V, trifase for 23,01 N.M
LXM05CD42M3X for 23,17 N.M, 200 … 240 V, trifase
Nominal output power
:
LXM32.D30N4 for 2000 W, 10 A, 400 V, Trifase
LXM32.D30N4 for 2600 W, 10 A, 480 V, trifase
LXM05Ad28m2 for 1100 W, 200 … 240 V, monophase
LXM05BD28M2 for 1100 W, 200 … 240 V, monophase
LXM05CD28M2 for 1100 W, 200 … 240 V, monophase
LXM05Ad42m3x for 1100 W, 200 … 240 V, trifase
LXM05BD42M3X for 1100 W, 200 … 240 V, trifase
LXM05CD42M3X for 1100 W, 200 … 240 V, trifase
LXM15LD28M3 for 1300 W, 230 V, trifase
LXM15LD17N4, 230 V, Trifase for 1700 W
LXM15LD21M3 for 1700 W, 230 V, trifase
LXM05AD34N4, 380 … 480 V, trifase for 1800 W
LXM05BD34N4, 380 … 480 V, trifase for 1800 W
LXM05CD34N4, 380 … 480 V, trifase for 1800 W
LXM15MD28N4, 400 V, trifase for 2000 W
LXM15MD40N4 for 2000 W
LXM15LD17N4, 400 V, Trifase for 2200 W
LXM15MD28N4, 480 V, trifase for 2200 W
LXM15MD40N4 for 2200 W, 480 V, trifase
LXM15LD17N4 for 2300 W, 480 V, trifase
Nominal torque
:
LXM32.D30N4 for 6.3 N.M
LXM32.D30N4 for 6.3 N.M
LXM15LD17N4 for 3.7 N.M, 480 V, trifase
LXM05AD28M2 for 6,73 N.M, 200 … 240 V, monophase
LXM05BD28m2 for 6,73 N.M, 200 … 240 V, monophase
LXM05CD28M2, 200 … 240 V, Monophase for 6.73 N.M
LXM15MD28N4, 480 V, trifase for 4.6 n.m
LXM15MD40N4 for 4.6 N.M, 480 V, trifase
LXM15LD17N4 for 4.7 N.M, 400 V, trifase
LXM15MD28N4 for 5 N.M, 400 V, trifase
LXM15MD40N4 for 5 N.M, 400 V, trifase
LXM05AD34N4, 380 … 480 V, trifase for 5.7 n.m
LXM05BD34N4, 380 … 480 V, trifase for 5.7 n.m
LXM05CD34N4, 380 … 480 V, trifase for 5.7 n.m
6 N.M LXM15LD17N4, 230 V, Trifase
6 for N.M LXM15LD21M3, 230 V, Trifase
LXM15LD28M3, 230 V, Trifase for 6.3 N.M
LXM05Ad42m3x for 6,73 N.M, 200 … 240 V, trifase
LXM05BD42M3X for 6,73 N.M, 200 … 240 V, trifase
LXM05CD42M3X for 6,73 N.M, 200 … 240 V, trifase
Nominal speed
:
LXM32.D30N4 for 3000 rpm, 10 A, 400 V, trifase
LXM32.D30N4 for 4000 rpm, 10 A, 480 V, trifase
LXM15LD17N4, 400 V, Trifase for 4500 RPM
LXM15LD17N4, 480 V, trifase for 6000 rpm
LXM05AD28M2 for 1500 RPM, 200 … 240 V, monophase
LXM05BD28M2 for 1500 RPM, 200 … 240 V, monophase
LXM05CD28M2, 200 … 240 V, monophase for 1500 rpm
LXM05Ad42m3x for 1500 rpm, 200 … 240 V, trifase
LXM05BD42M3X for 1500 RPM, 200 … 240 V, trifase
LXM05CD42M3X for 1500 RPM, 200 … 240 V, trifase
LXM15LD28M3, 230 V, Trifase for 2000 RPM
LXM15LD17N4 for 2500 RPM, 230 V, trifase
LXM15LD21M3 for 2500 RPM, 230 V, trifase
LXM05AD34N4, 380 … 480 V, trifase for 3000 rpm
LXM05BD34N4, 380 … 480 V, trifase for 3000 rpm
LXM05CD34N4, 380 … 480 V, trifase for 3000 rpm
LXM15MD28N4, 400 V, trifase for 4000 rpm
LXM15MD40N4, 400 V, trifase for 4000 rpm
LXM15MD28N4 for 4500 RPM, 480 V, Trifase
LXM15MD40N4 for 4500 RPM, 480 V, trifase
Product compatibility
:
LXM05AD28M2 -200 … 240 V monophase
Lxm05bd28m2 -200 … 240 V monophase
LXM05CD28M2 -200 … 240 V monophase
LXM15LD21M3 230 V Trifase
LXM05AD42M3X 200 … 240 V Trifase
LXM05BD42M3X 200 … 240 V Trifase
LXM05CD42M3X 200 … 240 V Trifase
LXM15LD17N4 230 V Trifase
LXM15LD17N4 400 V Trifase
LXM15LD17N4 -480 V TRIFZE
LXM15LD28M3 230 V Trifase
LXM05Ad34N4 -380 … 480 V Trifase
LXM05BD34N4 -380 … 480 V Trifase
LXM05CD34N4 -380 … 480 V Trifase
LXM15MD28N4 -400 V Trifase
LXM15MD28N4 480 V Trifase
LXM15MD40N4 400 V Trifase
LXM15MD40N4 480 V Trifase
LXM32.D30N4 400 V Trifase
LXM32.D30N4 -480 V Trifase
Shaft tip
:
Locked
IP protection degree
:
IP50 Standard
Speed ​​back feeding resolution
:
131072 point turn
Assembly support
:
International standard flange
Electric connection
:
Rotable right -angle connectors
Complementary features
Serial compatibility
:
Lexium 15
Lexium 05
Lexium 32
Supply voltage max
:
480 V
Network Network of Phase
:
Trifase
Constant stop current
:
6.6 A
Maximum continuous power
:
3,14 W
Maximum current river
:
LXM15LD21M3 for 28.3 A
LXM15LD28M3 for 28.3 A
LXM15LD17N4 for 28.3 A
LXM15MD28N4 for 28.3 A
LXM15MD40N4 for 28.3
LXM05AD28M2 for 28.3 A
LXM05AD42M3X for 28.3 A
LXM05AD34N4 for 28.3
LXM05BD28M2 for 28.3 A
LXM05BD42M3X for 28.3 A
LXM05BD34N4 for 28.3
LXM05CD28M2 for 28.3
LXM05CD42M3X for 28.3 A
LXM05CD34N4 for 28.3
LXM32.D30N4 for 28.3
Maximum permanent current
:
28.3 A
Switching frequency
:
8 KHz
Second shaft
:
Without the second shaft tip
Shaft diameter
:
19 mm
Shaft length
:
40 mm
Switch width
:
30 mm
Back feeding type
:
Single Return Sincos Hyperface
Holding torque
:
9 N.M braking
Engine flange size
:
100 mm
NUMBER OF ENGINE
:
3
Torque constant
:
1,22 N.M A -DE 120 C
Reabsorial emf constant
:
77 V CRPM -120 C
Number of motor poles
:
8
Rotor
:
3,838 kg.cm²
Stator resistance
:
1,43 ohm -20 C
Stator inductance
:
8.8 mh -20 C
Stator electric time constant
:
20 C in 6,15 ms
Maximum radial power fr
:
1000 rpm per 1050 n
4000 rpm in 660 n
3000 rpm at 730 n
2000 rpm at 830 n
Maximum Axial Power FA
:
0.2 x Fr
Brake
:
18 W
Type of cooling
:
Natural convection
Length
:
271.5 mm
Average bracelet diameter
:
95 mm
Average bracelet depth
:
3.5 mm
Number of assembly holes
:
4
Assembly hole diameter
:
9 mm
Circular Diameter of the Mounting Hole
:
115 mm
Product weight
:
8 kg
