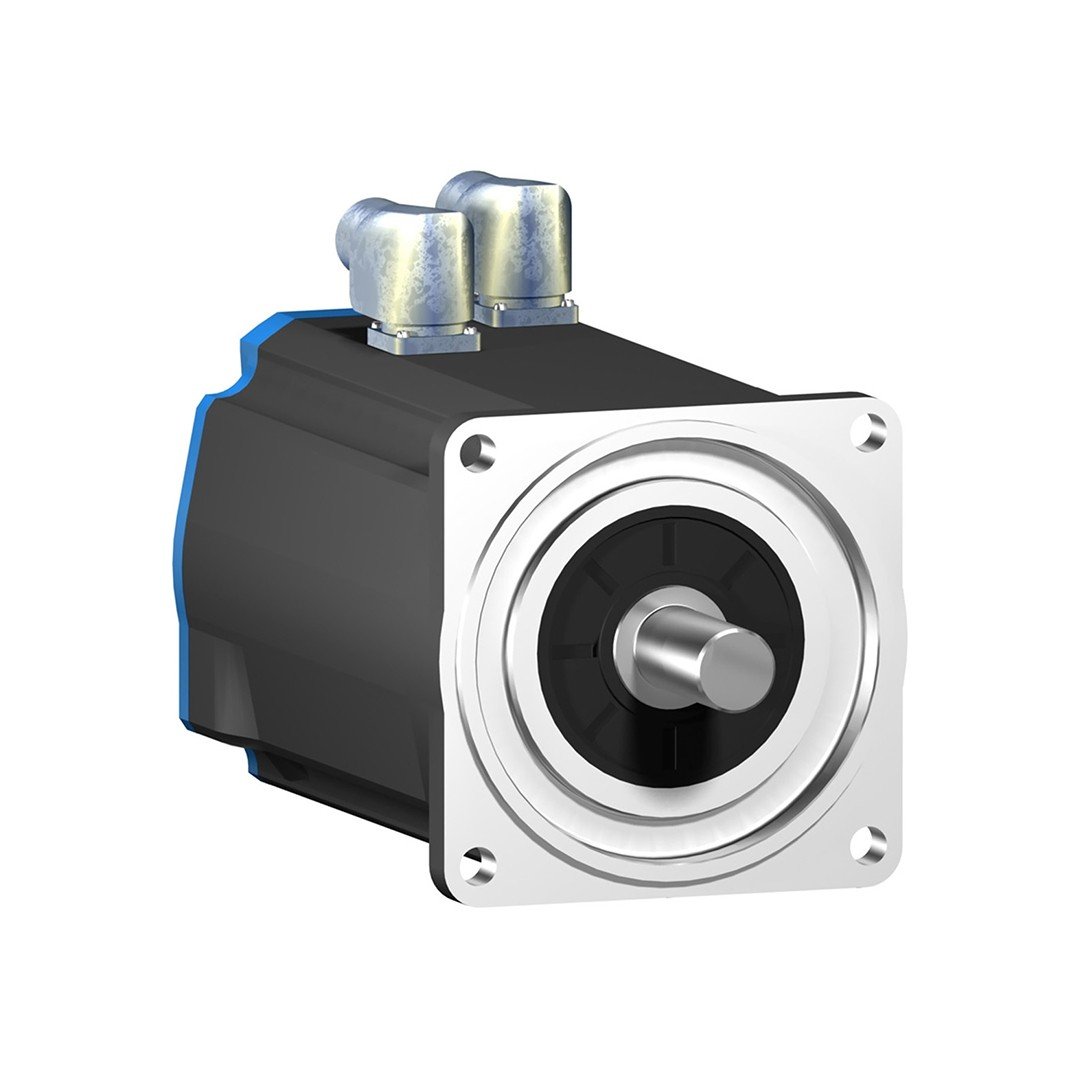

Schneider BSH1402P11F2A BSH AC IP50 HOLDER WITHOUT BRAIN BRAKED BRAKE Servo Motor

Product or component type
:
Servo-motor
Product group
:
BSH
Maximum mechanical speed
:
4000 RPM
Constantly standing torque
:
LXM15MD40N4, 400 V, Trifase for 19.5 N.M
LXM15MD40N4, 480 V, Trifase for 19.5 N.M
LXM15LD28M3, 230 V, Trifase for 14.9 N.M
LXM15MD28N4, 230 V, Trifase for 14.9 N.M
LXM15MD28N4, 400 V, trifase for 14.9 n.m
LXM15MD28N4, 480 V, trifase for 14.9 n.m
LXM15MD40N4, 230 V, Trifase for 19.5 N.M
LXM15MD56N4, 230 V, Trifase for 19.5 N.M
LXM15MD56N4, 400 V, Trifase for 19.5 N.M
LXM15MD56N4, 480 V, trifase for 19.5 n.m
LXM05Ad42m3x for 19,2 N.M, 200 … 240 V, trifase
LXM057N4 for 19,2 N.M, 380 … 480 V, trifase
LXM05BD42M3X for 19,2 N.M, 200 … 240 V, trifase
19,2 LXM05BD57N4 for N.M, 380 … 480 V, trifsease
LXM05CD42M3X for 19,2 N.M, 200 … 240 V, trifase
LXM05CD57N4 for 19,2 N.M, 380 … 480 V, trifase
Hill stopping torque
:
LXM15LD28M3, 230 V, Trifase for 28,71 N.M
LXM15MD28N4, 230 V, Trifase for 28,71 N.M
LXM15MD28N4, 400 V, trifase for 28,71 N.M
LXM15MD28N4, 480 V, trifase for 28,71 N.M
39,3 LXM15MD40N4, 230 V, trifase for N.M
LXM15MD40N4, 400 V, Trifase for 39,3 N.M
LXM15MD40N4 for 39,3 N.M, 480 V, trifase
LXM15MD56N4, 230 V, trifase for 47.5 n.m
LXM15MD56N4, 400 V, trifase for 47.5 n.m
LXM15MD56N4, 480 V, trifase for 47.5 n.m
LXM05AD42M3X for 41,94 N.M, 200 … 240 V, trifase
LXM05D57N4 for 47,5 N.M, 380 … 480 V, trifase
LXM05BD42M3X for 41,94 N.M, 200 … 240 V, trifase
LXM05BD57N4 for 47.5 N.M, 380 … 480 V, trifsease
LXM05CD42M3X for 41,94 N.M, 200 … 240 V, trifase
LXM05CD57N4 for 47,5 N.M, 380 … 480 V, trifase
Nominal output power
:
LXM05Ad42m3x for 2350 W, 200 … 240 V, trifase
LXM05BD42M3X for 2350 W, 200 … 240 V, trifase
LXM05CD42M3X for 2350 W, 200 … 240 V, trifase
LXM15LD28M3, 230 V, Trifase for 2350 W
LXM15MD28N4, 230 V, Trifase for 2350 W
LXM15MD40N4 for 2350 W, 230 V, trifase
LXM15MD56N4, 230 V, trifase for 2350 W
LXM15MD28N4, 480 V, trifase for 3350 W
LXM15MD40N4 for 3350 W, 480 V, trifase
LXM05AD57N4 for 3400 W, 380 … 480 V, trifase
LXM05BD57N4 for 3400 W, 380 … 480 V, trifase
LXM05CD57N4 for 3400 W, 380 … 480 V, trifase
LXM15MD28N4, 400 V, Trifase for 3400 W
LXM15MD40N4, 400 V, Trifase for 3400 W
LXM15MD56N4, 400 V, trifase for 3400 W
LXM15MD56N4, 480 V, trifase for 3400 W
Nominal torque
:
8 N.M LXM15MD40N4, 480 V, Trifase
LXM05D57N4 for 10.8 N.M, 380 … 480 V, trifase
LXM05BD57N4 for 10.8 N.M, 380 … 480 V, trifase
LXM05CD57N4 for 10.8 N.M, 380 … 480 V, trifase
LXM15MD28N4, 400 V, trifase for 10.8 n.m
LXM15MD40N4 for 10.8 N.M, 400 V, trifase
LXM15MD56N4, 400 V, trifase for 10.8 n.m
LXM15MD56N4, 480 V, trifase for 10.8 n.m
LXM05Ad42m3x for 15 N.M, 200 … 240 V, trifase
LXM05BD42M3X for 15 N.M, 200 … 240 V, trifase
LXM05CD42M3X for 15 N.M, 200 … 240 V, trifase
15 N.M LXM15LD28M3, 230 V, Trifase
LXM15MD28N4, 230 V, Trifase for 15 N.M
LXM15MD40N4 for 15 N.M, 230 V, trifase
15 N.M LXM15MD56N4, 230 V, Trifase
8 N.M LXM15MD28N4, 480 V, Trifase
Nominal speed
:
LXM05Ad42m3x for 1500 rpm, 200 … 240 V, trifase
LXM05BD42M3X for 1500 RPM, 200 … 240 V, trifase
LXM05CD42M3X for 1500 RPM, 200 … 240 V, trifase
LXM15MD28N4, 230 V, Trifase for 1500 RPM
LXM15MD40N4 for 1500 RPM, 230 V, Trifase
LXM05D57N4, 380 … 480 V, trifase for 3000 rpm
LXM05BD57N4 for 3000 RPM, 380 … 480 V, trifase
LXM05CD57N4, 380 … 480 V, trifase for 3000 rpm
LXM15MD28N4, 400 V, trifase for 3000 rpm
LXM15MD40N4, 400 V, trifase for 3000 rpm
LXM15MD28N4, 480 V, trifase for 4000 rpm
LXM15LD28M3, 230 V, Trifase for 1500 RPM
LXM15MD56N4, 230 V, trifase for 1500 rpm
LXM15MD56N4, 400 V, trifase for 3000 rpm
LXM15MD56N4, 480 V, trifase for 3000 rpm
LXM15MD40N4 for 4000 RPM, 480 V, Trifase
Product compatibility
:
LXM05AD42M3X 200 … 240 V Trifase
LXM05BD42M3X 200 … 240 V Trifase
LXM05CD42M3X 200 … 240 V Trifase
LXM15LD28M3 230 V Trifase
LXM15MD28N4 -400 V Trifase
LXM15MD28N4 480 V Trifase
LXM15MD40N4 400 V Trifase
LXM15MD40N4 480 V Trifase
LXM05AD57N4 -380 … 480 V Trifa ze
LXM05BD57N4 -380 … 480 V Trifase
LXM05CD57N4 -380 … 480 V Trifase
LXM15MD28N4 230 V Trifase
LXM15MD40N4 230 V Trifase
LXM15MD56N4 230 V Trifase
LXM15MD56N4 -400 V Trifase
LXM15MD56N4 -480 V Trifase
Shaft tip
:
Imperforate
IP protection degree
:
IP50 Standard
Speed ​​back feeding resolution
:
131072 point turn
Assembly support
:
International standard flange
Electric connection
:
Rotable right -angle connectors
Complementary features
Serial compatibility
:
Lexium 05
Lexium 15
Supply voltage max
:
480 V
Network Network of Phase
:
Trifase
Constant stop current
:
13.2 A
Maximum continuous power
:
4.2 W
Maximum current river
:
LXM15LD28M3 for 44.1 A
LXM15MD28N4 for 44.1 A
LXM15MD40N4 for 44.1 A
LXM15MD56N4 for 44.1 A
LXM05AD42M3X for 44.1 A
LXM05AD57N4 for 44.1 A
LXM05BD42M3X for 44.1 A
LXM05BD57N4 for 44.1 A
LXM05CD42M3X for 44.1 A
LXM05CD57N4 for 44.1 A
LXM32.D72N4 for 72 A
Maximum permanent current
:
44,1 A
Switching frequency
:
4 KHz
Second shaft
:
Without the second shaft tip
Shaft diameter
:
24 mm
Shaft length
:
50 mm
Back feeding type
:
Single Return Sincos Hyperface
Holding torque
:
23 N.M braking
Engine flange size
:
140 mm
NUMBER OF ENGINE
:
2
Torque constant
:
1,47 N.M A -DE 120 C
Reabsorial emf constant
:
101 V Krpm -120 C
Number of motor poles
:
10
Rotor
:
14,48 kg.cm²
Stator resistance
:
0.6 ohm -20 C
Stator inductance
:
20 C in 7.4 MH
Stator electric time constant
:
20 C in 12.33 ms
Maximum radial power fr
:
3000 rpm in 1680 n
2000 rpm in 1930 n
1000 rpm per 2430 n
Maximum Axial Power FA
:
0.2 x Fr
Brake
:
24 W
Type of cooling
:
Natural convection
Length
:
310.5 mm
Average bracelet diameter
:
130 mm
Average bracelet depth
:
3.5 mm
Number of assembly holes
:
4
Assembly hole diameter
:
11 mm
Circular Diameter of the Mounting Hole
:
165 mm
Product weight
:
17.7 kg
