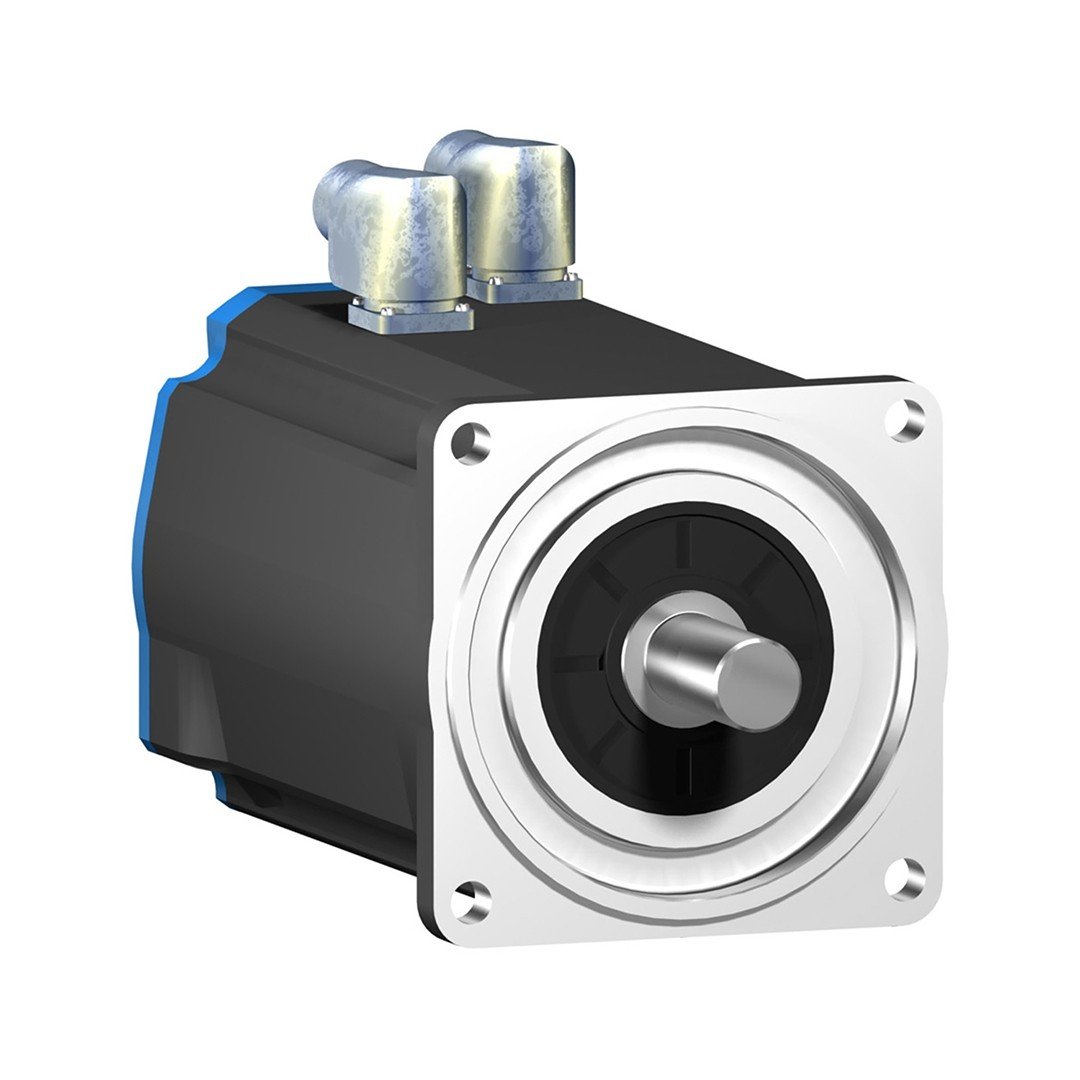

Schneider BSH1404P11F2P BSH AC IP50 Locked shaft brake servo motor

Product or component type
:
Servo-motor
Product group
:
BSH
Maximum mechanical speed
:
4000 RPM
Constantly standing torque
:
33,4 LXM32.D72N4 for N.M 24 A, 400 V, Trifase
33,4 N.M LXM32.D72N4 -24 A, 480 V, Trifase
32.1 N.M LXM05D57N4, 380 … 480 V, Trifase
LXM05BD57N4 for 32.1 N.M, 380 … 480 V, trifase
LXM05CD57N4 for 32.1 N.M, 380 … 480 V, trifase
Hill stopping torque
:
LXM32.D72N4 for 103,6 N.M
LXM32.D72N4 for 103,6 N.M
63,09 N.M LXM05D57N4, 380 … 480 V, Trifase
LXM05BD57N4 for 63,09 N.M, 380 … 480 V, trifase
LXM05CD57N4 for 63,09 N.M, 380 … 480 V, trifase
Nominal output power
:
LXM32.D72N4 for 5000 W, 24 A, 400 V, trifase
LXM32.D72N4 for 5000 W, 24 A, 480 V, trifase
LXM05AD57N4 for 3400 W, 380 … 480 V, trifase
LXM05BD57N4 for 3400 W, 380 … 480 V, trifase
LXM05CD57N4 for 3400 W, 380 … 480 V, trifase
Nominal torque
:
19 A, 400 V, trifsease in LXM32.D72N4 for 19 N.M
19 N.M for LXM32.D72N4 24 A, 480 V, Trifase
LXM05D57N4 for 10.8 N.M, 380 … 480 V, trifase
LXM05BD57N4 for 10.8 N.M, 380 … 480 V, trifase
LXM05CD57N4 for 10.8 N.M, 380 … 480 V, trifase
Nominal speed
:
LXM32.D72N4 for 2500 rpm, 24 A, 400 V, trifase
LXM32.D72N4 for 2500 rpm, 24 A, 480 V, trifase
LXM05D57N4, 380 … 480 V, trifase for 3000 rpm
LXM05BD57N4 for 3000 RPM, 380 … 480 V, trifase
LXM05CD57N4, 380 … 480 V, trifase for 3000 rpm
Product compatibility
:
LXM05AD57N4 -380 … 480 V Trifase
LXM05BD57N4 -380 … 480 V Trifase
LXM05CD57N4 -380 … 480 V Trifase
LXM32.D72N4 -400 V Trifase
LXM32.d72N4 -480 V Trifase
Shaft tip
:
Locked
IP protection degree
:
IP50 Standard
Speed ​​back feeding resolution
:
131072 Dots/Return
Assembly support
:
International standard flange
Electric connection
:
Rotable right -angle connectors
Complementary features
Serial compatibility
:
Lexium 05
Lexium 32
Supply voltage max
:
480 V
Network Network of Phase
:
Trifase
Constant stop current
:
21.3 A
Maximum continuous power
:
4,33 W
Maximum current river
:
LXM32.D72N4 for 72 A
LXM05AD57N4 for 95.6 A
LXM05BD57N4 for 95.6 A
LXM05CD57N4 for 95.6
Maximum permanent current
:
95.6 A
Switching frequency
:
8 KHz
Second shaft
:
Without the second shaft tip
Shaft diameter
:
24 mm
Shaft length
:
50 mm
Switch width
:
40 mm
Back feeding type
:
Single Return Sincos Hyperface
Holding torque
:
36 N.M braking
Engine flange size
:
140 mm
NUMBER OF ENGINE
:
4
Torque constant
:
1,57 n.m/a -de 120 ° C
Reabsorial emf constant
:
120 ° C per 104 V/Krpm
Number of motor poles
:
10
Rotor
:
29.2 kg.cm²
Stator resistance
:
20 ° C per 0.28 ohm
Stator inductance
:
20 ° C per 3.9 MH
Stator electric time constant
:
20 ° C per 13.93 ms
Maximum radial power fr
:
3000 rpm in 1840 n
2000 rpm at 2110 n
1000 rpm per 2660 n
Maximum Axial Power FA
:
0.2 x Fr
Brake
:
26 W
Type of cooling
:
Natural convection
Length
:
420.5 mm
Average bracelet diameter
:
130 mm
Average bracelet depth
:
3.5 mm
Number of assembly holes
:
4
Assembly hole diameter
:
11 mm
Circular Diameter of the Mounting Hole
:
165 mm
Product weight
:
27.8 kg
