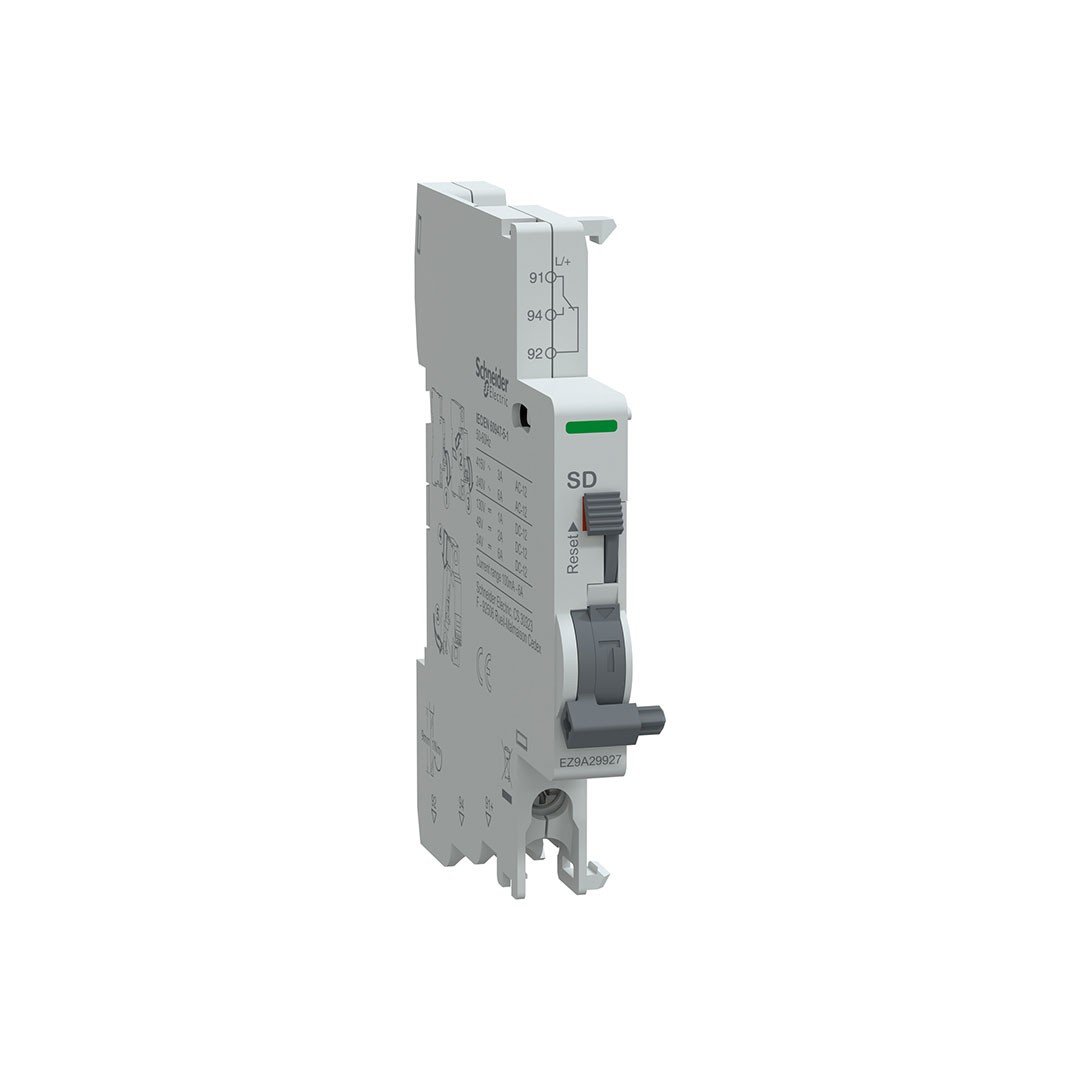

Schneider ez9a29927 Easy 9 Pro K SD 1ak AC/DC Auxiliary Contact

RANGE OF PRODUCT EASY9 PRO
Product or component type error contact
Product Group SD
Regulation of signal contacts 1 k/a
[In] Nominal Current 0.1… 6 A at 24 … 240 V, AC 50/60 Hz
0.1… 6 a horse 24 … 250 V, AC 50/60 Hz
0.1… 6 A AT 24 V, DC
0.1… 2 a horse 48 V, DC
0.1… 1.5 A horse 60 V, DC
0.1… 1 a horse 110 V, DC
0.1… 1 A at 130 V, DC
0.1… 3 a horse 277 V, AC 50/60 Hz
0.1… 3 a horse 415 V, AC 50/60 Hz
9 mm screw step 1
Standards IEC/EN 60947-5-1
Product Certificates CE
[Ui] Nominal Insulation Voltage 500 V
[UIMP] Nominal impact resistance voltage 4 kV
Signaling on the device mechanical indicator
Assembly type can be installed
Assembly location Left Side Of Circuit-Breaker
Assembly support DIN RAYA
Comb Busbar Distribution Bloc Compatibility Top: Yes
Height 85 mm
Width 9 mm
Depth 74 mm
Product weight 37.3 g
color gray
Connections – Terminals Screw Clamp Terminal (Alt) 1 cable (s) 2.5 mm² – hard
Screw Clamp Terminal (Alt) 2 cables (s) 1.5 mm² – hard
Wire stripping length 9 mm
Squeezing torque 1 N.M subtitle
